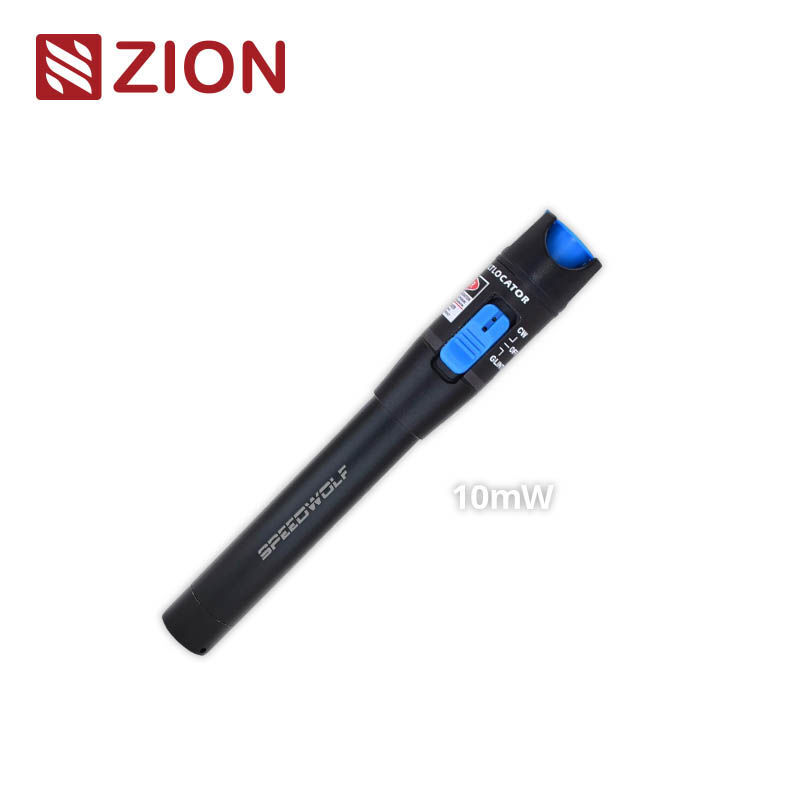

High-Power 10mW Fiber Visual Fault Locator VFL with 10 km Test Distance

High-Power 10mW Fiber Visual Fault Locator VFL with 10 km Test Distance
High-Power 10mW Fiber Visual Fault Locator VFL with 10 km Test Distance
Basic Information
Place of Origin: NINGBO CHINA
Brand Name: OEM
Model Number: Fiber Optic Tool Kits
Minimum Order Quantity: 10 boxes
Packaging Details: 1pcs/box
Delivery Time: 5-25 Days
Get Best Price Contact Now
Detail Information
Highlight:

High-Power Fiber Visual Fault Locator

,

10mW VFL

,

10 km Fiber Fault Locator

Product Description

■ Fiber Visual Fault Locator (VFL)

High-Power Version

ZION Model Code: ZC-VFL-10

Product Overview

ZION Fiber Visual Fault Locators provide fast and visible identification of fiber breaks, bends, poor splices, and connector faults.
Featuring an imported laser diode and aluminum alloy housing, they ensure stability and durability in field environments.

  • Imported laser head with high thermal conductivity

  • Rugged aluminum alloy enclosure

  • Replaceable ceramic ferrule

  • Continuous and 2 Hz modulation modes

Technical Specifications

Parameter Specification
Output Power 10 mW
Test Distance Up to 10 km
Wavelength 650 nm
Modulation 2 Hz
Connector Universal 2.5 mm
Laser Type LD
Battery 2 × AA
Working Temp. 0 °C ~ +60 °C
Storage Temp. –20 °C ~ +70 °C
Weight 85 g
Dimensions 175 × 26 × 26 mm
