Low-Power 1mW Fiber Visual Fault Locator VFL for FTTH Fiber Fault Detection

Basic Information

Place of Origin:	NINGBO CHINA
Brand Name:	OEM
Model Number:	Fiber Optic Tool Kits

Minimum Order Quantity:	10 boxes
Packaging Details:	1pcs/box
Delivery Time:	5-25 Days

Get Best Price Contact Now

Detail Information

Highlight:

1mW Fiber Visual Fault Locator

Low-Power VFL

FTTH Fiber Fault Locator

Product Description

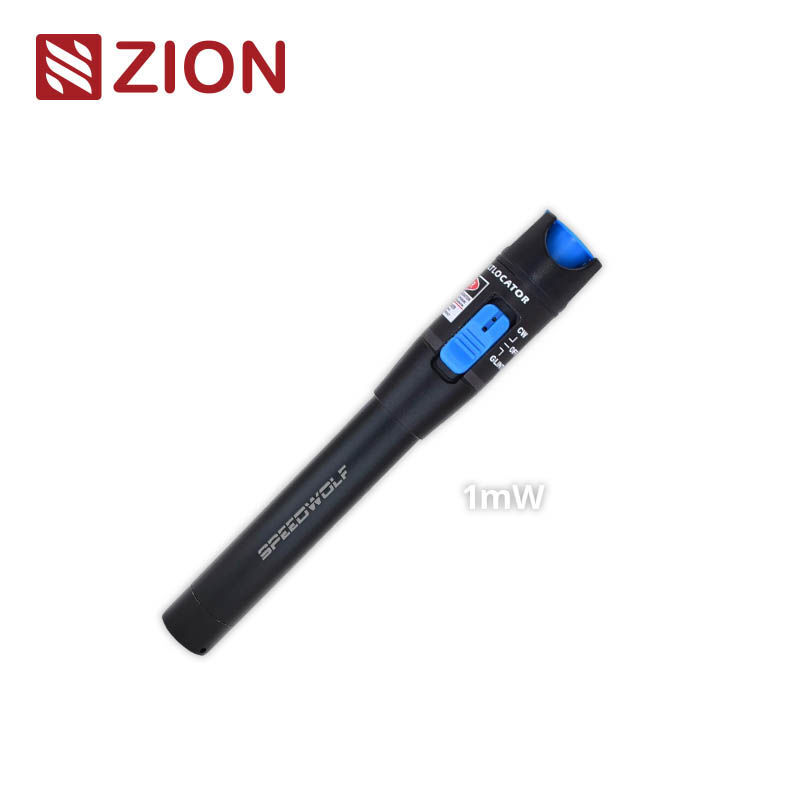

■ Fiber Visual Fault Locator (VFL)

Low-Power Version

ZION Model Code: ZC-VFL-1

Product Overview

ZION Fiber Visual Fault Locators provide fast and visible identification of fiber breaks, bends, poor splices, and connector faults.
Featuring an imported laser diode and aluminum alloy housing, they ensure stability and durability in field environments.

Imported laser head with high thermal conductivity
Rugged aluminum alloy enclosure
Replaceable ceramic ferrule
Continuous and 2 Hz modulation modes

Technical Specifications

Parameter	Specification
Output Power	1 mW
Test Distance	3–5 km
Wavelength	650 nm
Modulation	2 Hz
Connector	Universal 2.5 mm
Laser Type	LD
Battery	2 × AA
Working Temp.	0 °C ~ +60 °C
Storage Temp.	–20 °C ~ +70 °C
Weight	85 g
Dimensions	175 × 26 × 26 mm
