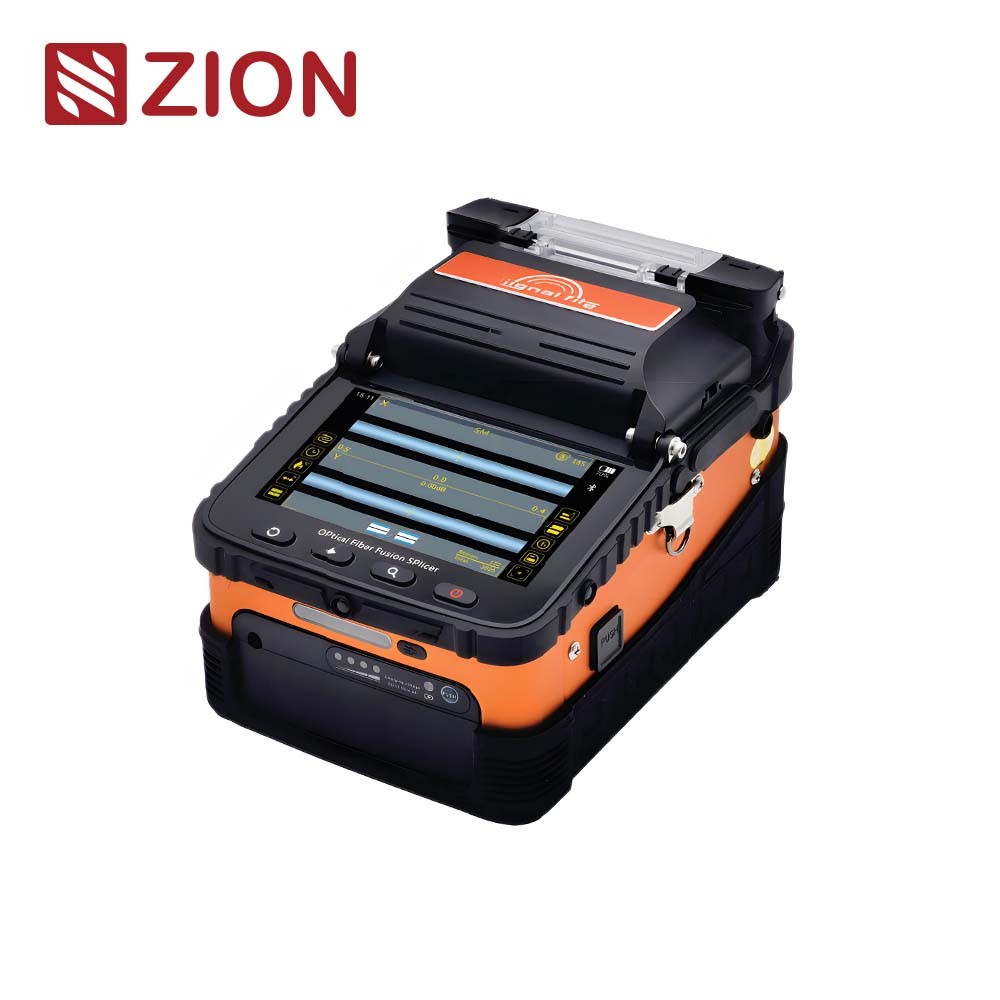

ZCFFSAI-6C 6-Motor Core Alignment Fiber Fusion Splicer

Professional-Grade Solution for FTTH/FTTx & CATV Projects

Key Features

✅ 6-Motor Precision Alignment System

• Achieves ultra-precise 0.35μm core alignment accuracy
• Dual-axis display (320x/160x magnification) for perfect visual control

✅ Lightning-Fast Operation

• 8-second splicing & 18-second heating cycle (environment adaptive)
• 50% efficiency improvement vs conventional splicers

✅ All-Fiber Compatibility

• Handles SMF(G.652), BIF(G.657), MM, bare fibers & drop cables
• Universal 3-in-1 holder: No tool change required

✅ Industrial-Grade Performance

• IP54 protection rating (dust/water resistant)
• Operates in extreme conditions (-15℃~50℃ / ≤5000m altitude)

Technical Specifications

Smart Management Ecosystem

�� Mobile APP Control

• Real-time monitoring of splice loss & operation records
• Remote firmware updates via Bluetooth 4.2 (60m range)

⚙️ Advanced Safety Features

• Automatic arc calibration & tensile strength test (2N standard)
• Usage tracking with customizable maintenance alerts

What’s Included

• Main splicer unit with 5″ touchscreen
• Universal fiber holder & cleaning tools
• AC adapter & USB-C charging cable
• Waterproof carrying case (IP54 certified)

Ideal For

�� Telecommunications engineers
�� CATV network installers
�� Data center maintenance teams
�� Emergency fiber repair services

Why Choose ZCFFSAI-6C?

• Military-Grade Durability – Survives 1.5m drops & 15m/s wind exposure
• Future-Proof Design – Software upgradable via mobile APP
• All-Day Productivity – 3.5hr quick charge & LED worklight for night operations

Compliant with IEC 61755-3 standards | 12-month warranty with technical support

Intelligent Manufacturing

An effective balance between quality and cost-effectiveness

3 in 1fiber holder

SM, MM, bare fiber, pigtail, Drop cable, multi-fiber cable

5200mAh lithium battery

Charging time ≤3.0 hours;
In full state, 160 cores can be continuously fused and heated

Random Configuration

❶ Toolkit ❷ Main engine ❸ S07 Fiber Cleaver ❹ Alcohol Bottle ❺ Wire stripping pliers
❻ Miller stripper ❼ Belt ❽ Toolbox strap ❾ Power Adapter ❿ Fiber for ARC
calibration/User’s manual/Quality Certificate/Warranty Card

Size and weight

Machine weight
2.1kg (with battery)
1.68kg (without battery)

Toolkit weight
4.70kg (including machine and accessories)

Total weight
5.50kg
