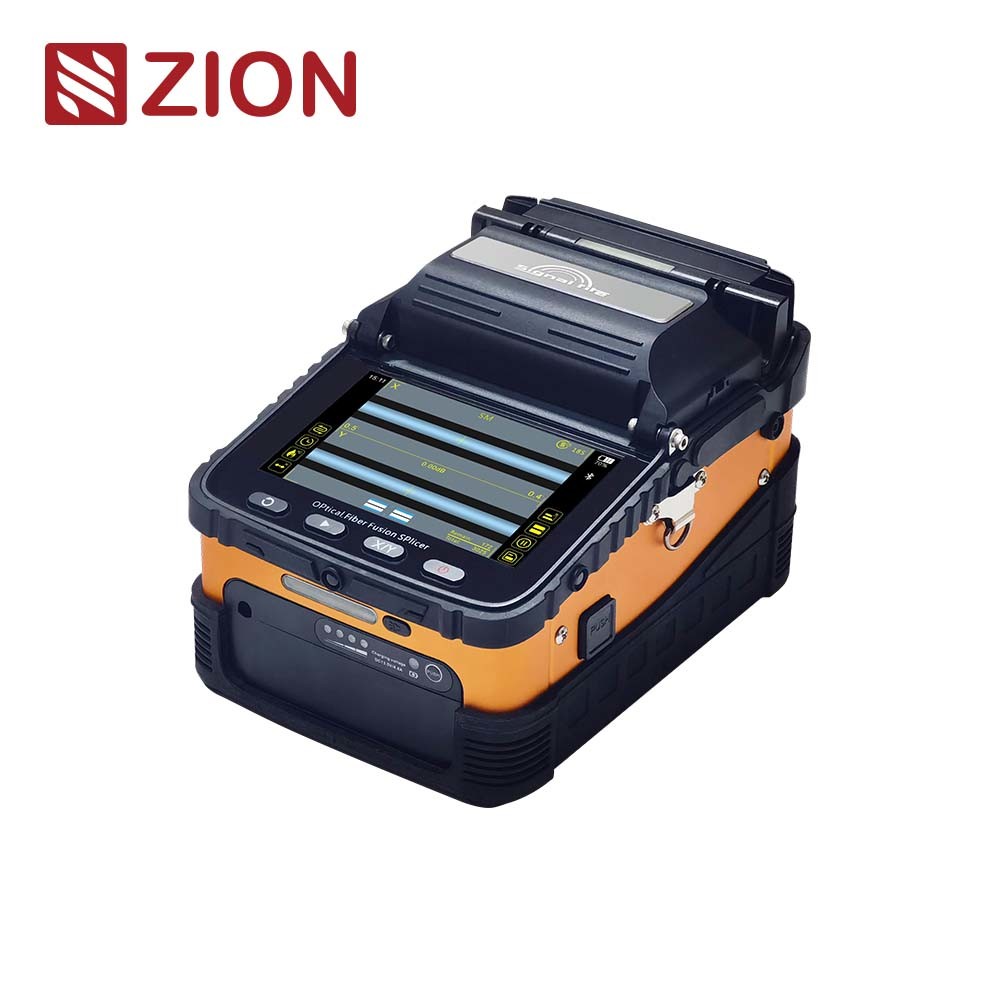

ZCFFSAI-5 Fiber Fusion Splicer

Product Overview
The ZCFFSAI-5 Fusion Splicer is a high performance, portable solution designed for precision fiber optic splicing across diverse engineering projects. Equipped with advanced automation and robust features, it ensures efficiency, reliability, and ease of use in demanding environments.

Key Specifications

• Fiber Alignment: Core/cladding alignment with 0.1μm accuracy (4-motor system).
• Splicing Time: 8 seconds (fast) | Heating Time: 18 seconds (adjustable based on environment).
• Fiber Compatibility:
  • Single-mode (SMF/G.652, BIF/G.657), multi-mode, bare fiber, tail fiber, drop cable, jumper, and invisible fiber.
  • Cladding Diameter: 80–150 μm | Coating Diameter: 100–1000 μm.
• Splicing Performance:
  • Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS).
  • Tensile Strength: 2N standard.
• Display & Magnification:
  • 5-inch TFT color touch screen.
  • 320x (single-axis) or 160x (dual-axis) magnification.
• Battery & Power:
  • 5200mAh lithium battery: Supports ~160 splicing/heating cycles per charge.
  • Charging: ≤3.5 hours | AC input (100–240V) or DC operation.
• Environmental Resilience:
  • Temperature: -15°C to +50°C | Humidity: <95% RH | Altitude: 0–5000m | Wind Resistance: ≤15m/s.
  • Waterproof, dustproof, and shockproof design.

Product Highlights

• Speed & Precision:
  • 8-second splicing and 18-second heating cycles boost efficiency by 50% vs. conventional machines.
  • Automatic core alignment and real-time ARC calibration ensure consistent results.
• Portability & Convenience:
  • Compact, lightweight design with built-in illumination for night operations.
  • USB Type-A port for charging mobile devices and external LED lights.
• Smart Management:
  • Bluetooth 4.2 connectivity (60m range) for wireless data transfer and remote monitoring via mobile app.
  • Unlimited data storage (1000 groups locally; cloud/server backup).
• Versatile Applications:
  • Ideal for FTTx, FTTH, CATV, security monitoring, and emergency repairs.
  • Supports bare fiber, pigtails, drop cables, SOC, and more.

Included Features

• Three-in-one universal fiber holder (no tool changes required).
• Adjustable heat shrink tubes (25–60mm lengths).
• Automatic/semi-automatic splicing modes with high-precision welding.
• Software upgrades via mobile app and Bluetooth synchronization.

Why Choose ZCFFSAI-5?
Engineered for professionals, this fusion splicer combines cutting-edge technology with rugged durability. Its rapid operation, extended battery life, and intuitive 5-inch interface make it the ultimate tool for high-efficiency field work. Perfect for telecom, network installers, and industrial projects requiring flawless fiber connectivity.

Intelligent Manufacturing

An effective balance between quality and cost-effectiveness

3 in 1fiber holder

SM, MM, bare fiber, pigtail, Drop cable, multi-fiber cable

5200mAh lithium battery

Charging time ≤3.0 hours;
In full state, 160 cores can be continuously fused and heated

Random Configuration

❶ Toolkit ❷ Main engine ❸ S07 Fiber Cleaver ❹ Alcohol Bottle ❺ Wire stripping pliers
❻ Miller stripper ❼ Belt ❽ Toolbox strap ❾ Power Adapter ❿ Fiber for ARC
calibration/User’s manual/Quality Certificate/Warranty Card

Size and weight

Machine weight
2.05kg (with battery)
1.68kg (without battery)

Toolkit weight
3.50kg (including machine and accessories)

Total weight
4.05kg
