| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Mating Durability（cycle）: | ≥1000 | Max Optical Input Power(mw): | 200 |
|---|---|---|---|
| Attenuation Tolerance(dB): | 2 To 10dB: +/- 1 DB &11 To 20 DB: +/- 10% DB | Vibration Hz(2hr): | 10～55 |
| Operating Temperature (℃）: | -5 ~ +85 | Storage Temperature (℃）: | -40 ~ +75 |
| High Light: | 24F MPO Attenuator,MPO Fiber Attenuator,MPO Fiber Optical Attenuator |
||
1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss OPTIC ATTENUATOR
| Zion Code | Zion Description | |||||||

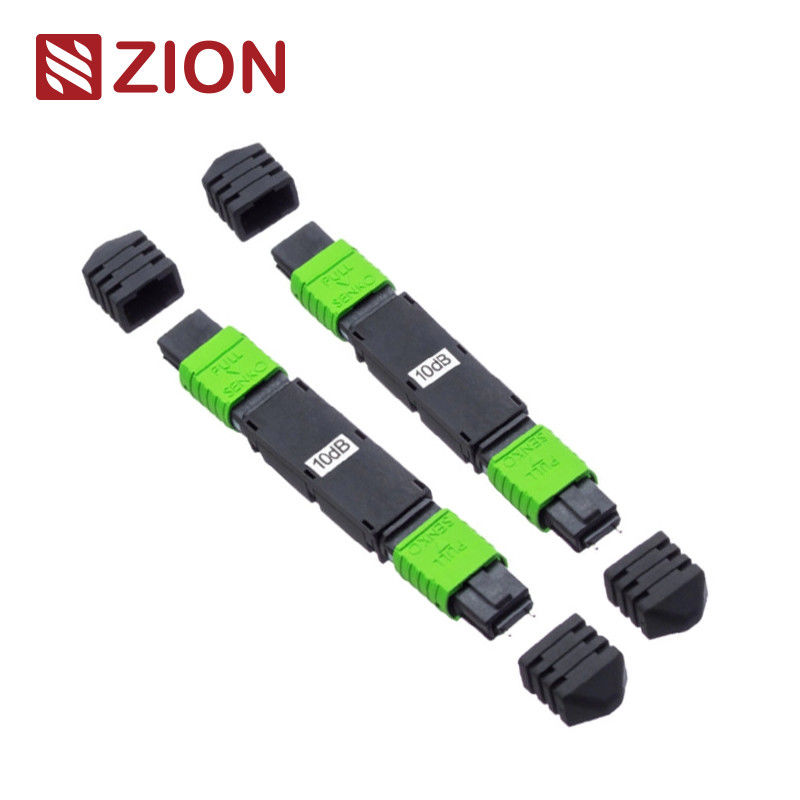

| 7236015 | 24F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |||||||
| Female to male Fixed attenuators from OMC offer defined control of optical signals in both integrated and add-on products. Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requirement. These precise attenuation levels provide for highly accurate performance. | ||||||||
Features
| Consistent attenuation for each fiber channel | ||||||||
| Standard MPO (Male) to MPO/(Female) , easy in-line installation. | ||||||||
| Low back reflection, insertion loss | ||||||||
| Low polarization dependent loss (PDL) | ||||||||
| Stable attenuation, highly Reliable | ||||||||
| Environmentally stable | ||||||||
| Contaminant and scratch free ferrule Multimode attenuators available upon | ||||||||
| request Available attenuation from 1 dB to 20 dB 100% tested in factory |
Attenuator Application:
ZION COMMUNICATIONS’ Fiber Optic Attenuator is a kind of optical device that can reduce the energy of optical signal. It is used to attenuate the input optical power and avoid the distortion caused by the optical receiver due to the super strong input optical power.Fiber Optic Attenuator, as a kind of optical passive device, is used for debugging optical power performance, debugging and calibration of optical fiber instrument in optical communication system, and optical fiber signal attenuation. The product is made of attenuating fiber doped with metal ions, which can adjust the optical power to the required level.Mainly used in: 1.CWDM&DWDM,2. data center networks,3. CATV systems,4.Test Equipment 5.40G/100G Installations |
||||||||
| Connector Type | MPO | |||||||
|
MPO Attenuator is a passive component designed to evenly reduce the power of an optical signal for each fiber channel in the MPO connector without changing the signal’s fundamental form. This attenuator is ideal for 40/100G applications, parallel optical transmission and other high density applications that use MPO connectors. The MPO Attenuator can significantly simplify network design, improve installation efficiency and save space. |
|||||||
Certification and Compliance
| GR-326-CORE : Generic Requirements for Single Mode Optical Connectors and Jumper Assemblies | ||||||||
| GR-910-CORE :Generic Requirements for Fiber Optic Attenuators. | ||||||||
| GR-63-CORE :Network Equipment – Building System Generic Requirements: Physical Protection. | ||||||||
| ASTM B117 :Standard Practice for Operating Salt Spray (Fog) Apparatus. | ||||||||
| TIA-604 :Standard Test Procedure for Fiber Optic Components. | ||||||||
| TIA-455 series :Standard Test Procedure for Fiber Optic Components. | ||||||||
| IEC 60874-1 :Connectors for Optical Fibers and Cables, Generic Standard. | ||||||||
| IEC 61300 series:Fiber Optic Interconnecting Devices and Passive Components, Basic Test and Measurement Procedures. | ||||||||
| RoHS: Directive on Restriction of Hazardous Substances. |
Characteristics:
| Parameter | MPO | |||||||
| Operating Wavelength(nm) | 1310&1550 | |||||||
| Attenuation(dB) | 1 to 20 | |||||||
| Fiber type | 8.3/125µm OS2 Single mode | |||||||
| Mating Durability(cycle) | ≥1000 | |||||||
| Max Optical Input Power(mw) | 200 | |||||||
| Attenuation Tolerance(dB) | 2 to 10dB: +/- 1 dB &11 to 20 dB: +/- 10% dB | |||||||
| Vibration hz(2hr) | 10～55 | |||||||
| Operating Temperature (℃) | -5 ~ +85 | |||||||
| Storage Temperature (℃) | -40 ~ +75 | |||||||
Named Rule
Packaging
| This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized. | ||||||||
OEM/ODM service for you
| OMC’s LC Female to LC male Fixed attenuator are available for SM UPC (1-25dB) and SM APC (1-25dB) |
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. |
| • Customized Logo | |||||||
| • Label/PE bag/Carton design |
 |
7237015, ZC11FXOODXX | 24F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |
 |
7237014, ZC11FXNNDXX | 12F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |
 |
7237013, ZC12FXMMDXX | 8F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |
 |
7237012, ZC11FXLLDXX | E2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237011, ZC11FXKKDXX | E2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237010, ZC12FXJJDXX | MU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237009, ZC11FXIIDXX | MU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237008, ZC11FXHHDXX | FC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237007, ZC11FXGGDXX | FC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237006, ZC11FXFFDXX | ST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) |
