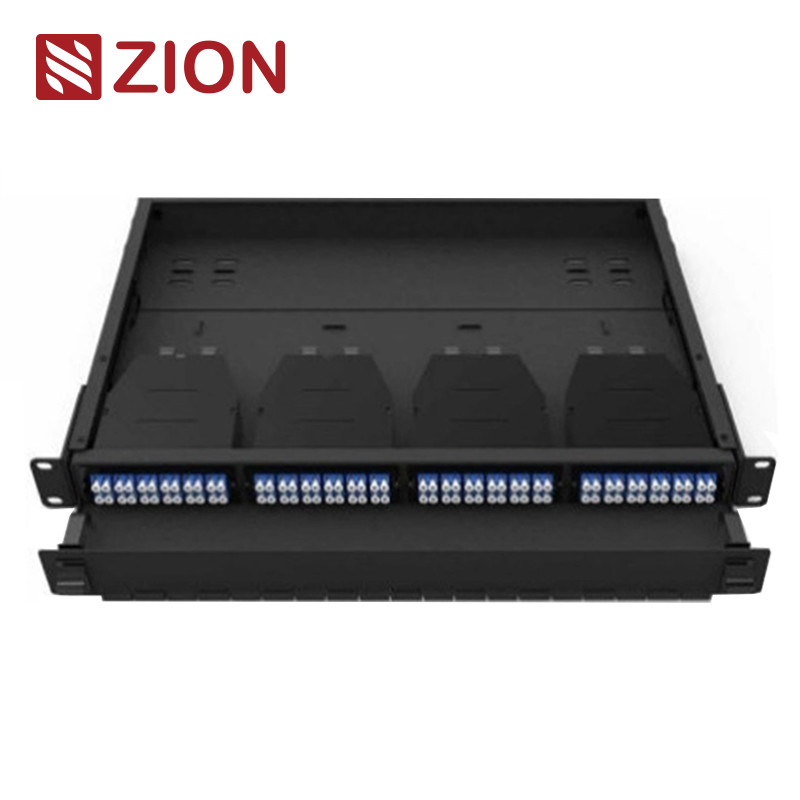

1U UHD MPO/MTP Patch Panel with 96F Fiber Count and Full Cover Fixed Design for Rack Mounting

This 1U ultra high density MTP/MPO-LC patch panel with 4 cassettes addresses today's requirements for increasingly higher density levels. Each cassette is fitted with 12 fibers and features array adapters on the front side with MTP/MPO connections at the rear. This cassette is specifically designed to optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.

• Powder coated finish for durability
• Compatible with 19-inch rack installations
• Fixed and sliding tray design options
• Easy to operate and maintain
• Fixed type with PC material transparent front cover for easy observation and maintenance
• Constructed from cold roll steel with electrostatic powder spraying
• Removable top for easier fiber cable management
• Compliant with IEC-61754-7, EIA/TIA-604-5 & RoHS standards

• Panel constructed from cold rolled sheet with frosted painting
• Cassette made with aluminum, adapter plate with plastic
• Cassette fixed on panel with pressing valve mechanism
• Supports SC/FC/ST/LC connectors with UPC and APC options
• Available in 1U, 2U, 3U, and 4U configurations
• MPO/MTP module cassettes divide 12 or 24 fiber MPO/MTP connectors to simplex or duplex standard connectors

• Ultra-high density data center cabling systems and management
• Professional MPO/MTP cabling solutions
• UHD Series versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications

• 723606 ZCUHD11F37HL: 1U UHD MPO/MTP-LC 144F Full cover Fixed Rack mounted Patch panel-12 cassettes
• 7236062 ZCUHD12F57HL: 2U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-24 cassettes
• 7236063 ZCUHD14F78HM1: 4U UHD MPO/MTP-LC 576F Full cover Fixed Rack mounted Patch panel-48 cassettes
• 7236064 ZCUHD11F22HA: 1U UHD MPO/MTP-LC 96F Full cover Fixed Rack mounted Patch panel-4 cassettes
• 7236065 ZCUHD13F52HA: 3U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-12 cassettes
• 7236066 ZCUHD14F62HA: 4U UHD MPO/MTP-LC 384F Full cover Fixed Rack mounted Patch panel-16 cassettes
• 7236067 ZCFHD11S17HL: 1U FHD MPO&MTP-LC 72F Slide Rail Rack mount patch panel-Modular design
• 7236068 ZCFHD11F27HL: 1U FHD MPO&MTP-LC 96F Standard fixed Rack mount patch panel Max-4 modules type
