2U UHD 288F Fiber Count MPO Patch Panel with 19" Rack Mountable Cold Rolled Steel Enclosure

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Material:	CRS Cold Rolled Steel	Enclosure Type:	19" Rack Mountable
Installation:	Standard EIA 19" Rack	Fiber Count:	Max.288Fibers
Dimensions (HxWxD):	482.6mmx455mmx89mm
Highlight:	288F Fiber Count MPO Patch Panel , 19" Rack Mountable MPO Patch Panel , Cold Rolled Steel MPO Patch Panel

Product Description

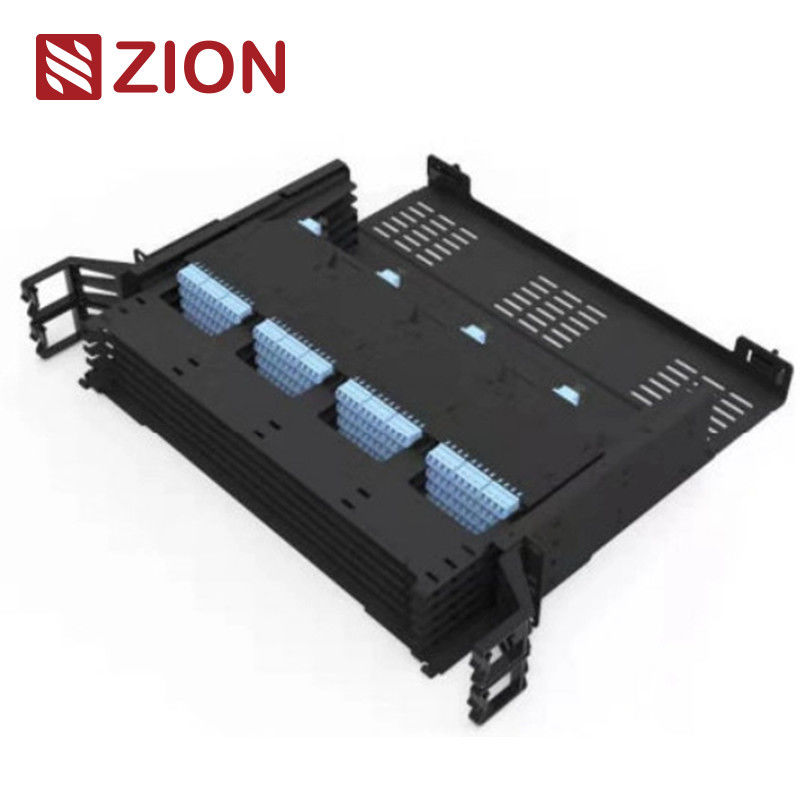

2U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel

Ultra High Density Patch Panel Solution

This 2U rack-mounted patch panel features 24 cassettes and supports up to 288 fibers, providing an ultra-high density solution for modern data center and telecommunications applications.

Key Features

Powder coated finish for durability
Compatible with 19-inch rack installations
Fixed and sliding tray design options
Easy operation and maintenance
Transparent PC material front cover for visibility
Constructed from cold roll steel with electrostatic powder spraying
Removable top for enhanced fiber cable management
Compliant with IEC-61754-7, EIA/TIA-604-5 & RoHS standards

Product Construction

The panel is manufactured from cold rolled sheet with frosted painting, while cassettes are made from aluminum and adapter plates from plastic. Cassettes are securely fixed to the panel using pressing valves.

MPO fiber optic patch panels support SC/FC/ST/LC connectors with UPC and APC options, available in 1U, 2U, 3U, and 4U configurations. As manufacturers of MPO fiber optic patch panels, cassettes, cable assemblies, and components, we ensure quality throughout.

MPO/MTP module cassettes efficiently divide 12 or 24 fiber MPO/MTP connectors from pre-assembled terminal ends to simplex or duplex standard connectors. This allows direct connection to equipment, frames, or client endpoints using standard patch cords.

Matching Cassettes Module and Accessories

Technical Specifications

Product Code: ZCUHD12F57HL1
Material: CRS Cold Rolled Steel
Enclosure Type: 19" Rack Mountable
Installation: Standard EIA 19" Rack
Compliant: TIA/EIA-568-C.3
Fiber Count: Maximum 288 Fibers
Dimensions (HxWxD): 482.6mm x 455mm x 89mm
Application: Telecommunication
Place of Origin: ZheJiang, China
Brand: HELLOSIGNAL® or OEM
Delivery Time: Normally 25 days after deposit receipt
Minimum Order Quantity: 50 pieces

Applications

Ultra-high density data center cabling systems and management
Professional MPO/MTP cabling solutions
Versatile UHD Series available in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications

Related Fiber Patch Panel Products

Zion Communication's comprehensive fiber patch panel lineup includes:

723606 ZCUHD11F37HL: 1U UHD MPO/MTP-LC 144F Full Cover Fixed Rack Mounted Patch Panel - 12 cassettes
7236062 ZCUHD12F57HL: 2U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel - 24 cassettes
7236063 ZCUHD14F78HM1: 4U UHD MPO/MTP-LC 576F Full Cover Fixed Rack Mounted Patch Panel - 48 cassettes
7236064 ZCUHD11F22HA: 1U UHD MPO/MTP-LC 96F Full Cover Fixed Rack Mounted Patch Panel - 4 cassettes
7236065 ZCUHD13F52HA: 3U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel - 12 cassettes
7236066 ZCUHD14F62HA: 4U UHD MPO/MTP-LC 384F Full Cover Fixed Rack Mounted Patch Panel - 16 cassettes
7236067 ZCFHD11S17HL: 1U FHD MPO&MTP-LC 72F Slide Rail Rack Mount Patch Panel - Modular design
7236068 ZCFHD11F27HL: 1U FHD MPO&MTP-LC 96F Standard Fixed Rack Mount Patch Panel - Maximum 4 modules type
