1U UHD 144 Fibers MPO/MTP Fiber Optic Patch Panel with 19" Rack Mountable Cold Rolled Steel Enclosure

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Material:	CRS Cold Rolled Steel	Enclosure Type:	19" Rack Mountable
Installation:	Standard EIA 19" Rack	Fiber Count:	Max.144 Fibers
Dimensions (HxWxD):	482.6mmx455mmx44mm
Highlight:	144F Rack Mount Fiber Patch Panel , 12 Cassettes Rack Mount Fiber Panel

Product Description

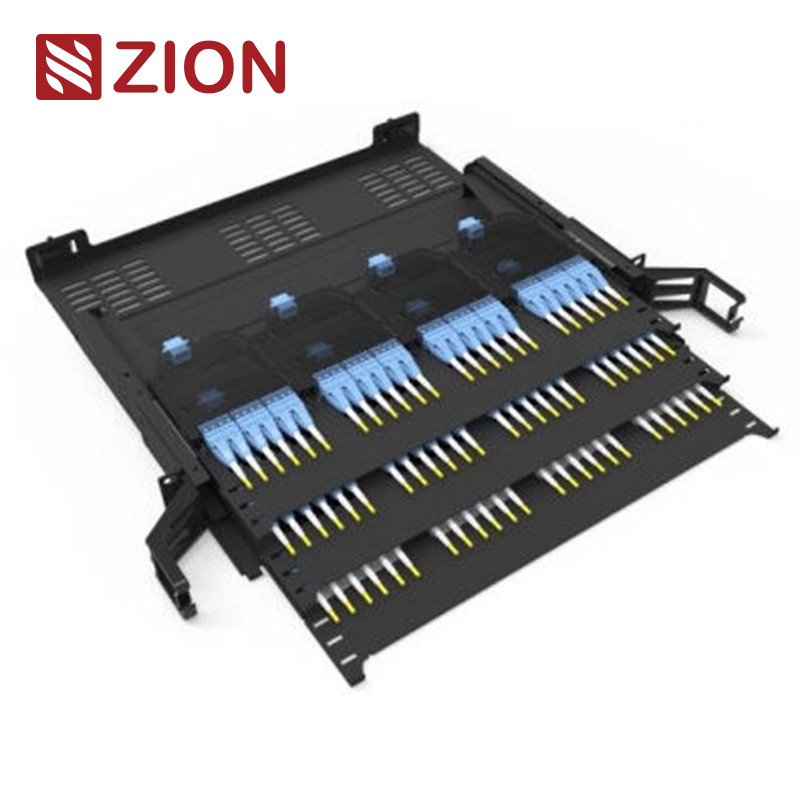

1U UHD MPO/MTP-LC Full Cover Fixed Rack Mount Fiber Optic Patch Panel

Ultra High Density 144-Fiber Patch Panel with 12 Cassettes

This ultra high density MTP/MPO-LC patch panel and cassette system addresses today's requirements for increasingly higher density levels. Each cassette accommodates 12 fibers with LC adapters on the front side and MTP/MPO connectors at the rear. This system is specifically designed to optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.

Key Features

Powder coated finish for durability
Compatible with standard 19-inch rack installations
Fixed and sliding tray design options
Easy to operate and maintain
Fixed type with PC material transparent front cover for easy observation and maintenance
Constructed from cold roll steel with electrostatic powder spraying
Removable top for easier fiber cable management
Compliant with IEC-61754-7, EIA/TIA-604-5 & RoHS standards

Product Construction

Panel constructed from cold rolled sheet with frosted painting
Cassette made with aluminum materials
Adapter plate manufactured from high-quality plastic
Cassette securely fixed on panel with pressing valve mechanism
Available with SC/FC/ST/LC connectors in UPC and APC configurations
MPO/MTP module cassettes convert 12 or 24 fiber MPO/MTP connectors to simplex or duplex standard connectors

Matching Cassettes Module and Accessories

Technical Specifications

Product Code: ZCUHD11F37HL1
Material: CRS Cold rolled steel
Enclosure Type: 19" Rack Mountable
Installation: Standard EIA 19" Rack
Compliant: TIA/EIA-568-C.3
Fiber Count: Maximum 144 Fibers
Dimensions (HxWxD): 482.6mm x 455mm x 44mm
Application: Telecommunication
Place of Origin: ZheJiang, China
Brand: HELLOSIGNAL® OR OEM
Delivery Time: Normally 25 days after receiving deposit
MOQ: 50 pieces

Applications

Ultra-high density data center cabling systems and management
Professional MPO/MTP cabling solutions
Versatile solution for building backbones, data centers and enterprise applications

Related Product Series

Zion Communication's Hot Fiber Patch Panel Series:

723606 ZCUHD11F37HL: 1U UHD MPO/MTP-LC 144F Full Cover Fixed Rack Mounted Patch Panel - 12 Cassettes
7236062 ZCUHD12F57HL: 2U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel - 24 Cassettes
7236063 ZCUHD14F78HM1: 4U UHD MPO/MTP-LC 576F Full Cover Fixed Rack Mounted Patch Panel - 48 Cassettes
7236064 ZCUHD11F22HA: 1U UHD MPO/MTP-LC 96F Full Cover Fixed Rack Mounted Patch Panel - 4 Cassettes
7236065 ZCUHD13F52HA: 3U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel - 12 Cassettes
7236066 ZCUHD14F62HA: 4U UHD MPO/MTP-LC 384F Full Cover Fixed Rack Mounted Patch Panel - 16 Cassettes
7236067 ZCFHD11S17HL: 1U FHD MPO&MTP-LC 72F Slide Rail Rack Mount Patch Panel - Modular Design
7236068 ZCFHD11F27HL: 1U FHD MPO&MTP-LC 96F Standard Fixed Rack Mount Patch Panel - Maximum 4 Modules Type
