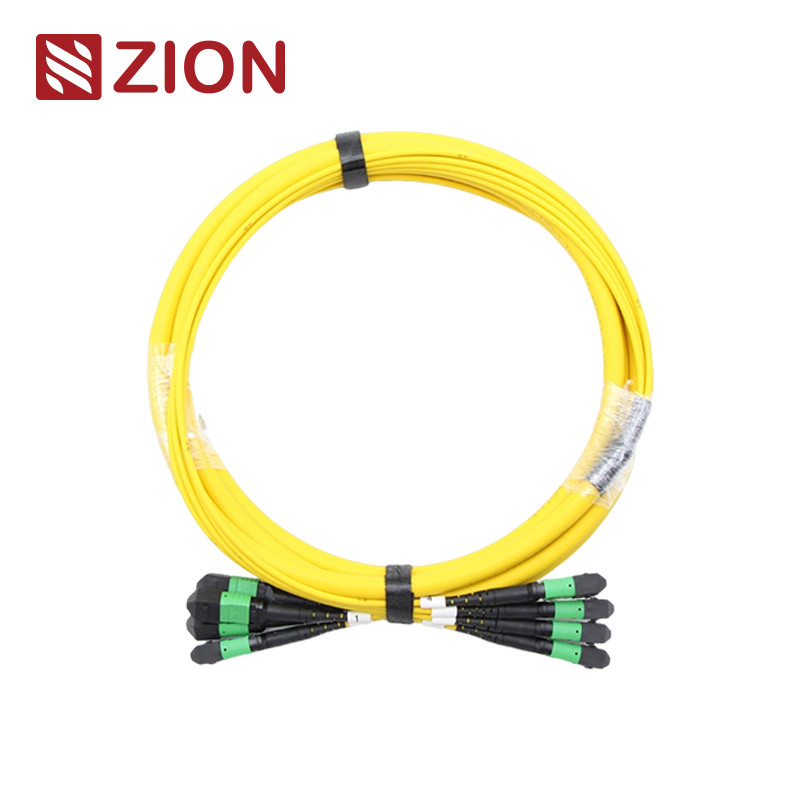

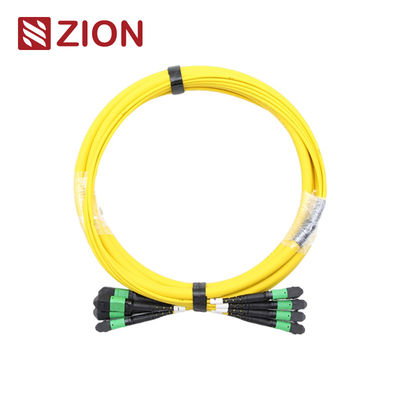

48F (4x12) MTP Single-Mode Fiber Optic Trunk Cable
This high-density (4*12)48F MTP Single-Mode Fiber Optic Trunk Cable provides reliable connectivity for demanding data center and telecommunications applications.
Product Identification
Zion Code: ZCM22C2HIAX
Zion Description: (4*12)48F MTP SM Fiber Optic Trunk Cable
MTP Connector Overview
The MTP (Multi-Fiber Push On) connector is a high-density multi-fiber connector type designed for data center environments, fiber-to-the-building applications, and internal connections in optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MTP connectors are classified according to EIA/TIA-604-5 standards based on fiber count, gender (Male/Female), and polish type (PC or APC).
Trunk Cable Specifications
24F-144F MPO/MTP trunk cables are terminated with MPO/MTP connectors on both ends, creating permanent links between MPO/MTP modules. Available in 12, 24, 48, 60, 72, 96, and 144 fiber configurations, these cables support speeds up to 10/40/100Gbps data center solutions.
These trunk cables interconnect cassettes, panels, or ruggedized MPO/MTP fan-outs, enabling rapid deployment of high-density backbone cabling in data centers and other high-fiber-count environments.
Industrial Standards Compliance
MTP Singlemode Reference: EIA/TIA-604-5
MTP Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP); Yellow connectors+black boot (Super low loss MTP)
MTP Multimode Reference: EIA/TIA-604-5
MTP Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot; OM3&OM4 PC: Aqua connectors+black boot; OM3&OM4 PC: Heather Violet connectors+black boot
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Optical Performance Specifications
Insertion Loss (MTP) - Singlemode (APC 8-degree polished):
Standard loss: ≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (MTP) - Multimode (PC Flat polish):
Standard loss: ≤0.6dB(max), ≤0.50(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (LC/SC/FC/ST):
Single mode (APC): ≤0.3dB
Multimode (PC): ≤0.3dB
Return Loss (MTP) - Singlemode (APC): ≥60dB
Return Loss (MTP) - Multimode (PC): ≥25dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500 times, IL <0.5dB
Tensile strength: >70N
Operating Temperature - Singlemode: -40°C to +85°C
Key Features
- Low insertion loss, high return loss performance
- MT-based Multi-fiber Connector with 4, 8, 12 and 24 fiber terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options
- Color coded housings for easy fiber type and polish type identification
- Excellent repeatability and exchangeability
Applications
OMC's MTP Connectors from Senko/Nissin/Sumitomo are ideal for:
- High-density data center environments
- Fiber-to-the-building installations
- Internal connections within fiber optic equipment
Product Documentation
Push Pull Tab for Senko MTP
Cable Construction Materials
Connector and Fiber Channel Configuration
Note: Female connectors must connect with male connector types for proper operation.
MTP-MTP 12F Trunk Cable Technical Drawing
Length Tolerance Specifications
| Overall Length (L) (m) |
Length Tolerance (cm) |
| 0 < L < 1 |
+5/-0 |
| 1 < L < 10 |
+10/-0 |
| 10 < L < 40 |
+15/-0 |
| 40 < L |
+0.5% x L/-0 |
MTP/MPO Polarity Connection Methods
Because 24F-144F MPO/MTP trunk cable's unit connector is 12F MPO/MTP, it maintains the same polarity as single 12F MPO/MTP trunk cables.
Material Specifications
Popular MPO/MTP Trunk Cable Models
- 7236055 ZCM12C2HIAX: (4*12)48F MPO SM Fiber Optic Trunk Cable
- 7236056 ZCM12C7HAAX: (4*12)48F MPO OM3 Fiber Optic Trunk Cable
- 7236057 ZCM12C8HMAX: (4*12)48F MPO OM4 Fiber Optic Trunk Cable
- 7236058 ZCM22C2HIAX: (4*12)48F MTP SM Fiber Optic Trunk Cable
- 7236059 ZCM22C7HAAX: (4*12)48F MTP OM3 Fiber Optic Trunk Cable
- 7236060 ZCM22C8HMAX: (4*12)48F MTP OM4 Fiber Optic Trunk Cable
Packaging Information
All fiber optic cables are labeled and marked by OMC as standard. Available carton sizes include 34*22*15 cm, 44*34*24 cm, and 54*39*34 cm, selected based on order quantity. Custom packaging options are available.
OEM/ODM Services
Customization options include:
- Cable color, printing, and jacket material
- OEM Labels, identification rings, cable labels, boxes, and shipping marks
- Different quality levels to meet specific requirements
