48F MPO OM4 Fiber Optic Trunk Cable

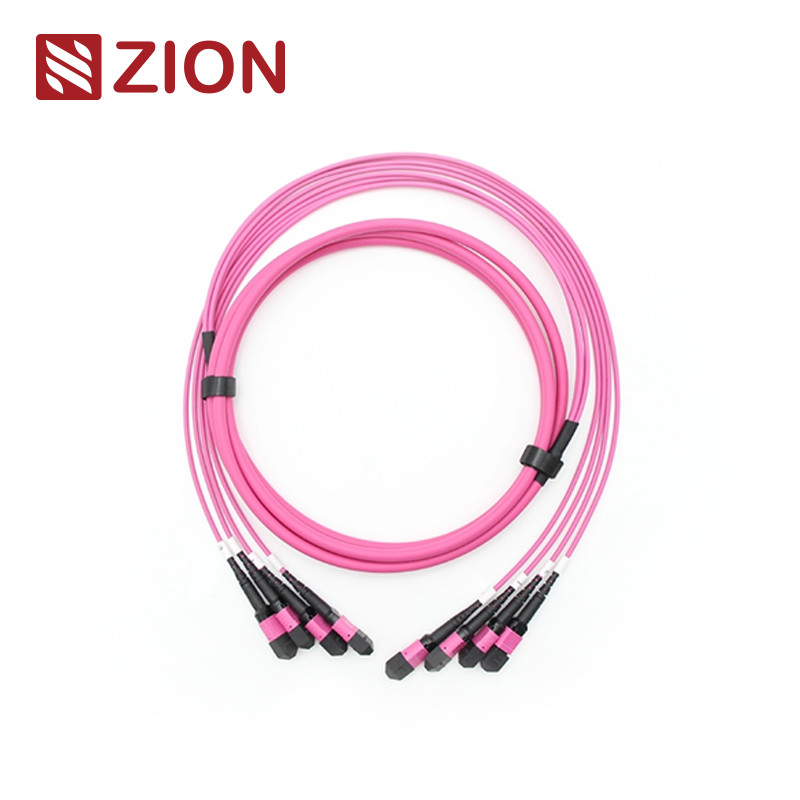

(4×12)48F MPO OM4 Fiber Optic Trunk Cable
Zion Code: ZCM12C8HIAX
Zion Description: (4×12)48F MPO OM4 Fiber Optic Trunk Cable
The MPO connector is a multi-fiber push-on connector designed for high-density environments. This system is primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MPO connector types are classified according to IEC 61754-7 standards based on core count, gender (male/female), and polish type (PC or APC).
Product Overview
24F-144F MPO/MTP trunk cables are terminated with MPO/MTP connectors on both ends, creating permanent links between MPO/MTP modules. Available in 12, 24, 48, 60, 72, 96, and 144 fiber configurations, these cables support speeds up to 10/40/100Gbps for data center solutions.
Connector Industrial Standards
MPO Singlemode Reference: IEC 61754-7
MPO Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MPO); Yellow connectors+black boot (Super low loss MPO)
MPO Multimode Reference: IEC 61754-7
MPO Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot; OM3&OM4 PC: Aqua connectors+black boot; OM3&OM4 PC: Heather Violet connectors+black boot
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Optical Specifications
Insertion Loss (MPO) Singlemode (APC 8-degree polished): Standard loss: ≤0.75dB(max), ≤0.50dB(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (MPO) Multimode (PC Flat polish): Standard loss: ≤0.6dB(max), ≤0.50(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Return Loss (MPO) Singlemode (APC 8-degree polished): ≥60dB
Return Loss (MPO) Multimode (PC Flat polish): ≥25dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500 times, IL <0.5dB
Tensile strength: >70N
Operating Temperature Singlemode (APC): -40°C to +85°C
Key Features
- Low insertion loss, high return loss
- MT-based multi-fiber connector with 4, 8, 12 and 24 fiber terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss singlemode and multimode applications
- Ruggedized round cable, oval cable and bare ribbon options
- Color-coded housings for easy fiber type identification
- Excellent repeatability and exchangeability
Applications
12F MPO-LC/SC/FC/ST straight harness cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data centers. Optimized for 10/40/100G high-density data center applications.
- Data center applications with high-density environments
- Fiber-to-the-building installations
- Internal connector applications in fiber equipment
Naming Rules & Order Confirmation
Push Pull Tab For Senko MPO
Product Materials - Cable
Connector and Fiber Channel
Note: Female connectors must connect with male connector types.
MPO-MPO 12F Trunk Cable Drawing
Overall Length Tolerance:
0<L<1: +5/-0 cm
1<L<10: +10/-0 cm
10<L<40: +15/-0 cm
40<L: +0.5% x L/-0
Three Connection Methods for MTP/MPO Polarity
24F-144F MPO/MTP trunk cable's unit connector is 12F MPO/MTP, maintaining the same polarity as single 12F MPO/MTP trunk cables.
Material Details
Zion Communication Hot MPO/MTP Trunk Cables
- 7236055 ZCM12C2HIA: (4×12)48F MPO SM Fiber Optic Trunk Cable
- 7236056 ZCM12C7HAA: (4×12)48F MPO OM3 Fiber Optic Trunk Cable
- 7236057 ZCM12C8HMAX: (4×12)48F MPO OM4 Fiber Optic Trunk Cable
- 7236058 ZCM22C2HIA: (4×12)48F MTP SM Fiber Optic Trunk Cable
- 7236059 ZCM22C7HAA: (4×12)48F MTP OM3 Fiber Optic Trunk Cable
- 7236060 ZCM22C8HMA: (4×12)48F MTP OM4 Fiber Optic Trunk Cable
Packaging
This easily handled and well-protected fiber optic cable package is labeled and marked by OMC as default. Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Carton selection depends on quantity. Custom packaging available.
OEM/ODM Services
- Custom cable color, printing, jacket material, and connector colors
- OEM labeling, identification rings, cable labels, boxes, and shipping marks
- Different quality levels available
