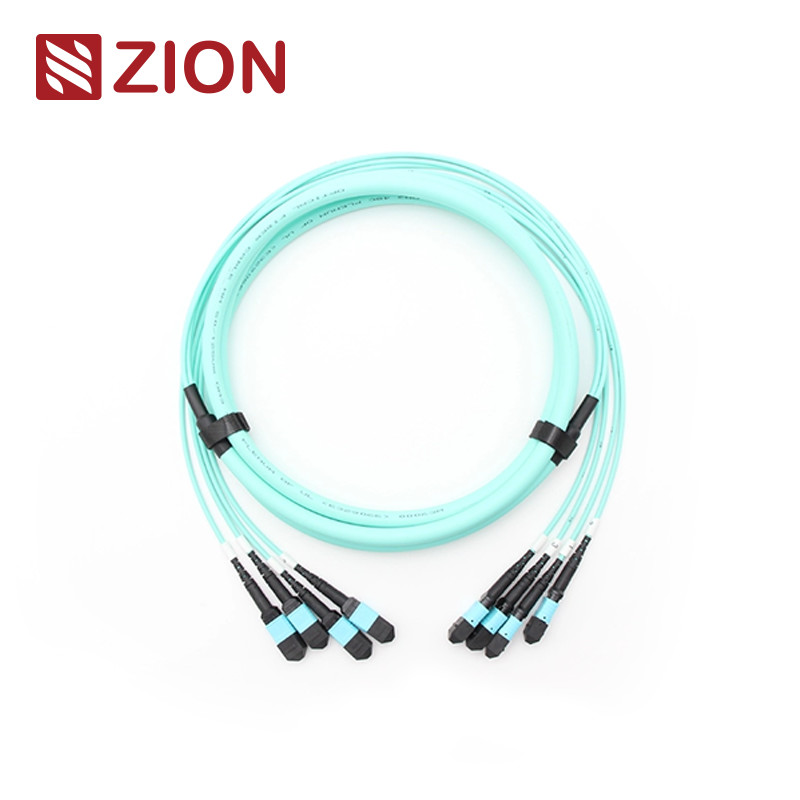

48F (4x12) MPO OM3 Fiber Optic Trunk Cable
(4*12)48F MPO OM3 Fiber Optic Trunk Cable
Zion Code and Description
Zion Code: ZCM12C7HIAX
Zion Description: (4*12)48F MPO OM3 Fiber Optic Trunk Cable
The MPO connector is a multi-fiber connector type designed for high-density environments. MPO (Multi-Fiber Push On) connectors are primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MPO connector types are distinguished according to IEC 61754-7 regulations by core numbers, gender (Male/Female), and polarity (PC or APC).
24F-144F MPO/MTP trunk cables are terminated with MPO/MTP connectors on both ends. These cables connect MPO/MTP modules together as permanent links and are available with 12, 24, 48, 60, 72, 96, and 144 fibers, supporting speeds up to 10/40/100Gbps data center solutions.
Connectors Industrial Standard
MPO Singlemode
Reference: IEC 61754-7
Housing Details: SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO)
MPO Multimode
Reference: IEC 61754-7
Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard & Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Optical Specifications
| Parameter |
Specification |
| Insertion Loss (MPO) Singlemode (APC 8-degree polished) |
Standard loss: ≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical) |
| Insertion Loss (MPO) Multimode (PC Flat polish) |
Standard loss: ≤0.6dB(max), ≤0.50(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST) Single mode (APC 8-degree polished) |
≤0.3dB |
| Insertion loss (LC/SC/FC/ST) Multimode (PC Flat polish) |
≤0.3dB |
| Return Loss (MPO) Singlemode (APC 8-degree polished) |
≥60dB(8degree polishing) |
| Return Loss (MPO) Multimode (PC Flat polish) |
≥25dB |
| Return loss (LC/SC/FC/ST) |
APC≥60dB; UPC≥50dB |
| Durability |
<0.3dB typical change (200 matings) |
| Interchangeability |
≤0.2dB |
| Insert-pull Test |
500 times, IL＜0.5dB |
| Tensile strength |
>70N |
| Operating Temperature Singlemode (APC) |
-40°C to +85°C |
Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
Application
12F MPO-LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data centers. Optimized for 10/40/100G high-density data center applications.
All of OMC's MPO Connectors are from Senko/Nissin/Sumitomo. MPO Fiber Patch Cord is used in three primary areas:
- The Data Center application with high density environment
- The optical fiber to the building
- The internal connector application in fiber equipment
Naming Rules & Order Confirmation Information
Push Pull Tab For Senko MPO
24F-144F MPO/MTP Trunk Cable
Products Materials - Cable
Connector and Fiber Channel
Note: Female connector needs to connect with male connector type.
MPO-MPO 12F Trunk Cable Drawing
| Overall Length (L) (m) |
Length of Tolerance (cm) |
| 0 < L < 1 |
+5/-0 |
| 1 < L < 10 |
+10/-0 |
| 10 < L < 40 |
+15/-0 |
| 40 < L |
+0.5% x L/-0 |
Three Connection Methods Help Keep the Right MTP/MPO Polarity
Because 24F-144F MPO/MTP trunk cable's unit connector is 12F MPO/MTP, it has the same polarity as single 12F MPO/MTP trunk cable.
Material's Details
Zion Communication's Hot MPO/MTP Trunk Cable
- 7236055 ZCM12C2HIA: (4*12)48F MPO SM Fiber Optic Trunk Cable
- 7236056 ZCM12C7HAA: (4*12)48F MPO OM3 Fiber Optic Trunk Cable
- 7236057 ZCM12C8HMAX: (4*12)48F MPO OM4 Fiber Optic Trunk Cable
- 7236058 ZCM22C2HIA: (4*12)48F MTP SM Fiber Optic Trunk Cable
- 7236059 ZCM22C7HAA: (4*12)48F MTP OM3 Fiber Optic Trunk Cable
- 7236060 ZCM22C8HMA: (4*12)48F MTP OM4 Fiber Optic Trunk Cable
Packaging
This easily handled and well-protected fiber optical cable package has been labelled and marked by OMC as default. Standard carton sizes: 34*22*15 cm; 44*34*24 cm; 54*39*34 cm. Carton selection depends on goods quantity. Custom packaging available.
OEM/ODM Service
Customization options include:
- Cable color, printing word, material of cable jacket, connector's color
- OEM Label, Identify ring, cable's label, box, shipping marks
- Different quality levels
