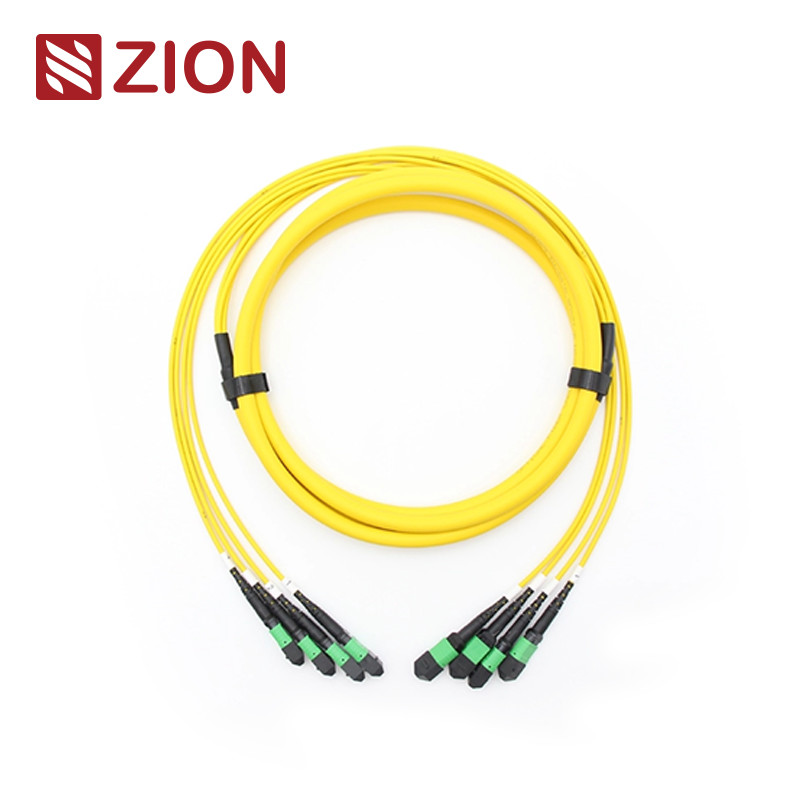

48F (4x12) MPO Single Mode Fiber Optic Trunk Cable
This high-density MPO trunk cable features 48 fibers organized in 4 groups of 12, terminated with MPO connectors on both ends. Designed for data center applications, fiber-to-the-building installations, and internal connections in optical transceiver equipment.
Product Identification
Zion Code: ZCM12C2HIAX
Zion Description: (4*12)48F MPO SM Fiber Optic Trunk Cable
MPO Connector Overview
MPO (Multi-Fiber Push On) connectors are multi-core fiber connectors compliant with IEC 61754-7 standards. They are categorized by core count, gender (Male/Female), and polish type (PC or APC).
Connector Standards & Specifications
| Type |
Standard Reference |
Housing Details |
| MPO Singlemode |
IEC 61754-7 |
SM APC: Green connectors + black boot (Standard Loss MPO)
SM APC: Yellow connectors + black boot (Super Low Loss MPO) |
| MPO Multimode |
IEC 61754-7 |
OM1&OM2 PC: Beige connectors + black boot
OM3&OM4 PC: Aqua connectors + black boot
OM3&OM4 PC: Heather Violet connectors + black boot |
Compliant with IEC-61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5 (FOCIS5), and structured cabling per TIA-568-C. Also meets 10G Fiber Channel, 40G, and 100G IEEE 802.3 standards.
Optical Performance Specifications
| Parameter |
Singlemode (APC) |
Multimode (PC) |
| Insertion Loss (MPO) |
Standard: ≤0.75dB (max), ≤0.50dB (typical)
Super Low: ≤0.35dB (max), ≤0.20dB (typical) |
Standard: ≤0.6dB (max), ≤0.50dB (typical)
Super Low: ≤0.35dB (max), ≤0.20dB (typical) |
| Return Loss (MPO) |
≥60dB (8-degree polishing) |
≥25dB |
| Durability |
<0.3dB typical change (200 matings) |
| Interchangeability |
≤0.2dB |
| Operating Temperature |
-40°C to +85°C |
-40°C to +85°C |
Key Features
- Low insertion loss, high return loss
- MT-based multi-fiber connector supporting 4, 8, 12, and 24 fiber terminations
- Economical solution for mass fiber termination
- Optimized for low loss and standard loss SM/MM applications
- Available in ruggedized round cable, oval cable, and bare ribbon options
- Color-coded housings for easy fiber type and polish identification
- Excellent repeatability and exchangeability
Applications
Designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center environments. Optimized for 10/40/100G high-density data center applications.
- High-density data center environments
- Fiber-to-the-building installations
- Internal connections in fiber optic equipment
Note: Female connectors must be connected with male connector types.
Zion Communication Hot MPO/MTP Trunk Cables
| Product Code |
Description |
| 7236055 ZCM12C2HIA |
(4*12)48F MPO SM Fiber Optic Trunk Cable |
| 7236056 ZCM12C7HAA |
(4*12)48F MPO OM3 Fiber Optic Trunk Cable |
| 7236057 ZCM12C8HMAX |
(4*12)48F MPO OM4 Fiber Optic Trunk Cable |
| 7236058 ZCM22C2HIA |
(4*12)48F MTP SM Fiber Optic Trunk Cable |
| 7236059 ZCM22C7HAA |
(4*12)48F MTP OM3 Fiber Optic Trunk Cable |
| 7236060 ZCM22C8HMA |
(4*12)48F MTP OM4 Fiber Optic Trunk Cable |
Packaging
Standard carton sizes: 34×22×15 cm, 44×34×24 cm, 54×39×34 cm. Packaging can be customized according to order quantity and requirements.
OEM/ODM Services
Customization options include cable color, printing, jacket material, connector colors, labeling, identification rings, and quality levels.
