24F MTP-LC OM4 Fiber Optic Harness Cable with 2.0mm Straight Design for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	Above 600 Times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	24F MTP-LC Harness Cable , OM4 Fiber Optic Harness Cable , 2.0mm MTP Fiber Optic Cable

Product Description

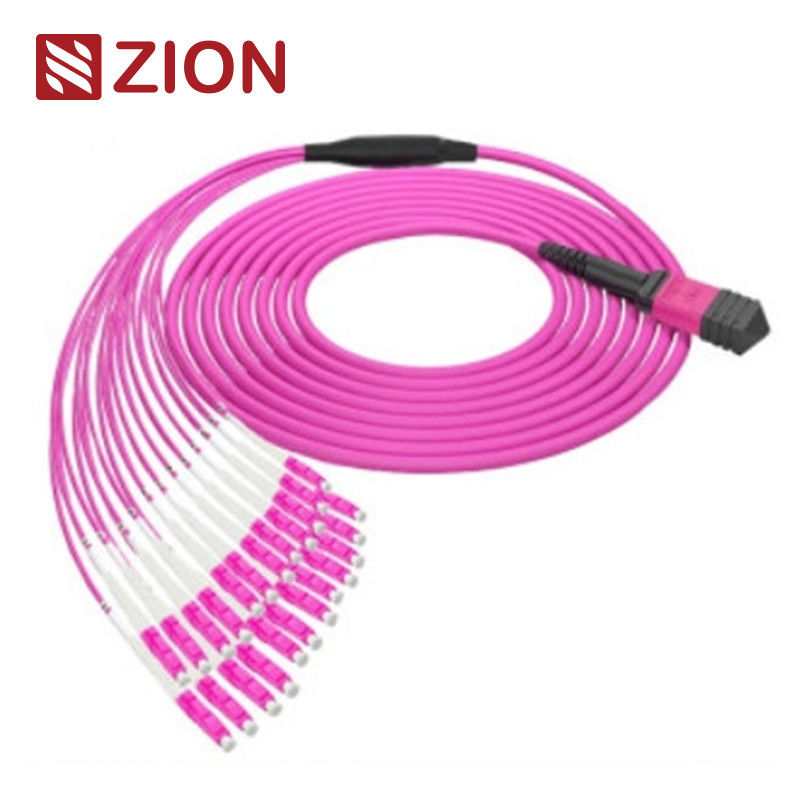

24F MTP OM4 Fiber Optic MTP-LC 2.0mm Straight Harness Cables

Zion Product Information

Zion Code: ZCM21A58HAAX

Zion Description: 24F MTP OM4 Fiber Optic MTP-LC 2.0mm Straight Harness Cables

Product Overview

The MTP connector is a multi-fiber push-on connector designed for high-density fiber optic applications. This 24-core MTP Female to 12 LC Duplex harness cable is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center environments.

MTP connectors are standardized according to EIA/TIA-604-5 regulations and are distinguished by core count, gender (male/female), and polish type (PC or APC).

Industrial Standards Compliance

MTP Connector Standards

MTP Singlemode Reference: EIA/TIA-604-5

MTP Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)

MTP Multimode Reference: EIA/TIA-604-5

MTP Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

Other Connector Standards

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc
E2000: IEC61754-15

Available Fiber Types

G657A1 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
G657A2/B2 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
G657B3 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
OM1 62.5/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
OM2 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
OM3 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
OM4 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
OM5 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

Optical Specifications

Insertion Loss

MTP (IEC 61300-3-34) Singlemode (APC 8-degree polished): Standard loss: ≤0.75dB(max), ≤0.50dB(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)

MTP (IEC 61300-3-34) Multimode (PC Flat polish): Standard loss: ≤0.6dB(max), ≤0.50(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)

LC/SC/FC/ST (IEC 61300-3-6) Single mode (APC 8-degree polished): ≤0.3dB

LC/SC/FC/ST (IEC 61300-3-6) Multimode (PC Flat polish): ≤0.3dB

Return Loss

MTP Singlemode (APC 8-degree polished): ≥60dB

MTP Multimode (PC Flat polish): ≥25dB

LC/SC/FC/ST: APC≥60dB; UPC≥50dB

LC/SC/FC/ST: ≥35dB

Performance Specifications

Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500 times, IL＜0.5dB
Tensile strength: >70N
Plug-in times: >600
Operating Temperature Singlemode (APC): -40°C to +85°C

Key Features

Low insertion loss, high return loss
MT based Multi-fiber Connector with 4,8,12 and 24 fiber terminations
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings to differentiate fiber type, polish type and connector grade
Excellent repeatability and exchangeability

MPO/MTP Cable Advantages

High Quality - Factory pre-terminated, tested and packaged with test reports for documentation and quality control
Space Saving - Small diameters decrease cable volume and improve air-conditioning conditions in data centers
Time Efficient - Plug and play design reduces installation time significantly

Applications

Designed for 100GBASE-SR10 CXP/CFP Interconnect Solution, 100GBASE-LR4 and high-density data center environments. Optimized for 10/40/100G high-density data center applications. This 24 Fiber harness cable is used for connecting (12) SFP+ into a MTP adapter panel and MTP trunk.

All MTP Connectors are sourced from Senko/Nissin/Sumitomo. MTP Fiber Patch Cables are used in three primary areas:

High-density data center environments
Fiber to the building applications
Internal connector applications in fiber equipment
