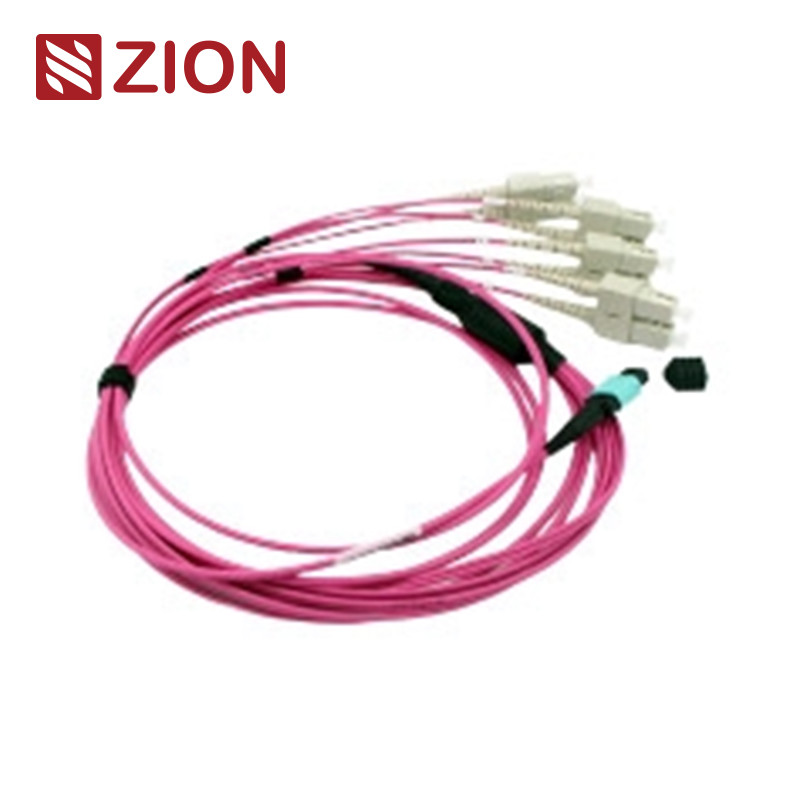

8F MTP OM4 Fiber Optic MTP-LC 2.0mm Straight Harness Cables
Zion Code: ZCM21A18HMAX
Zion Description: 8F MTP OM4 Fiber Optic MTP-LC 2.0mm Straight Harness Cables
The MTP connector is a multi-fiber connector type designed for high-density environments. MTP (Multi-Fiber Push On) systems are primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment such as 40G, 100G, and QSFP+ devices.
MTP connector types are distinguished according to EIA/TIA-604-5 regulations by core numbers, gender (male/female), and polarity (PC or APC).
These 8-core MTP to Duplex (4xLC uniboot) or Simplex (4xLC) straight harness cable assemblies are terminated with MTP and LC connectors. The 8-fiber fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.
Connector Industrial Standards
MPO Singlemode
Reference: EIA/TIA-604-5
Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)
MPO Multimode
Reference: EIA/TIA-604-5
Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Other Connector Standards
- SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
- LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
- FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
- ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973
- E2000: IEC61754-15
Available Fiber Types
- G657A1 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- G657A2/B2 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- G657B3 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM1 62.5/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM2 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM3 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM4 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM5 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
Optical Specifications
Insertion Loss (MTP)
Singlemode (APC 8-degree polished): Standard loss: ≤0.75dB(max), ≤0.50dB(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Multimode (PC Flat polish): Standard loss: ≤0.6dB(max), ≤0.50(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (LC/SC/FC/ST)
Single mode (APC 8-degree polished): ≤0.3dB
Multimode (PC Flat polish): ≤0.3dB
Return Loss
MTP Singlemode (APC): ≥60dB
MTP Multimode (PC): ≥25dB
LC/SC/FC/ST: APC≥60dB; UPC≥50dB; Multimode ≥35dB
Performance Specifications
- Durability: <0.3dB typical change (200 matings)
- Interchangeability: ≤0.2dB
- Insert-pull Test: 500 times, IL＜0.5dB
- Tensile strength: >70N
- Plug-in times: >600
- Operating Temperature (Singlemode APC): -40°C to +85°C
Key Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector with 4, 8, 12 and 24 fiber terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options
- Color coded housings for easy fiber type identification
- Excellent repeatability and exchangeability
MPO/MTP Cable Advantages
- High quality - Factory pre-terminated, tested and packaged with test reports
- Space saving - Small diameters decrease cable volume and improve airflow
- Time saving - Plug and play design reduces installation time
Applications
SM 8F MTP-LC/SC/FC/ST Straight Harness Cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.
This 8-fiber harness cable enables direct connection between QSFP+ to (4) SFP+ ports without patch panels or intermediate trunks.
All MTP connectors are sourced from Senko/Nissin/Sumitomo and are used in three primary areas:
- High-density data center environments
- Fiber-to-the-building applications
- Internal connections within fiber equipment
Naming Rules & Order Confirmation
Popular MTP-LC Straight Harness Cables
| Product Code |
Description |
| 7236037 ZCM11A12HIA |
8F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236038 ZCM11A22HIA |
12F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236039 ZCM11A52HIA |
24F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236040 ZCM11A17HAA |
8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236041 ZCM11A27HAA |
12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236042 ZCM11A57HAA |
24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236043 ZCM11A18HMA |
8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236044 ZCM11A28HMA |
12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236045 ZCM11A58HMA |
24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236046 ZCM21A12HIA |
8F MTP SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236047 ZCM21A22HIA |
12F MTP SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236048 ZCM21A52HIA |
24F MTP SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236049 ZCM21A17HAA |
8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236050 ZCM21A27HAA |
12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236051 ZCM21A57HAA |
24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236052 ZCM21A18HMA |
8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236053 ZCM21A28HMA |
12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
| 7236054 ZCM21A58HMA |
24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables |
Connection Methods for MPO/MTP Polarity
MTP - 8 x LC Simplex Structure - Type 1
MTP - 4 x LC Duplex Structure - Type 2
MTP - 4 x Uniboot LC Structure - Type 3
Materials Details
Packaging
All fiber optic cables are labeled and marked by OMC as standard. Available carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on order quantity. Custom packaging options are available.
OEM/ODM Services
- Custom cable color, printing, and jacket material
- OEM labeling, identification rings, and cable labels
- Custom boxes and shipping marks
- Different quality levels available
