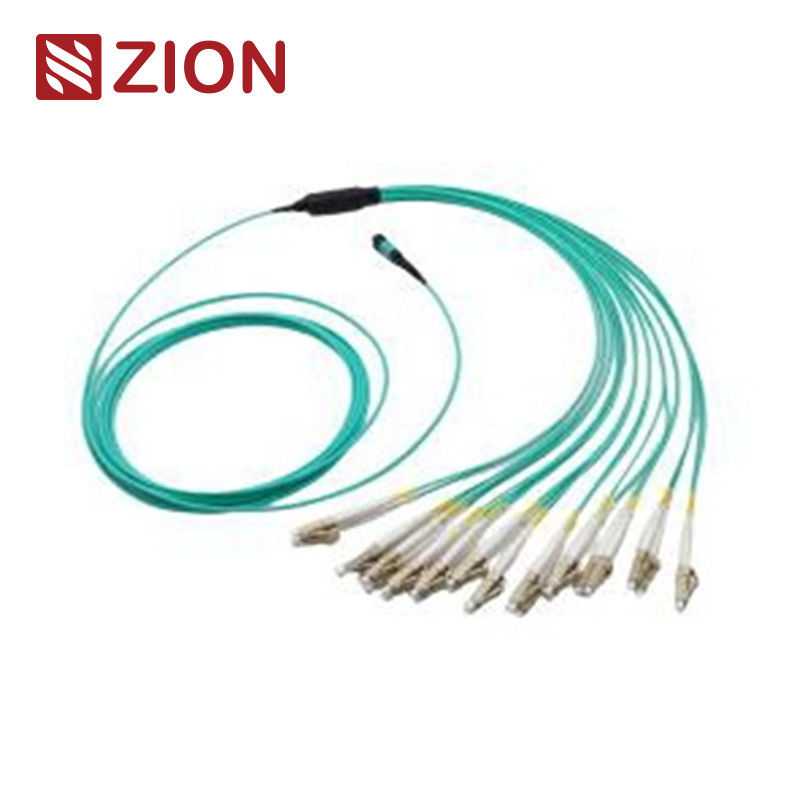

8F MTP OM3 Fiber Optic MTP-LC 2.0mm Straight Harness Cables
Zion Product Information
Zion Code: ZCM21A17HAAX
Description: 8F MTP OM3 Fiber Optic MTP-LC 2.0mm Straight Harness Cables
The MTP connector is a multi-fiber push-on connector designed for high-density environments. This system is primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment such as 40G, 100G, and QSFP+ devices.
MTP connectors are classified according to EIA/TIA-604-5 standards based on fiber count, gender (male/female), and polish type (PC or APC).
These 8-core MTP to Duplex (4xLC uniboot) or Simplex (4xLC) straight harness cable assemblies are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connections in high-density data center applications.
Connector Industrial Standards
MPO Singlemode
Reference: EIA/TIA-604-5
Housing Details: SM APC: Green connectors + black boot (Standard Loss MTP)
SM APC: Yellow connectors + black boot (Super Low Loss MTP)
MPO Multimode
Reference: EIA/TIA-604-5
Housing Details: OM1&OM2 PC: Beige connectors + black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors + black boot (Standard & Super Low Loss MTP)
OM3&OM4 PC: Heather Violet connectors + black boot (Standard Loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Other Connector Standards
- SC: TIA/EIA, FOCIS3, GR-326, NTT-SC, IEC61754-4 and JIS C5973
- LC: TIA/EIA, FOCIS10, GR-326, EIA/TIA-604-10, IEC61754-20 and JIS C5973
- FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326, IEC61754-13 and JIS C5973
- ST: TIA/EIA, FOCIS2, GR-326, IEC61754-2 and JIS C5973
- E2000: IEC61754-15
Available Fiber Types
Compatible with G657A1, G657A2/B2, G657B3, OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 50/125, and OM5 50/125 fiber types in MTP-LC, MTP-SC, MTP-FC, MTP-ST, and MTP-E2000 configurations.
Optical Specifications
Insertion Loss (MPO) - Singlemode (APC 8-degree polished):
Standard loss: ≤0.75dB (max), ≤0.50dB (typical)
Super Low loss: ≤0.35dB (max), ≤0.20dB (typical)
Insertion Loss (MPO) - Multimode (PC Flat polish):
Standard loss: ≤0.6dB (max), ≤0.50dB (typical)
Super Low loss: ≤0.35dB (max), ≤0.20dB (typical)
Insertion Loss (LC/SC/FC/ST):
Single mode (APC 8-degree polished): ≤0.3dB
Multimode (PC Flat polish): ≤0.3dB
Return Loss:
MPO Singlemode: ≥60dB
MPO Multimode: ≥25dB
LC/SC/FC/ST: APC≥60dB; UPC≥50dB; Multimode≥35dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500 times, IL <0.5dB
Tensile Strength: >70N
Operating Temperature: -40°C to +85°C
Key Features
- Low insertion loss, high return loss
- MT based multi-fiber connector supporting 4, 8, 12 and 24 fiber terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss singlemode and multimode applications
- Ruggedized round cable, oval cable and bare ribbon options
- Color coded housings for easy fiber type and polish type identification
- Excellent repeatability and exchangeability
MPO/MTP Cable Advantages
- High quality - Factory pre-terminated, tested and packaged with test reports
- Space saving - Small diameters reduce cable volume and improve airflow
- Time efficient - Plug and play design reduces installation time
Applications
Designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center environments. Optimized for 10/40/100G high-density data center applications.
Primary applications include high-density data center environments, fiber-to-the-building installations, and internal connections within fiber optic equipment.
Related Products
Zion Communication offers a comprehensive range of MTP-LC Straight Harness Cables including 8F, 12F, and 24F configurations in SM, OM3, and OM4 fiber types.
Connection Methods
MTP - 8 x LC Simplex Structure - Type 1
MTP - 4 x LC Duplex Structure - Type 2 MTP - 4 x Uniboot LC Structure - Type 3 Packaging
Standard packaging includes labeled and marked fiber optic cables by OMC. Available carton sizes: 34×22×15 cm, 44×34×24 cm, 54×39×34 cm. Custom packaging available upon request.
OEM/ODM Services
- Custom cable color, printing, and jacket material
- OEM labeling, identification rings, and cable labels
- Custom boxes and shipping marks
- Different quality levels available
Product Variations
| Image | Description | Category |
|---|
| 8F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch Cable | Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components |
| 12F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch Cable | Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components |
| 24F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch Cable | Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components |
