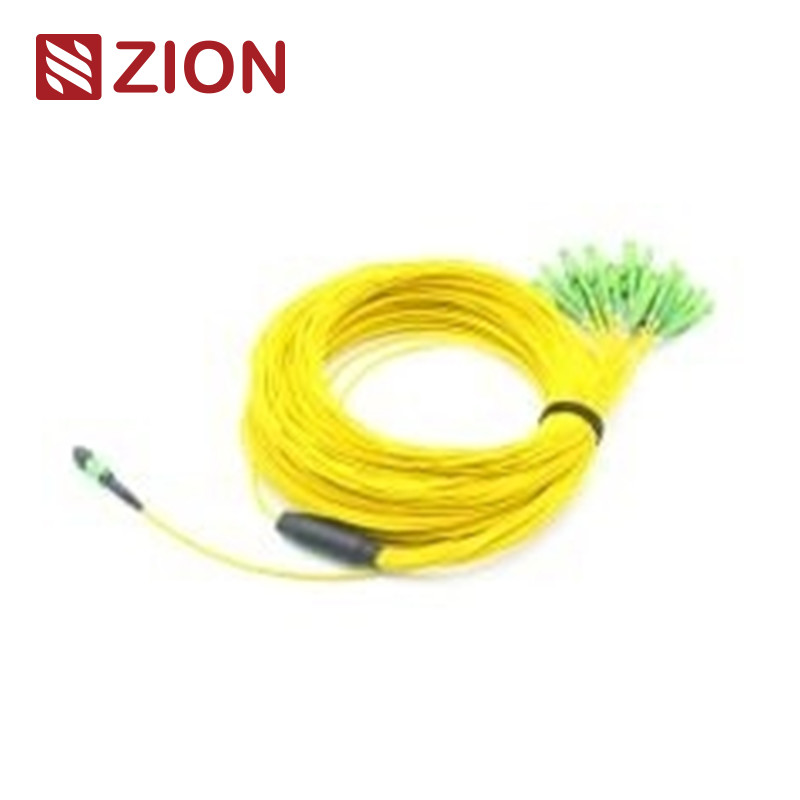

24 Fibers Single mode MTP-LC 2.0mm Straight Fiber Optic Harness Cable for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	Above 600 Times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	24 Fibers MTP-LC Harness Cable , Single mode Fiber Optic Harness Cable , 2.0mm Straight MTP-LC Cable

Product Description

24 Fibers MTP to LC Single Mode Fiber Optic Cable

High-density MTP-LC 2.0mm straight harness cables designed for data center applications

Product Identification

Zion Code: ZCM21A52HIAX
Description: 24F MTP SM Fiber Optic MTP-LC 2.0mm Straight harness Cables

Product Overview

The MTP connector is a multi-fiber push-on connector designed for high-density environments. This 24-fiber harness cable features MTP to LC connections and is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection in data center applications.

MTP connectors are standardized according to EIA/TIA-604-5 regulations, with distinctions based on core numbers, gender (male/female), and polarity (PC or APC).

Industrial Standards

MPO Singlemode

Reference: EIA/TIA-604-5

Housing Details:
SM APC: Green connectors + black boot (Standard Loss MTP)
SM APC: Yellow connectors + black boot (Super Low Loss MTP)

MPO Multimode

Reference: EIA/TIA-604-5

Housing Details:
OM1&OM2 PC: Beige connectors + black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors + black boot (Standard & Super Low Loss MTP)
OM3&OM4 PC: Heather Violet connectors + black boot (Standard Loss MTP)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3 Compliant

Other Connector Standards

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973
E2000: IEC61754-15

Available Fiber Types

G657A1 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

G657A2/B2 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

G657B3 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

OM1 62.5/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

OM2 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

OM3 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

OM4 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

OM5 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000

Optical Specifications

Parameter	Singlemode (APC)	Multimode (PC)
Insertion Loss (MPO)	Standard: ≤0.75dB(max), ≤0.50dB(typ) Super Low: ≤0.35dB(max), ≤0.20dB(typ)	Standard: ≤0.6dB(max), ≤0.50dB(typ) Super Low: ≤0.35dB(max), ≤0.20dB(typ)
Insertion Loss (LC/SC/FC/ST)	≤0.3dB	≤0.3dB
Return Loss (MPO)	≥60dB	≥25dB
Return Loss (LC/SC/FC/ST)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dB typical change (200 matings)
Interchangeability	≤0.2dB
Insert-pull Test	500 times, IL＜0.5dB
Tensile Strength	>70N
Plug-in Times	>600
Operating Temperature	-40°C to +85°C

Key Features

Low insertion loss, high return loss
MT based multi-fiber connector with 4, 8, 12 and 24 fiber terminations
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options
Color coded housings for easy identification
Excellent repeatability and exchangeability

Product Benefits

High Quality: Factory pre-terminated, tested and packaged with test reports
Space Saving: Small diameters reduce cable volume and improve air conditioning
Time Efficient: Plug and play design reduces installation time

Applications

Designed for 100GBASE-SR10 CXP/CFP Interconnect Solution, 100GBASE-LR4 and high-density data centers. Optimized for 10/40/100G high-density data center applications.

High-density data center environments
Fiber to the building applications
Internal connections in fiber optic equipment

Technical Diagrams

Related Products

Zion Communication offers a comprehensive range of MTP-LC straight harness cables including:

7236037 ZCM11A12HIA8F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236038 ZCM11A22HIA: 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236039 ZCM11A52HIA: 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236040 ZCM11A17HAA: 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236041 ZCM11A27HAAX: 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236042 ZCM11A57HAA: 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236043 ZCM11A18HMA: 8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236044 ZCM11A28HMA: 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236045 ZCM11A58HMA: 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236046 ZCM21A12HIA: 8F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236047 ZCM21A22HIA: 12F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236048 ZCM21A52HIA: 24F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236049 ZCM21A17HAA: 8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236050 ZCM21A27HAA: 12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236051 ZCM21A57HAA: 24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236052 ZCM21A18HMA: 8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236053 ZCM21A28HMAX: 12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
7236054 ZCM21A58HMA: 24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

Connection Methods & Polarity

Three Connection Methods for MPO/MTP Polarity

Packaging & Customization

Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Carton selection depends on order quantity.

OEM/ODM Services Available

Custom cable colors, printing, and jacket materials
OEM labeling, identification rings, and cable labels

Custom packaging and shipping marks

Different quality levels available
