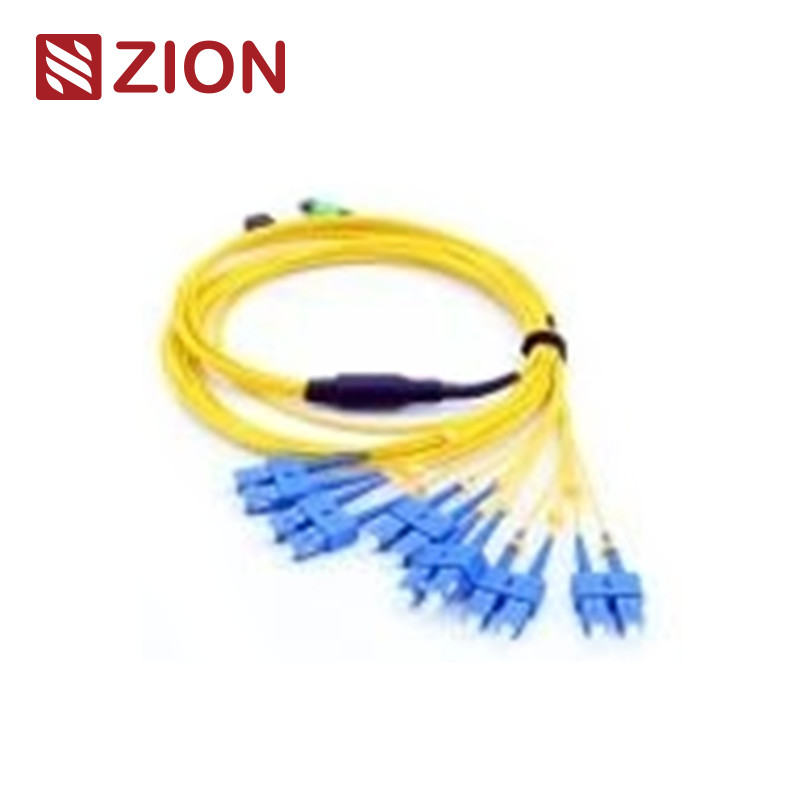

12 Fibers MTP to LC Single Mode Fiber Optic Cable
High-density 12F MTP SM Fiber Optic MTP-LC 2.0mm Straight Harness Cables designed for data center applications.
Product Identification
Zion Code: ZCM21A22HIAX
Description: 12F MTP SM Fiber Optic MTP-LC 2.0mm Straight Harness Cables
The MTP connector is a multi-fiber push-on connector type designed for high-density environments. This system is primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MTP connectors are classified according to EIA/TIA-604-5 standards by core count, gender (male/female), and polarity (PC or APC).
These 12-core MTP to 6 LC Duplex (or 12 LC Simplex) straight harness cable assemblies feature MTP connectors on one end and LC/SC/FC/ST connectors on the other. The fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connections and high-density data center applications.
Connector Industrial Standards
MPO Singlemode Reference: EIA/TIA-604-5
MPO Singlemode Housing: SM APC: Green connectors + black boot (Standard Loss MTP)
SM APC: Yellow connectors + black boot (Super Low Loss MTP)
MPO Multimode Reference: EIA/TIA-604-5
MPO Multimode Housing: OM1&OM2 PC: Beige connectors + black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors + black boot (Standard & Super Low Loss MTP)
OM3&OM4 PC: Heather Violet connectors + black boot (Standard Loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Optical Specifications
Insertion Loss (MPO) Singlemode: Standard loss: ≤0.75dB(max), ≤0.50dB(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (MPO) Multimode: Standard loss: ≤0.6dB(max), ≤0.50(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (LC/SC/FC/ST) Singlemode: ≤0.3dB
Insertion Loss (LC/SC/FC/ST) Multimode: ≤0.3dB
Return Loss (MPO) Singlemode: ≥60dB
Return Loss (MPO) Multimode: ≥25dB
Return Loss (LC/SC/FC/ST) APC: ≥60dB
Return Loss (LC/SC/FC/ST) UPC: ≥50dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: Above 600 times, IL <0.5dB
Tensile Strength: >70N
Plug-in Times: >600
Operating Temperature Singlemode: -40°C to +85°C
Key Features
- Low insertion loss, high return loss
- MT based multi-fiber connector supporting 4, 8, 12 and 24 fiber terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings for easy fiber type, polish type and connector grade identification
- Excellent repeatability and exchangeability
Applications
12F MPO-LC/SC/FC/ST Straight Harness Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center environments. Optimized for 10/40/100G high-density data center applications.
- High-density data center environments
- Fiber-to-the-building installations
- Internal connections within fiber optic equipment
Naming Rules & Order Confirmation
Related Products
7236037 ZCM11A12HIA: 8F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables
7236038 ZCM11A22HIA: 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables
7236039 ZCM11A52HIA: 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables
Connection Methods
Three connection methods help maintain proper MPO/MTP polarity:
MTP-12 x LC Simplex Structure - Type 1
MTP-6 x LC Duplex Structure - Type 2 Type A
MTP-6 x LC Duplex Structure - Type 2 Type B
MTP Polarity for MTP-6 x Uniboot LC Structure - Type 3
Material Details
Packaging
These fiber optic cables are packaged with OMC labeling and marking as standard. Available carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm, selected based on order quantity. Custom packaging options available.
OEM/ODM Services
- Custom cable color, printing, and jacket material
- OEM labeling, identification rings, cable labels, boxes, and shipping marks
- Different quality levels available
