24 Fibers OM4 MPO-LC Harness Cable 2.0mm Straight for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	500times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	24 Fibers MPO-LC Harness Cable , OM4 MPO-LC Harness Cable , 2.0mm Straight Fiber Optic Harness Cable

Product Description

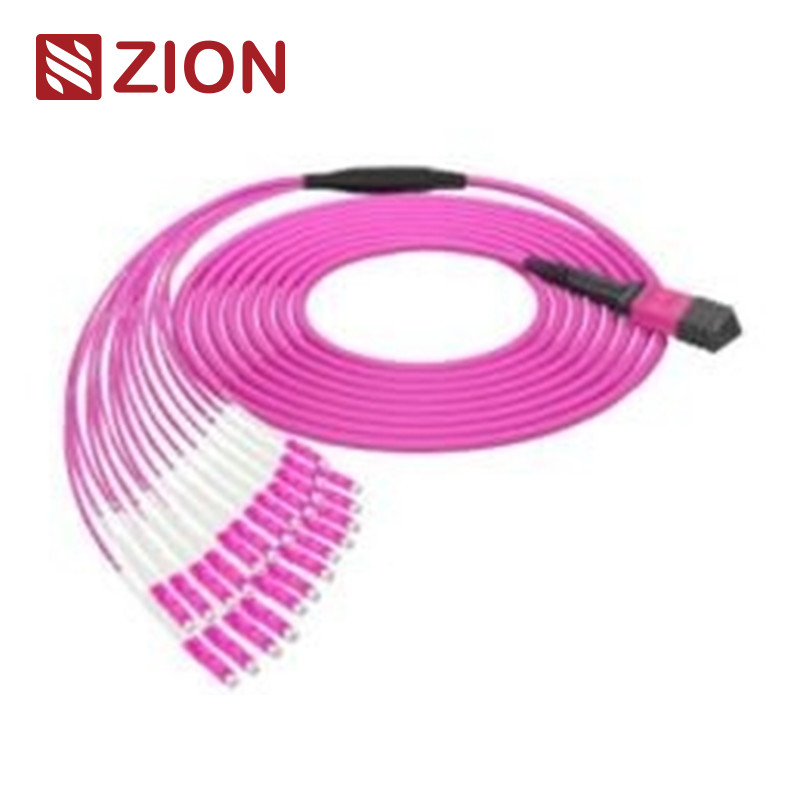

24 Fibers MPO to LC OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables

Product Identification

Zion Code: ZCM11A58HAAX
Description: 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight Harness Cables

MPO Connector Overview

The MPO (Multi-Fiber Push On) connector is a multi-core fiber connector type designed for high-density environments. This system is primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.

Connector Specifications

MPO connectors are classified according to IEC 61754-7 standards based on core count, gender (Male/Female), and polarity (PC or APC).

Product Configuration

24-core MPO Female to 12 LC Duplex (12xLC uniboot; 24 LC Simplex) harness cables feature MPO and LC/SC/FC/ST connectors on both ends. The 24 individual fanout cables (12 for LC uniboot; 24 LC Simplex) are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connections and high-density data center applications.

Industrial Standards Compliance

MPO Singlemode Reference: IEC 61754-7
MPO Multimode Reference: IEC 61754-7
Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

Connector Standards

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973
E2000: IEC61754-15

Available Fiber Types

G657A1, G657A2/B2, G657B3
OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 50/125, OM5 50/125

Optical Specifications

Insertion Loss (MPO) Singlemode: Standard: ≤0.75dB(max), ≤0.50dB(Typical); Super Low: ≤0.35dB(max), ≤0.20dB(Typical)

Insertion Loss (MPO) Multimode: Standard: ≤0.6dB(max), ≤0.50(Typical); Super Low: ≤0.35dB(max), ≤0.20dB(Typical)

Return Loss (MPO) Singlemode: ≥60dB

Return Loss (MPO) Multimode: ≥25dB

Durability: <0.3dB typical change (200 matings)

Interchangeability: ≤0.2dB

Insert-pull Test: 500 times, IL＜0.5dB

Tensile strength: >70N

Operating Temperature: -40°C to +85°C

Key Features

Low insertion loss, high return loss
MT based Multi-fiber Connector with 4,8,12 and 24 fiber terminations
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options
Color coded housings for fiber type and polish type differentiation
Excellent repeatability and exchangeability

Product Benefits

High quality factory pre-termination with test reports
Small diameters reduce cable volume and improve air-conditioning
Plug and play design reduces installation time

Applications

Designed for 100GBASE-SR10 CXP/CFP Interconnect Solution, 100GBASE-LR4 and high-density data centers. Optimized for 10/40/100G high-density data center applications. This 24 Fiber harness cable connects (12) SFP+ into MPO adapter panels and MPO trunks.

Connection Methods and Polarity

Material Details

Packaging Information

Factory pre-packaged with OMC labeling and marking. Standard carton sizes: 34*22*15 cm; 44*34*24 cm; 54*39*34 cm. Custom packaging available.

OEM/ODM Services

Custom cable color, printing, and jacket material
OEM Label, Identify ring, cable labels, and shipping marks
Different quality levels available
