24 Fibers MPO-LC OM3 Fiber Optic Harness Cable with 2.0mm Straight Design for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	500times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	24 Fibers MPO-LC Harness Cable , OM3 Fiber MPO-LC Harness Cable , 2.0mm Diameter Fiber Optic Harness Cable

Product Description

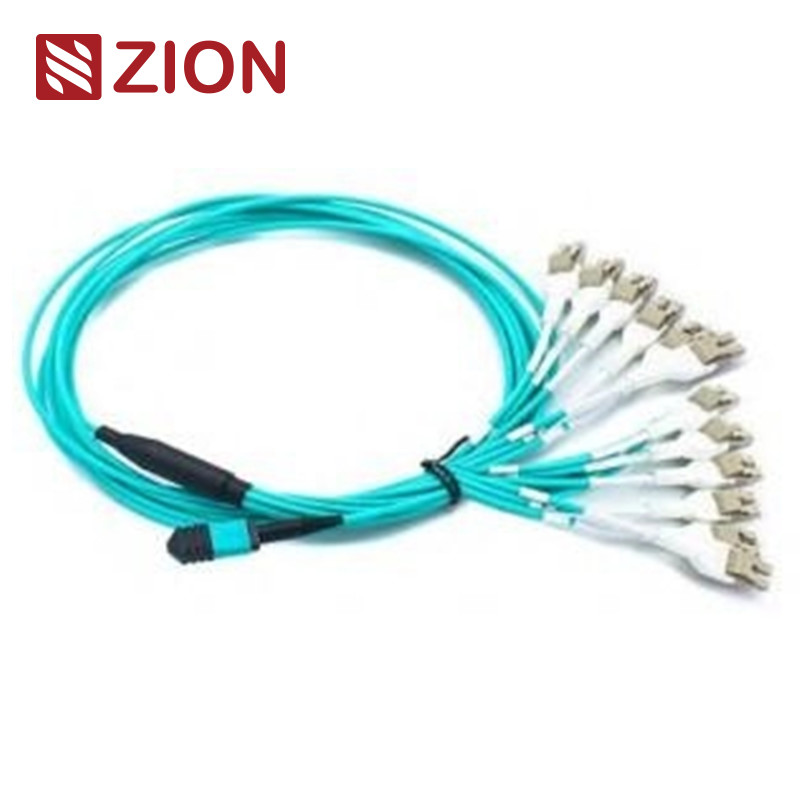

24 Fibers MPO to LC OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables

Zion Product Information

Zion Code: ZCM11A57HAAX

Zion Description: 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cables

The MPO connector is a multi-fiber push-on connector designed for high-density environments. These 24-core MPO Female to 12 LC Duplex harness cables are factory-terminated with MPO and LC connectors, optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.

Key Applications

Data centers with high-density environments
Fiber to the building installations
Internal connections in optical transceiver equipment
40G, 100G, and QSFP+ applications
100GBASE-SR10 CXP/CFP Interconnect Solutions

Connector Standards Compliance

MPO Standards: IEC 61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5)

MPO Housing Details:

OM3&OM4 PC: Aqua connectors + black boot (Standard & Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors + black boot (Standard loss MPO)

Other Connector Standards:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973
E2000: IEC61754-15

Optical Specifications

Insertion Loss (MPO) Multimode: Standard loss: ≤0.6dB(max), ≤0.50dB(Typical)
Insertion Loss (LC) Multimode: ≤0.3dB
Durability: <0.3dB typical change (200 matings)
Tensile Strength: >70N
Operating Temperature: -40°C to +85°C

Product Features

Low insertion loss, high return loss
MT-based multi-fiber connector with 24 fiber terminations
Economical solution for mass-termination of fiber
Designed for low loss and standard loss multimode applications
Color coded housings for easy fiber type identification
Excellent repeatability and exchangeability

Connection Methods and Polarity

Packaging & Customization

Standard carton sizes available: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Custom packaging available upon request.

OEM/ODM Services

Customization options include cable color, printing, jacket material, connector colors, labeling, and different quality levels.
