24 Fibers Singlemode MPO-LC Harness Cable 2.0mm Straight for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	500times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	24 Fibers MPO-LC Harness Cable , Singlemode MPO-LC Harness Cable , 2.0mm Straight Fiber Optic Harness Cable

Product Description

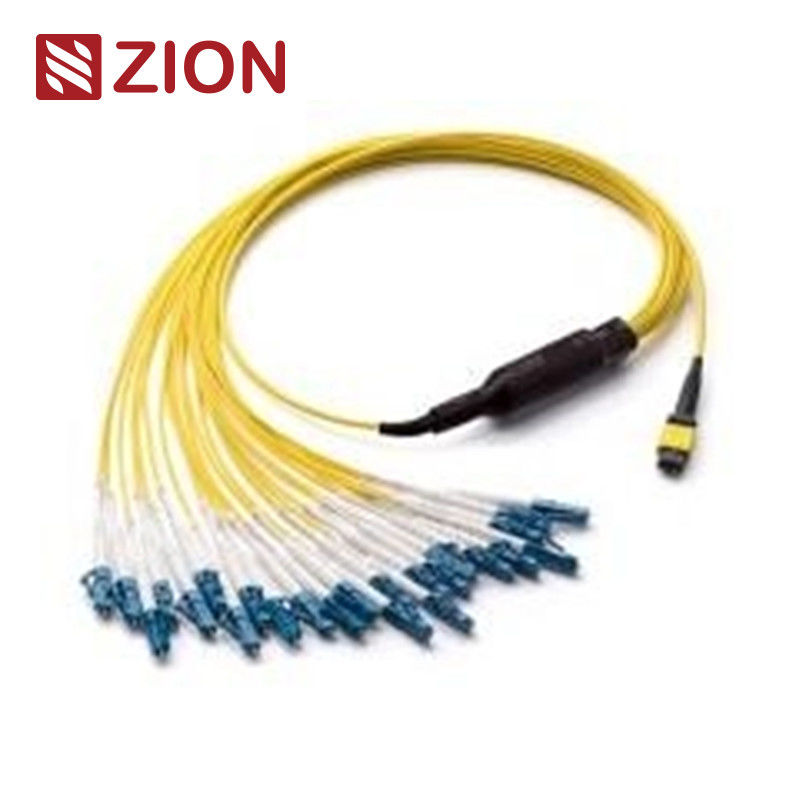

24 Fibers MPO to LC Singlemode Fiber Optic MPO-LC 2.0mm Straight Harness Cables

This 24-fiber MPO (Multi-Fiber Push On) to LC straight harness cable with 2.0mm cables is designed for high-density fiber optic applications in data centers.

Zion Code and Description

ZCM11A52HIAX - 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight Harness Cables

Product Features

Fiber Count: 24 fibers (MPO to LC)
Connectors: MPO (Female) on one end, LC (uniboot or simplex) on the other
Cable Type: 2.0mm straight harness with compact design
Length: Custom lengths available
Applications: High-density data centers, 40G QSFP+ PLR4 to 10G SFP+ LR optics, 100GBASE-SR10/LR4, 10/40/100G networks

MPO Connector Industrial Standards

Singlemode (APC): Green housing for standard loss, yellow for super low loss
Multimode (PC): OM1/OM2: Beige; OM3/OM4: Aqua or Heather Violet

Other Connectors Industrial Standards

SC: TIA/EIA, FOCIS3, GR-326, IEC61754-4
LC: TIA/EIA, FOCIS10, GR-326, IEC61754-20
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326, IEC61754-13
ST: TIA/EIA, FOCIS2, GR-326, IEC61754-2
E2000: IEC61754-15

Optical Specifications

Parameter	MPO	LC/SC/FC/ST
Insertion Loss	Standard: ≤0.75dB max, ≤0.50dB typical Super low: ≤0.35dB max, ≤0.20dB typical	≤0.3dB (IEC 61300-3-6)
Return Loss	≥60dB (8-degree polishing)	APC ≥60dB, UPC ≥50dB
Durability	<0.3dB typical change after 200 matings
Tensile Strength	>70N
Operating Temperature	-40°C to +85°C

Key Features

Low Insertion Loss for optimal signal transmission
High Return Loss for excellent high-speed network performance
MT-based Multi-fiber Connector supporting 4, 8, 12, and 24 fiber terminations
Space-saving compact design improves airflow and cable management
Factory pre-terminated and tested with quality assurance reports

Applications

High-density data centers with critical space requirements
Fiber optic to the building deployments
Internal connector applications in network equipment

Packaging

This fiber optical cable package is well-protected and labeled by OMC as default. Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Packing can be customized.

OEM/ODM Services

Customization available for cable color, printing, jacket material, connector colors, labels, identification rings, and packaging.
