8 Fibers Single-Mode MPO-LC Harness Cable 2.0mm Straight for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	500times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	MPO To LC Fiber Optic Harness Cables , 8 Fibers MPO To LC Fiber Cable

Product Description

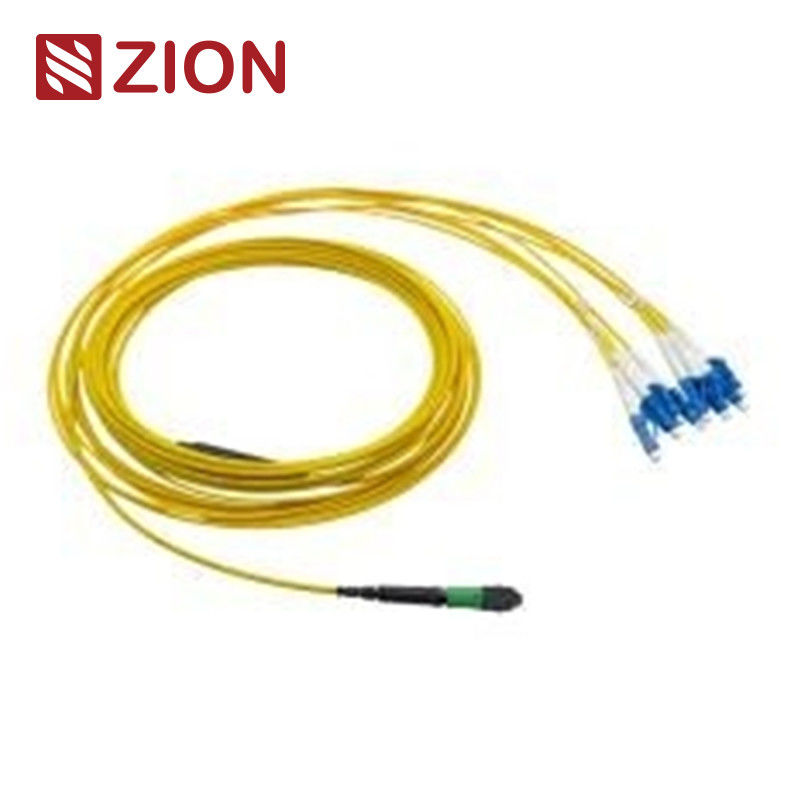

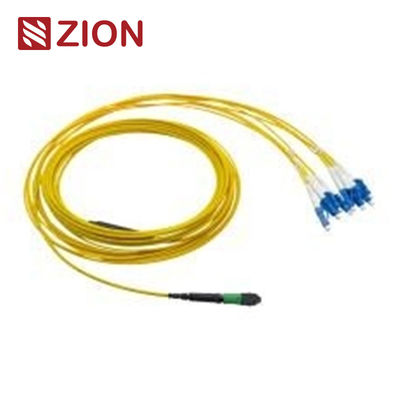

8F MPO Single-Mode Fiber Optic MPO-LC 2.0mm Straight Harness Cables

The 8F MPO Single-Mode Fiber Optic MPO-LC 2.0mm Straight Harness Cable is a high-quality, high-density fiber optic solution designed to simplify cable management and improve connectivity in advanced data center and network environments.

Featuring an 8-fiber MPO to LC fanout design, this cable is optimized for direct connections between 40G QSFP+ PLR4 ports and 10G SFP+ LR optics, eliminating the need for intermediate patch panels or trunks. Its small diameter and LSZH jacket ensure efficient space utilization, improved airflow, and compliance with stringent safety standards.

Key Features

Low Insertion Loss: Ensures efficient signal transmission with minimal attenuation
High Return Loss: Optimized for single-mode APC connections, ensuring robust performance
Durable and Reliable: Capable of withstanding 200 matings with minimal performance changes
Compact Design: Small diameter reduces cable volume, improving airflow and overall space efficiency
Plug-and-Play Design: Pre-terminated for fast and easy installation
Compliance Standards: Meets IEC-61754-7, IEC61755, Telcordia GR-1435-CORE, and TIA-568-C standards

Applications

This harness cable supports 10G, 40G, and 100G Ethernet applications and is particularly suited for:

Data center environments requiring high-density and low-maintenance solutions
Fiber-to-the-building (FTTB) connections
Internal fiber equipment interconnections, including optical transceivers like QSFP+ and SFP+
Enterprise Networks: Simplifies complex cabling setups and minimizes installation time
Optical Equipment: Ideal for connecting fiber transceivers and splitters

Connector Specifications

Connector Type	Insertion Loss	Return Loss
MPO Single-Mode (APC)	≤0.75dB max (Standard) ≤0.35dB max (Super Low Loss)	≥60dB
LC/SC/FC/ST	≤0.3dB	APC ≥60dB, UPC ≥50dB

Industrial Compliance

MPO Connectors: IEC 61754-7 standard
LC/SC/FC/ST Connectors: Compliant with IEC61754 series, TIA/EIA standards, and GR-326

Available Fiber Types

Single-Mode: G657A1, G657A2/B2, G657B3
Multimode: OM1, OM2, OM3, OM4, OM5

Product Advantages

High Quality: Factory pre-terminated and tested with certified results
Space-Saving Design: Compact construction reduces cable clutter in high-density environments
Time-Efficient Installation: Plug-and-play compatibility for reduced setup times

Connection Methods for MTP/MPO Polarity

MPO - 8 x LC Simplex Structure - Type 1

MPO - 4 x LC Duplex Structure - Type 2

MPO - 4 x Uniboot LC Structure - Type 3

Packaging

This easily handled and well-protected fiber optical cable package has been labeled and marked by OMC as default. Standard carton sizes: 34*22*15 cm; 44*34*24 cm; 54*39*34 cm. Which carton to be used depends on goods quantity. Packing can be customized.

OEM/ODM Services

Cable color, printing word, material of cable jacket, connector's color
OEM Label, Identify ring, cable's label, box, shipping marks
Different quality levels available
