24 Fibers MTP-LC Fan-Out 0.9mm 30-35cm Fiber Optic Patch Cable for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Tensile Strength:	>70N	Insert-pull Test:	Above 600 Times, IL＜0.5dB
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	24 Fibers Mpo To Lc Fiber Cable , Fan out 0.9mm MTP To LC Cable

Product Description

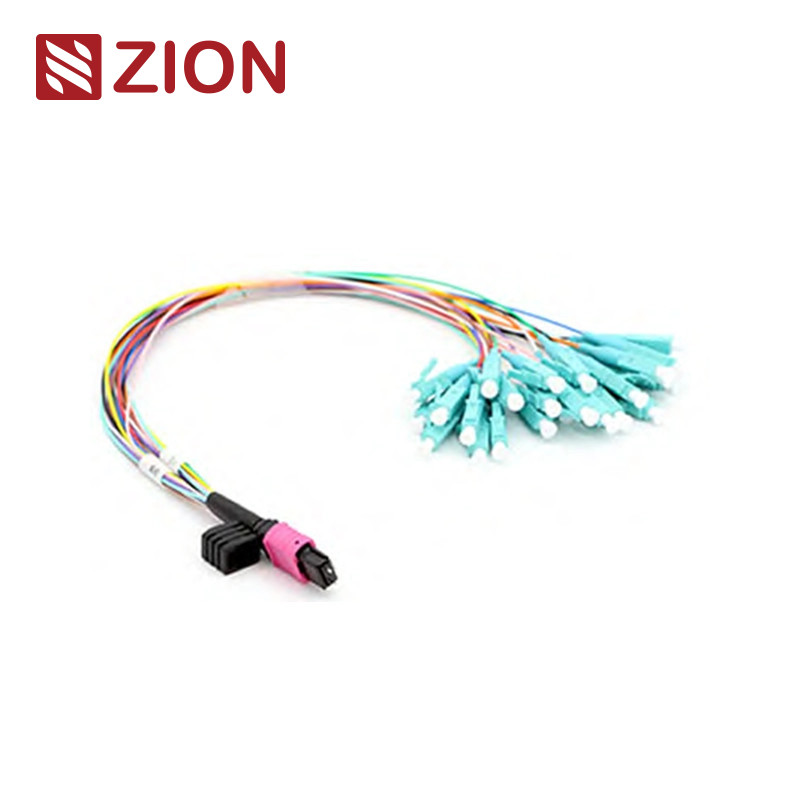

24 Fibers MTP to LC Fan-Out Patch Cable

24F MTP(male) - LC Fan-out 0.9mm 30-35cm Patch Cable

Product Identification

Zion Code: ZCM26157X
Zion Description: 24F MTP(male) - LC Fan-out 0.9mm 30-35cm Patch cable

Product Overview

The MTP connector is a multi-fiber push-on connector designed for high-density fiber optic applications. This 24-fiber harness cable is optimized for connecting (12) SFP+ ports into an MTP adapter panel and MTP trunk systems.

Key Applications

100GBASE-SR10 CXP/CFP Interconnect Solutions
100GBASE-LR4 and high-density data centers
10/40/100G high-density data center applications
MTP-LC LGX module cassettes
High-density fiber patching in space-constrained environments

MTP Connector Standards

Reference: IEC 61754-7

Singlemode APC: Green connectors + black boot (Standard Loss MPO)

Singlemode APC: Yellow connectors + black boot (Super Low Loss MPO)

Multimode PC: OM1&OM2: Beige connectors + black boot

Multimode PC: OM3&OM4: Aqua connectors + black boot

Multimode PC: OM3&OM4: Heather Violet connectors + black boot

Compliance Standards

IEC 61754-7, IEC 61755, Telcordia GR-1435-CORE
JIS C5982; TIA-604-5 (FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3 compliant

Other Connector Standards

SC: TIA/EIA, FOCIS3, GR-326, NTT-SC, IEC 61754-4, JIS C5973
LC: TIA/EIA, FOCIS10, GR-326, EIA/TIA-604-10, IEC 61754-20, JIS C5973
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326, IEC 61754-13, JIS C5973
ST: TIA/EIA, FOCIS2, GR-326, IEC 61754-2, JIS C5973
E2000: IEC 61754-15

Available Fiber Types

G657A1, G657A2/B2, G657B3
OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 50/125, OM5 50/125

Optical Specifications

Parameter	Singlemode (APC)	Multimode (PC)
Insertion Loss (MPO)	Standard: ≤0.75dB (max) Super Low: ≤0.35dB (max)	Standard: ≤0.6dB (max) Super Low: ≤0.35dB (max)
Insertion Loss (LC/SC/FC/ST)	≤0.3dB	≤0.3dB
Return Loss (MPO)	≥60dB	≥25dB
Return Loss (LC/SC/FC/ST)	APC: ≥60dB; UPC: ≥50dB	≥35dB
Durability	<0.3dB typical change (200 matings)
Interchangeability	≤0.2dB
Insert-pull Test	Above 600 times, IL <0.5dB
Tensile Strength	>70N
Operating Temperature	-40°C to +85°C	-40°C to +85°C

Key Features

Low insertion loss, high return loss
MT-based multi-fiber connector with 8, 12, and 24 fiber terminations
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options
Color-coded housings for easy fiber type identification
Excellent repeatability and exchangeability

Primary Applications

High-density data center environments
Fiber to the building installations
Internal connector applications in fiber equipment
