Zion Code and Description
Zion Code: ZCM16157X

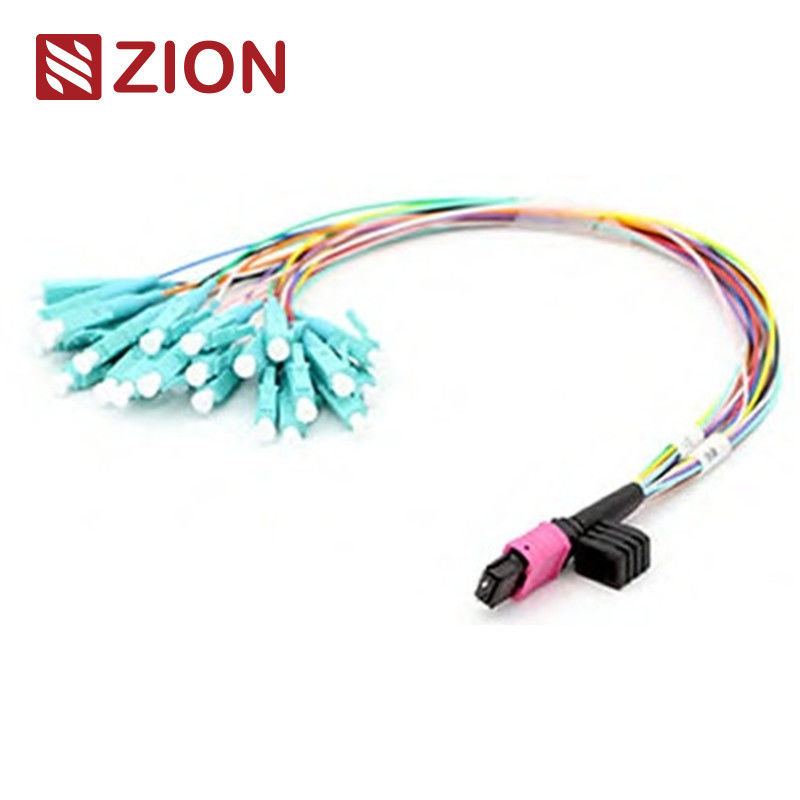

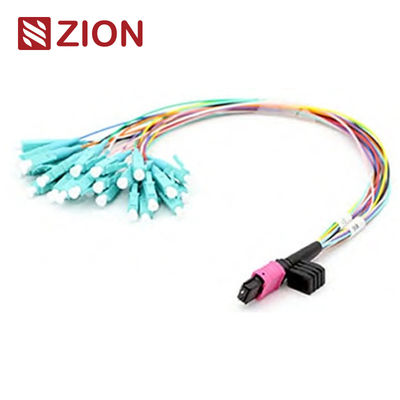

Zion Description: 24F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Product Overview
The 24F MPO-LC Fan-out Patch Cable is designed to connect 24-fiber MPO connectors to LC connectors,
which is ideal for high-density data center environments. This high-performance cable is optimized for 10G, 40G,
and 100G applications, such as 100GBASE-SR10 CXP/CFP interconnect solutions and 100GBASE-LR4 optical
links. It is a short patch cable, with lengths ranging from 30 to 35 cm, offering compactness and flexibility in
space-constrained environments.
Technical Specifications
- Fiber Configuration: 24-fiber MPO to 12 LC fibers (Fan-out configuration).
- Cable Type: 0.9mm round patch cable.
- Length: 30-35cm, designed for short patch connections.
- Connector Types:
MPO Connector: Male (IEC 61754-7 compliant).
LC Connector: Single-fiber connectors on the other end.
Available with various configurations like LC/SC/FC/ST terminations.
Industrial Standards
- MPO Connector:
- Singlemode (APC 8-degree polished):
- SM APC (Green connectors + black boot) for standard loss MPO.
- SM APC (Yellow connectors + black boot) for super low loss MPO.
- Multimode (PC Flat polish):
- OM1&OM2 PC (Beige connectors + black boot) for standard loss MPO.
- OM3&OM4 PC (Aqua connectors + black boot) for standard and super low loss MPO.
- Meets Standards:
IEC 61754-7, IEC 61755, Telcordia GR-1435-CORE, JIS C5982
TIA-604-5 (FOCIS5) compliant (Structured cabling per TIA-568-C).
10G Fiber Channel Compliant.
IEEE 802.3 (40G and 100G compliant).
Key Features
-
Low Insertion Loss & High Return Loss:
Ensures stable and efficient signal transmission, minimizing signal loss.
-
Multi-Fiber MPO Connector:
24-fiber MPO connectors support high-speed transmission and enable space-saving in high-density installations.
-
Optimized for High-Speed Applications:
- Compatible with 100GBASE-SR10, 100GBASE-LR4, and 40GBASE-SR4 applications.
- Designed for data center connectivity and fiber optic to building solutions.
-
Durability & Reliability:
Tested for 200 matings with less than 0.3dB insertion loss change.
- Tensile strength: Rated above 70N for reliable physical performance.
-
High-Quality Fiber Materials:
Fiber types available for various applications, such as OM1, OM2, OM3, OM4, OM5, and G657A/B fibers.
Applications
-
Data Centers:
Designed to handle the high-density cabling requirements of data centers.
-
Fiber Optic to Building (FTTB):
Used for connecting fiber optic infrastructure to buildings.
-
Transceiver Equipment:
Internal fiber connections for high-speed optical devices (e.g., QSFP+, 100G optical transceivers).
-
High-Density Networks:
Ideal for networks requiring optimized, low-profile, high-bandwidth connections.
Zion Communication's Hot MPO– LC Fanout 0.9mm cable
- ZCM16117X – 8F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Fiber Count: 8 fibers (MPO to LC)
Connector Types: MPO (Male) on one end, LC connectors on the other end.
Cable Type: 0.9mm, high-density fan-out patch cable.
Length: 30-35 cm, designed for short patch connections.
Application: Suitable for high-density data centers and network environments requiring compact, reliable
fiber connections.
- ZCM16127X – 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Fiber Count: 12 fibers (MPO to LC)
Connector Types: MPO (Male) and LC connectors.
Cable Type: 0.9mm fan-out cable, designed for compact patching solutions.
Length: 30-35 cm.
Application: Ideal for high-speed applications, including 40G and 100G networks in data centers.
- ZCM16157X – 24F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Fiber Count: 24 fibers (MPO to LC)
Connector Types: MPO (Male) and LC connectors.
Cable Type: 0.9mm patch cable, offering high-density, space-efficient connectivity.
Length: 30-35 cm.
Application: Optimized for use in 100G and 40G data center connections and high-speed fiber optic networks.
- ZCM26117X – 8F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Fiber Count: 8 fibers (MTP to LC)
Connector Types: MTP (Male) on one end, LC connectors on the other.
Cable Type: 0.9mm fan-out cable.
Length: 30-35 cm.
Application: Used in high-density data center environments for interconnects between MTP and LC-based
network devices.
- ZCM26127X – 12F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Fiber Count: 12 fibers (MTP to LC)
Connector Types: MTP (Male) to LC connectors.
Cable Type: 0.9mm cable for efficient fiber management.
Length: 30-35 cm.
Application: Suited for 40G and 100G networks, ideal for high-density environments like data centers.
- ZCM26157X – 24F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Fiber Count: 24 fibers (MTP to LC)
Connector Types: MTP (Male) and LC connectors.
Cable Type: 0.9mm high-density fan-out cable.
Length: 30-35 cm.
Application: Perfect for 100G, 40G, and high-density data center applications requiring space-efficient patching.
Naming Rules&Order Confirmation Information:
Connector Fiber Channel
Material’s details
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .
Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.
OEM/ODM service for you
- Cable color, printing word, material of cable jacket, connector’s color
- OEM Label, Identify ring, cable’s label,box, shipping marks
- Different quality Level.
