Zion Code and Description for Patch Cable

Zion Code: ZCM16117X

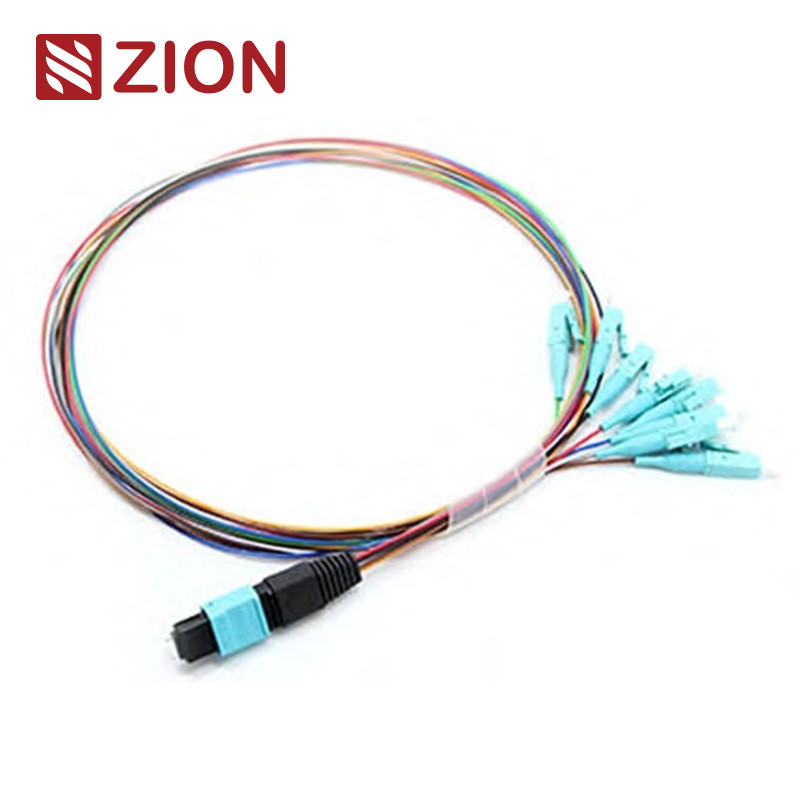

Zion Description: 8F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

Product Description

This patch cable is an 8-fiber MPO (Male) to LC fan-out cable with a 0.9mm diameter and a length of 30-35cm. The MPO connector is widely used in high-density environments such as data centers and optical fiber applications. It is optimized for connecting high-speed networks, including 40G and 100G applications using QSFP+ and SFP+ optics. The cable connects directly from QSFP+ ports to 10G SFP+ ports, bypassing the need for patch panels or intermediate trunks, making it ideal for space-saving and streamlined connections in dense fiber environments.

Features

• Low Insertion Loss & High Return Loss: Ensures excellent signal quality with minimal signal loss.
• MPO-based Multi-fiber Connector: Supports 8, 12, and 24 fiber connector terminations and assemblies, offering flexibility in various fiber configurations.
• High-Density Applications: Perfect for use in data centers, fiber-to-building connections, and internal optical fiber equipment applications.
• Standard Loss and Super Low Loss Options: Available in both standard and super low loss configurations for Singlemode (SM) and Multimode (MM) applications.
• Ruggedized Cable Options: Available with round cables, oval cables, and bare ribbon options to suit various installation needs.
• Color-Coded Housings: Helps differentiate between fiber types, polish types, and connector grades for easy identification.
• Repeatability and Exchangeability: Ensures reliability and ease of maintenance with good durability and interchangeability.

Connectors’ Industrial Standard

• MPO Connectors:

Singlemode (SM): Compliant with IEC 61754-7; includes APC (Angled Physical Contact) for standard and super low-loss                                              versions.

Multimode (MM): Compliant with IEC 61754-7; includes OM1, OM2, OM3, and OM4 types, with PC (Physical Contact) for                                            standard and super low-loss versions.

• LC, SC, FC, and ST Connectors: Compliant with standards like TIA/EIA, FOCIS, GR-326, and IEC61754-2.

Optical Specifications

• Insertion Loss (MPO):

Singlemode: ≤0.75dB (Standard Loss), ≤0.35dB (Super Low Loss)

Multimode: ≤0.6dB (Standard Loss), ≤0.35dB (Super Low Loss)

• Return Loss:

MPO: ≥60dB (Singlemode, 8-degree polished), ≥25dB (Multimode)

LC/SC/FC/ST: APC ≥60dB, UPC ≥50dB

• Durability: Less than 0.3dB typical change after 200 matings.

• Tensile Strength: Greater than 70N.

• Operating Temperature: -40°C to +85°C.

Applications

• Data Centers: Used for high-density applications, reducing cable management complexity.
• Fiber Optic to Building (FTTB): For seamless fiber connectivity in building installations.
• Fiber Equipment: Ideal for internal connections within optical devices, transceivers, and other fiber optic equipment, especially for high-performance setups.

Zion Code and Description for Patch Cables:

• Zion Code: 7236031

Zion Description: 8F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: 7236032

Zion Description: 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: 7236033

Zion Description: 24F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: 7236034

Zion Description: 8F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: 7236035

Zion Description: 12F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

• Zion Code: 7236036

Zion Description: 24F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable

Naming Rules&Order Confirmation Information:

Material’s details

Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .

Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .

Packing can be customized.

OEM/ODM service for you

• Cable color, printing word, material of cable jacket, connector’s color
• OEM Label, Identify ring, cable’s label,box, shipping marks
• Different quality Level.
