24 Fibers MTP OM3 Fiber Optic Loopback Module / Cable

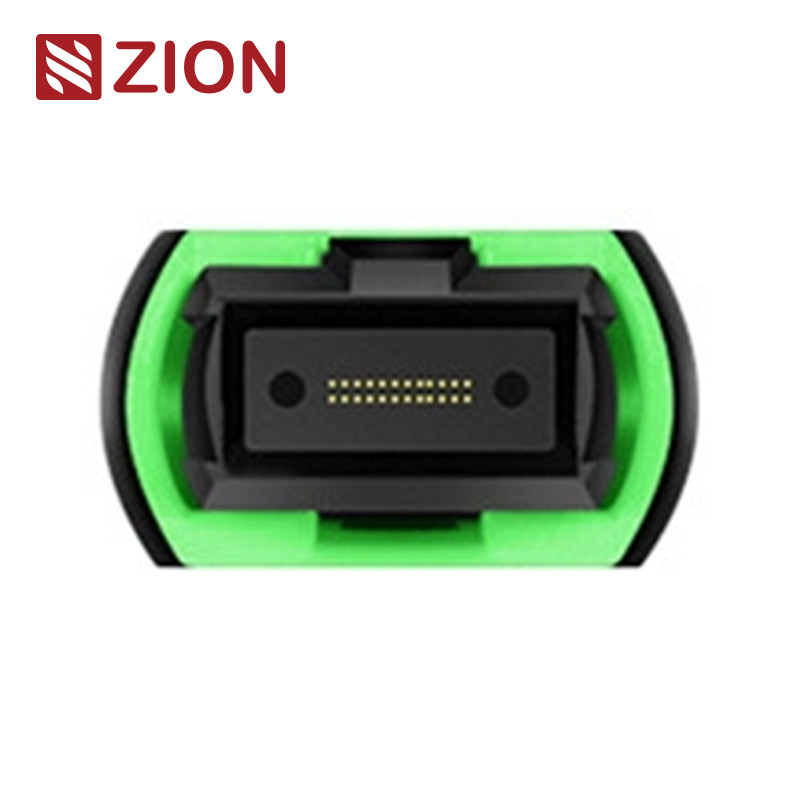

The 24F MTP OM3 Fiber Optic Loopback Module/Cable is designed for testing and verification of high-speed network equipment in 40G and 100G applications.
Zion Code and Description
Zion Code: ZCM2146HXA1
Zion Description: 24F MTP OM3 Fiber Optic Loopback Module /Cable
The MTP loopback contains fiber optic cable with both ends terminated in an MTP connector, creating a looped signal path within the same connector. This enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals, it helps locate various potential issues and provides effective testing and evaluation of individual components or interfaces on fiber optic networks.
Available in various configurations including 8-core, 12-core, and 24-core MTP connectors with different fiber configurations to accommodate various test port requirements.
Application Capabilities
- 8F MTP Fiber Loopback Module: Verification and testing of transceivers with MTP interface - 40GBASE-SR4/CSR4 QSFP+ devices
- 12F MTP Fiber Loopback Module: Verification and testing of transceivers with MTP interface - 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices
- 24F MTP Fiber Loopback Module: Verification and testing of transceivers with MTP interface - 100GBASE-SR10 CXP/CFP devices
MTP Loopback modules provide looped signals to test transmit and receiving functions, widely used within testing environments especially for parallel optics 40G and 100G networks. They link Transceivers (TX) and Receivers (RX) positions of MTP transceiver interfaces and facilitate insertion loss testing of optical network segments.
Connector Industrial Standards
MTP Singlemode
Reference: EIA/TIA-604-5
Housing Details: SM APC: Green connectors + black boot (Standard Loss MTP)
SM APC: Yellow connectors + black boot (Super low loss MTP)
MTP Multimode
Reference: EIA/TIA-604-5
Housing Details:
- OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MTP)
- OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super low loss MTP)
- OM3 & OM4 PC: Heather Violet connectors + black boot (Standard loss MTP)
Compliance Standards
- Meets IEC Standard IEC-61754-7; IEC61755
- Telcordia GR-1435-CORE compliant
- JIS C5982; TIA-604-5 (FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Optical Specifications
| Fiber Type | Singlemode |
| Fiber Diameter | 9/125um |
| Insertion Loss | SM (G657A1) < 1.0dB |
| Return Loss | SM > 50dB |
| Insert-pull Test | Above 600 times, IL < 0.5dB |
| Operation Temperature | -40℃ to +80℃ |
Fiber Optic Loopback Testing
A loopback test sends a signal from a communication device and loops it back to determine proper functionality or troubleshoot defective network nodes. Optical loopbacks verify the operational reliability of devices by routing the signal emitted from the transmit (Tx) end back to the receive (Rx) end of the same component.
Practical Applications
Fiber optic loopback testing is commonly used for checking fiber optic transceivers. Since transceivers have separate ports for receiving and transmitting signals, loopback testing provides a convenient method for transceiver maintenance. The testing process compares transmitted patterns with received patterns to ensure they are identical and error-free.
- Collocated with 40G or 100G MPO/MTP interface transceivers
- Testing transmission capability and receiver sensitivity of fiber optic network equipment
Naming Rules & Order Confirmation Information
Connector and Fiber Channel
Polarity (Channel Alignment)
Selection Guide for Specific Transceivers
When selecting a loopback for a transceiver, consider connector type, polish type, and cable type. The following tables provide selection guidance for commonly used transceiver modules.
Zion Communication's Hot MPO/MTP Fiber Optic Loopback Products
7236013 ZCM1111HXA
8F MPO SM Fiber Optic Loopback Module /Cable
7236014 ZCM1121HXA
12F MPO SM Fiber Optic Loopback Module/Cable
7236015 ZCM1141HXA
24F MPO SM Fiber Optic Loopback Module /Cable
7236016 ZCM1116HXA
8F MPO OM3 Fiber Optic Loopback Module /Cable
7236017 ZCM1126HXA
12F MPO OM3 Fiber Optic Loopback Module /Cable
7236018 ZCM1146HXA
24F MPO OM3 Fiber Optic Loopback Module /Cable
7236019 ZCM1117HXA
8F MPO OM4 Fiber Optic Loopback Module /Cable
7236020 ZCM1127HXA
12F MPO OM4 Fiber Optic Loopback Module /Cable
7236021 ZCM1147HXA
24F MPO OM4 Fiber Optic Loopback Module /Cable
Packaging
This fiber optic cable package is designed for easy handling and optimal protection, labeled and marked by OMC as default.
Standard carton sizes:
- 34 × 22 × 15 cm
- 44 × 34 × 24 cm
- 54 × 39 × 34 cm
Carton selection depends on order quantity. Custom packaging options available.
OEM/ODM Services
Customization options include:
- Cable color, printing text, cable jacket material
- Connector color options
- OEM labeling, identification rings, cable labels
