12 Fibers MTP OM3 Fiber Optic Loopback Module / Cable
Zion Product Information
Zion Code: ZCM2126HXA1

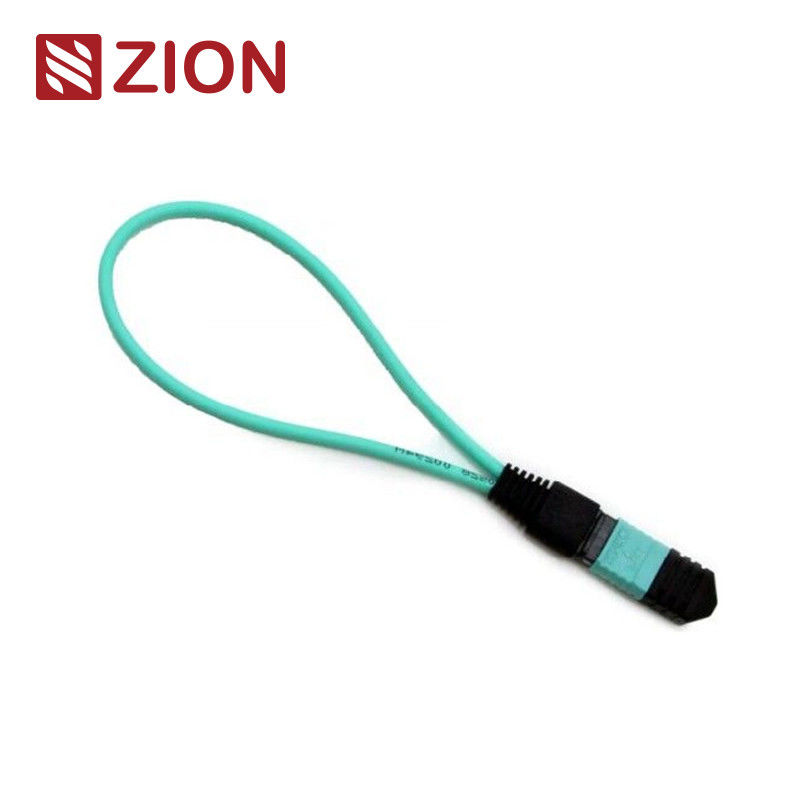

Description: 12F MTP OM3 Fiber Optic Loopback Module / Cable
The MTP loopback contains MTP fiber optic cable configured in a loopback arrangement, with both ends terminated in an MTP connector to create a continuous light path within the same connector. This configuration enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals back to the source, it helps identify various network phenomena and facilitates effective testing and evaluation of individual components or interfaces within fiber optic networks.
Available in multiple optical fiber configurations accommodating 8-core, 12-core, and 24-core MTP connectors to match various test port requirements. The 12F MTP Fiber Loopback Module specifically allows verification and testing of transceivers featuring MTP interfaces for 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices.
MTP Loopback modules provide looped signals to test transmit and receiving functions, widely used within testing environments, especially in parallel optics 40G and 100G networks. Loopbacks connect Transceiver (TX) and Receiver (RX) positions of MTP transceiver interfaces and can facilitate insertion loss testing of optical network segments when connected to MTP trunks and patch leads.
Connector Industrial Standards
MTP Singlemode
Reference: EIA/TIA-604-5
Housing Details:
• SM APC: Green connectors + black boot (Standard Loss MTP)
• SM APC: Yellow connectors + black boot (Super low loss MTP)
MTP Multimode
Reference: EIA/TIA-604-5
Housing Details:
• OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MTP)
• OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super low loss MTP)
• OM3 & OM4 PC: Heather Violet connectors + black boot (Standard loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 Compliant
Optical Specifications
| Fiber Type | Singlemode |
| Fiber Diameter | 9/125μm |
| Insertion Loss | SM(G657A1) < 1.0dB |
| Return Loss | SM > 50dB |
| Insert-pull Test | Above 600 times, IL < 0.5dB |
| Operation Temperature | -40℃ to +80℃ |
Fiber Optic Loopback Testing
A loopback test involves sending a signal from a communication device and looping it back to the same device to verify proper functionality or troubleshoot defective network nodes. For fiber optic loopback testing, optical loopbacks verify the operational reliability of devices by routing the signal emitted from the transmit (Tx) end back to the receive (Rx) end of the same component.
Applications
Fiber optic loopback testing is commonly used for checking fiber optic transceivers. Since transceivers have separate ports for receiving and transmitting light signals, testing these ports is essential for maintenance. The testing process routes the laser signal from the transmitter port back to the receiver port, then compares transmitted and received patterns to ensure they are identical and error-free.
- Collocated with 40G or 100G MPO/MTP interface transceivers
- Used for testing transmission capability and receiver sensitivity of fiber optic network equipment
Naming Rules & Order Confirmation Information
Polarity (Channel Alignment)
Transceiver Selection Guide
When selecting a loopback for a specific transceiver, consider connector type, polish type, and cable type. The following tables provide selection guidance for commonly used transceiver modules.
This guide covers specific fiber loopback choices for commonly used fiber optic transceivers. For modules not mentioned, selection can be determined by examining interface type, physical contact, and cable type specifications.
Zion Communication MPO/MTP Fiber Optic Loopback Products
Popular MPO/MTP Loopback Models:
7236013 ZCM1111HXA: 8F MPO SM Fiber Optic Loopback Module / Cable
7236014 ZCM1121HXA: 12F MPO SM Fiber Optic Loopback Module / Cable
7236015 ZCM1141HXA: 24F MPO SM Fiber Optic Loopback Module / Cable
7236016 ZCM1116HXA: 8F MPO OM3 Fiber Optic Loopback Module / Cable
7236026 ZCM2126HXA: 12F MTP OM3 Fiber Optic Loopback Module / Cable
7236027 ZCM2146HXA: 24F MTP OM3 Fiber Optic Loopback Module / Cable
7236028 ZCM2117HXA: 8F MTP OM4 Fiber Optic Loopback Module / Cable
7236029 ZCM2127HXA: 12F MTP OM4 Fiber Optic Loopback Module / Cable
7236030 ZCM2147HXA: 24F MTP OM4 Fiber Optic Loopback Module / Cable
Packaging
Fiber optic cables are packaged in easily handled, well-protected packaging labeled and marked by OMC as default. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on order quantity. Custom packaging options are available.
OEM/ODM Services
Customization options include:
- Cable color, printing text, cable jacket material, connector color
- OEM Labels, identification rings, cable labels, boxes, shipping marks
- Different quality levels to meet specific requirements
Related Products
 | 8F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable | Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components |
| 12F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable | Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components |
| 24F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable | Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components |
