12 Fiber MTP Singlemode Fiber Optic Loopback Module for 40/100G Network Testing

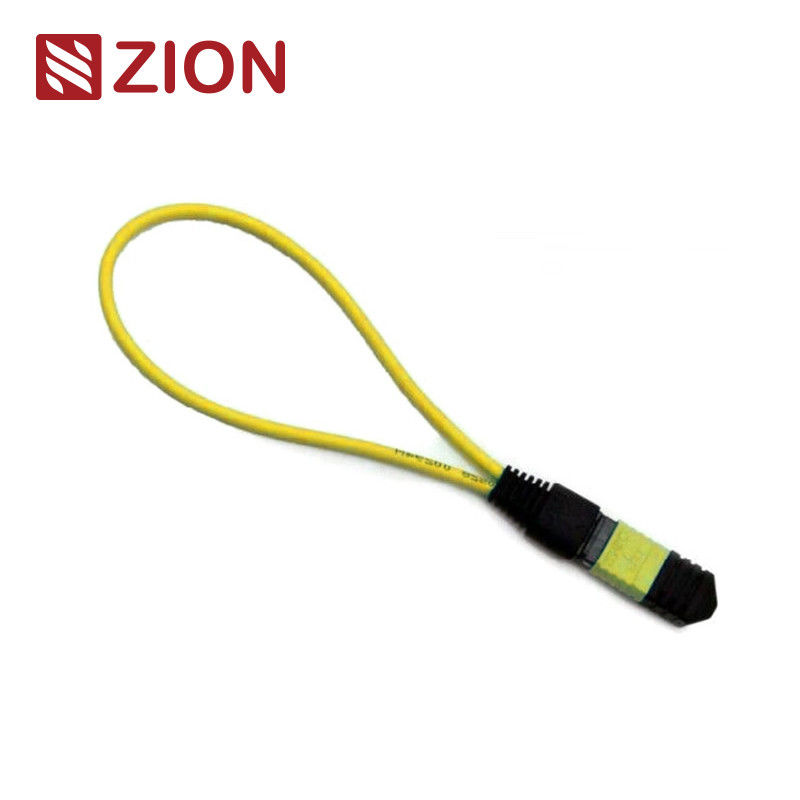

12F MTP SM Fiber Optic Loopback Module/Cable

The MTP loopback contains MPO fiber jumpers configured in a loopback arrangement, with both ends of the fiber terminated in an MTP connector to create an optical path within the same connector. This configuration enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals, it helps identify various potential issues and facilitates effective testing and evaluation of individual components or interfaces within fiber optic networks.

Available in multiple configurations, these loopback modules accommodate 8-core, 12-core, and 24-core MTP connectors with various fiber configurations to match test port requirements. The 12F MTP Fiber Loopback Module specifically verifies and tests transceivers with MTP interfaces for 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices.

MTP Loopback modules provide looped signals to test transmit and receive functions. They are widely used in testing environments, especially within parallel optics 40G and 100G networks. Loopbacks connect Transceiver (TX) and Receiver (RX) positions of MTP transceiver interfaces, facilitating and accelerating insertion loss (IL) testing of optical network segments when connected to MTP trunks or patch leads.

MPO Singlemode Reference: IEC 61754-7
MPO Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode Reference: IEC 61754-7
MPO Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

A loopback test involves sending a signal from a communication device and looping it back to the same device to verify proper functionality or troubleshoot defective network nodes. For fiber optic loopback testing, optical loopbacks verify the operational reliability of devices. Using fiber optic loopback cables or modules for data transmission, the signal emitted by the device is looped from the transmit (Tx) end of an active component back to the receive (Rx) end of the same component.

12F MPO-LC/SC/FC/ST Straight harness cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center applications. Optimized for 10/40/100G high-density data center environments.

All OMC MPO Connectors are sourced from Senko/Nissin/Sumitomo. MPO Fiber Patch Cords are high-density cable assemblies used in three primary areas:

When selecting a loopback for a transceiver, consider connector type, polish type, and cable type. The following tables provide selection guidance for commonly used transceiver modules.

These fiber optic cables are packaged in easily handled, well-protected packaging labeled and marked by OMC as standard. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. The specific carton used depends on the quantity of goods ordered. Custom packaging options are available.

We offer comprehensive OEM/ODM services including:
