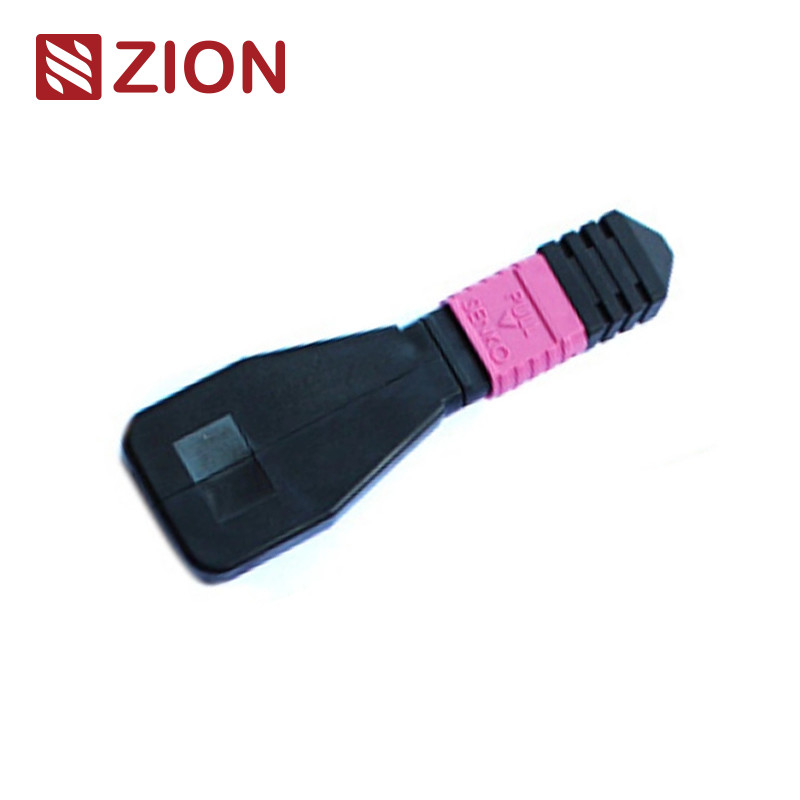

24 Fibers MPO OM4 Fiber Optic Loopback Module / Cable
High-performance MPO OM4 fiber optic loopback module designed for testing and verification of network equipment in 40G/100G data center environments.
Product Identification
Zion Code: ZCM1117HXA1
Zion Description: 8F MPO OM4 Fiber Optic Loopback Module /Cable
Product Overview
The MPO loopback contains MPO back ring jumping lines in the LOOPBACK configuration, connecting both ends of the fiber into an MPO connector to create a complete light path within the same connector. This enables comprehensive testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications.
By returning signals to the source, these loopbacks effectively locate various network phenomena and provide reliable testing and evaluation of individual components or interfaces within fiber optic networks.
Configuration Options
Available in multiple optical fiber circuit configurations to accommodate 8-core, 12-core, and 24-core MPO connectors with various fiber configurations to match specific test port requirements.
- 8F MPO Fiber Loopback Module: Verifies and tests transceivers with MPO interface - 40GBASE-SR4/CSR4 QSFP+ devices
- 12F MPO Fiber Loopback Module: Verifies and tests transceivers with MPO interface - 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices
- 24F MPO Fiber Loopback Module: Verifies and tests transceivers with MPO interface - 100GBASE-SR10 CXP/CFP devices
Testing Applications
MPO Loopback modules provide looped signals to test both transmit and receiving functions. Widely used within testing environments, especially in parallel optics 40G and 100G networks.
Loopbacks are specifically engineered to link Transceivers (TX) and Receivers (RX) positions of MPO transceiver interfaces. They facilitate and accelerate Insertion Loss (IL) testing of optical network segments by connecting to MPO trunks and patch leads.
Connector Standards
MPO Singlemode
Reference: IEC 61754-7
Housing Details:
- SM APC: Green connectors + black boot (Standard Loss MPO)
- SM APC: Yellow connectors + black boot (Super low loss MPO)
MPO Multimode
Reference: IEC 61754-7
Housing Details:
- OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MPO)
- OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super low loss MPO)
- OM3 & OM4 PC: Heather Violet connectors + black boot (Standard loss MPO)
Compliant with IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) for structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3 Compliant
Materials Details
Optical Specifications
| Parameter |
Specification |
| Fiber Type |
Multimode |
| Fiber Diameter |
50/125um, 62.5/125um |
| Insertion Loss |
MM < 1.0dB |
| Return Loss |
MM > 25dB |
| Insert-pull Test |
500 times, IL < 0.5dB |
| Operation Temperature |
-40℃ to +80℃ |
Fiber Optic Loopback Testing
A loopback test involves sending a signal from a communication device and looping it back to the same device to verify proper functionality or troubleshoot defective network nodes.
For fiber optic loopback testing, optical loopbacks verify the operational reliability of devices. Using fiber optic loopback cables or modules for data transmission, the signal emitted by the device is looped from the transmit (Tx) end of an active component back to the receive (Rx) end of the same component.
Applications
12F MPO-LC/SC/FC/ST Straight harness Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center applications. Optimized for 10/40/100G high-density data center requirements.
All OMC MPO Connectors are sourced from Senko/Nissin/Sumitomo. MPO Fiber Patch Cables are high-density cable assemblies used in three primary areas:
- Data Center applications with high-density environments
- Fiber to the Building installations
- Internal connector applications within fiber equipment
Naming Rules & Order Confirmation
Connector and Fiber Channel
Polarity (Channel Alignment)
Transceiver Selection Guide
When selecting a loopback for specific transceivers, consider connector type, polish type, and cable type compatibility. The following tables provide selection guidance for commonly used transceiver modules.
This guide covers specific fiber loopback choices for the most commonly used fiber optic transceivers. For other transceiver modules not mentioned, selection can be determined by examining interface type, physical contact requirements, and cable type specifications.
Zion Communication Hot MPO Fiber Optic Loopback Products
7236013 ZCM1111HXA: 8F MPO SM Fiber Optic Loopback Module /Cable
7236014 ZCM1121HXA: 12F MPO SM Fiber Optic Loopback Module/Cable
7236015 ZCM1141HXA: 24F MPO SM Fiber Optic Loopback Module /Cable
7236016 ZCM1116HXA: 8F MPO OM3 Fiber Optic Loopback Module /Cable
7236017 ZCM1126HXA: 12F MPO OM3 Fiber Optic Loopback Module /Cable
7236018 ZCM1146HXA: 24F MPO OM3 Fiber Optic Loopback Module /Cable
7236019 ZCM1117HXA: 8F MPO OM4 Fiber Optic Loopback Module /Cable
7236020 ZCM1127HXA: 12F MPO OM4 Fiber Optic Loopback Module /Cable
7236021 ZCM1147HXA: 24F MPO OM4 Fiber Optic Loopback Module /Cable
7236022 ZCM2111HXA: 8F MTP SM Fiber Optic Loopback Module /Cable
7236023 ZCM2121HXA: 12F MTP SM Fiber Optic Loopback Module /Cable
7236024 ZCM2141HXA: 24F MTP SM Fiber Optic Loopback Module /Cable
7236025 ZCM2116HXA: 8F MTP OM3 Fiber Optic Loopback Module /Cable
7236026 ZCM2126HXA: 12F MTP OM3 Fiber Optic Loopback Module /Cable
7236027 ZCM2146HXA: 24F MTP OM3 Fiber Optic Loopback Module /Cable
7236028 ZCM2117HXA: 8F MTP OM4 Fiber Optic Loopback Module /Cable
7236029 ZCM2127HXA: 12F MTP OM4 Fiber Optic Loopback Module /Cable
7236030 ZCM2147HXA: 24F MTP OM4 Fiber Optic Loopback Module /Cable
Packaging
These fiber optic cables are packaged in easily handled, well-protected containers labeled and marked by OMC as standard.
Standard Carton Sizes:
- 34 × 22 × 15 cm
- 44 × 34 × 24 cm
- 54 × 39 × 34 cm
Carton selection depends on order quantity. Custom packaging options are available.
OEM/ODM Services
Customization options available including:
- Cable color, printing text, cable jacket material, connector colors
- OEM Labels, Identification rings, cable labels, boxes, shipping marks
- Different quality levels to meet specific requirements
