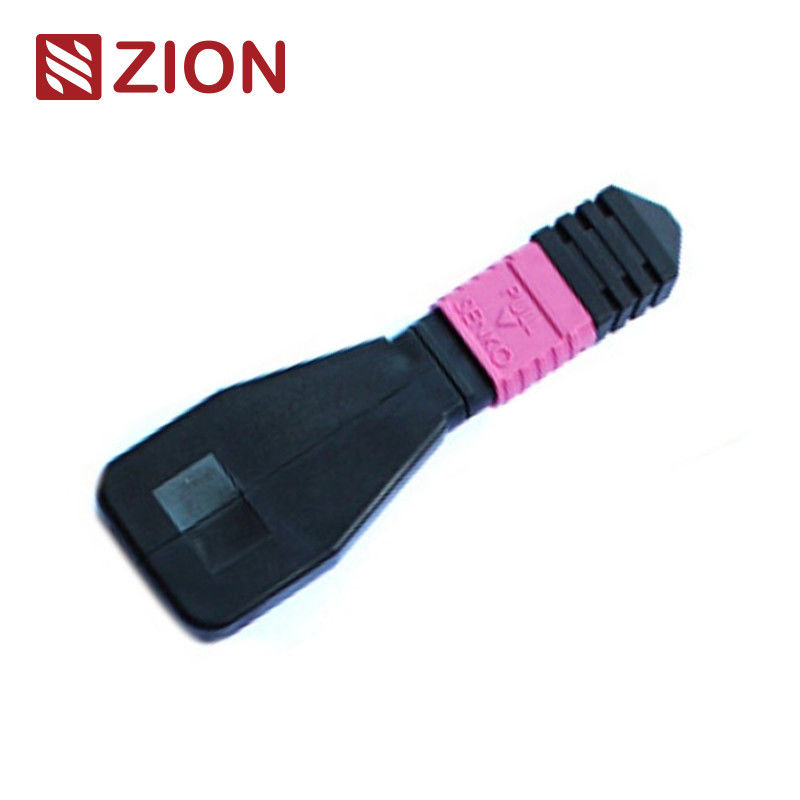

8 Fibers MPO OM4 Fiber Optic Loopback Module / Cable
The 8F MPO OM4 Fiber Optic Loopback Module/Cable is designed for testing and verification of network equipment in high-speed data communication environments.
Product Identification
Zion Code: ZCM1117HXA1
Zion Description: 8F MPO OM4 Fiber Optic Loopback Module /Cable
The MPO loopback contains MPO connectors that loop both ends of the fiber within the same connector, creating a closed optical path. This enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals to the source, it helps locate various network phenomena and facilitates effective testing and evaluation of individual components or interfaces within fiber optic networks.
Configuration Options
Optical fiber loopbacks are available in multiple configurations to accommodate 8-core, 12-core, and 24-core MPO connectors with various fiber configurations to match test port requirements.
- 8F MPO Fiber Loopback Module: Verifies and tests transceivers with MPO interface - 40GBASE-SR4/CSR4 QSFP+ devices
- 12F MPO Fiber Loopback Module: Verifies and tests transceivers with MPO interface - 40GBASESR4 QSFP+ or 100GBASE-SR4 devices
- 24F MPO Fiber Loopback Module: Verifies and tests transceivers with MPO interface - 100GBASESR10 CXP/CFP devices
Testing Applications
MPO Loopback modules provide looped signals to test transmit and receiving functions. They are widely used within testing environments, especially in parallel optics 40G and 100G networks. Loopbacks connect Transceivers (TX) and Receivers (RX) positions of MPO transceiver interfaces, facilitating and speeding up Insertion Loss (IL) testing of optical network segments when connected to MPO trunks and patch leads.
Connector Standards
MPO Singlemode Reference: IEC 61754-7
MPO Singlemode Housing Details:
- SM APC: Green connectors + black boot (Standard Loss MPO)
- SM APC: Yellow connectors + black boot (Super low loss MPO)
MPO Multimode Reference: IEC 61754-7
MPO Multimode Housing Details:
- OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MPO)
- OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super low loss MPO)
- OM3 & OM4 PC: Heather Violet connectors + black boot (Standard loss MPO)
Compliance Standards:
• Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
• Structured cabling per TIA-568-C
• 10G Fiber Channel Compliant
• 40G and 100G IEEE 802.3
Materials Details
Optical Specifications
| Parameter | Specification |
|---|
| Fiber Type | Multimode |
| Fiber Diameter | 50/125um, 62.5/125um |
| Insertion Loss | MM < 1.0dB |
| Return Loss | MM > 25dB |
| Insert-pull Test | 500 times, IL < 0.5dB |
| Operation Temperature | -40℃ to +80℃ |
Fiber Optic Loopback Testing
A loopback test involves sending a signal from a communication device and looping it back to the same device to verify proper functionality or troubleshoot defective network nodes. Optical loopbacks verify the operational reliability of devices by looping the signal emitted from the transmit (Tx) end back to the receive (Rx) end of the same component.
Applications
12F MPO-LC/SC/FC/ST Straight harness Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center applications. Optimized for 10/40/100G high-density data center environments.
All OMC MPO Connectors are sourced from Senko/Nissin/Sumitomo. MPO Fiber Patch Cords are high-density cable assemblies used in three primary areas:
- Data Center applications with high-density environments
- Fiber to the building installations
- Internal connector applications in fiber equipment
Naming Rules & Order Confirmation
Connector & Fiber Channel
Polarity (Channel Alignment)
Transceiver Selection Guide
When selecting a loopback for a transceiver, consider connector type, polish type, and cable type. The following tables provide selection guidance for commonly used transceiver modules:
Conclusion
This guide provides specific fiber loopback choices for commonly used fiber optic transceivers. For transceiver modules not mentioned, suitable loopbacks can be selected by understanding interface type, physical contact, and cable type requirements.
Zion Communication's MPO Fiber Optic Loopback Products
7236013 ZCM1111HXA: 8F MPO SM Fiber Optic Loopback Module /Cable
7236014 ZCM1121HXA: 12F MPO SM Fiber Optic Loopback Module/Cable
7236015 ZCM1141HXA: 24F MPO SM Fiber Optic Loopback Module /Cable
7236016 ZCM1116HXA: 8F MPO OM3 Fiber Optic Loopback Module /Cable
7236017 ZCM1126HXA: 12F MPO OM3 Fiber Optic Loopback Module /Cable
7236018 ZCM1146HXA: 24F MPO OM3 Fiber Optic Loopback Module /Cable
7236019 ZCM1117HXA: 8F MPO OM4 Fiber Optic Loopback Module /Cable
7236020 ZCM1127HXA: 12F MPO OM4 Fiber Optic Loopback Module /Cable
723602: ZCM1147HXA: 24F MPO OM4 Fiber Optic Loopback Module /Cable
7236022 ZCM2111HXA: 8F MTP SM Fiber Optic Loopback Module /Cable
7236023 ZCM2121HXA: 12F MTP SM Fiber Optic Loopback Module /Cable
7236024 ZCM2141HXA: 24F MTP SM Fiber Optic Loopback Module /Cable
7236025 ZCM2116HXA: 8F MTP OM3 Fiber Optic Loopback Module /Cable
7236026 ZCM2126HXA: 12F MTP OM3 Fiber Optic Loopback Module /Cable
7236027 ZCM2146HXA: 24F MTP OM3 Fiber Optic Loopback Module /Cable
7236028 ZCM2117HXA: 8F MTP OM4 Fiber Optic Loopback Module /Cable
7236029 ZCM2127HXA: 12F MTP OM4 Fiber Optic Loopback Module /Cable
7236030 ZCM2147HXA: 24F MTP OM4 Fiber Optic Loopback Module /Cable
Packaging
These fiber optic cables are packaged in easily handled, well-protected packaging labeled and marked by OMC as default.
Standard Carton Sizes:
- 34 × 22 × 15 cm
- 44 × 34 × 24 cm
- 54 × 39 × 34 cm
Carton selection depends on order quantity. Custom packaging options are available.
OEM/ODM Services
Customization options include:
- Cable color, printing text, material of cable jacket, connector color
- OEM Label, Identification ring, cable labels, boxes, shipping marks
- Different quality levels
