8 Fibers MPO OM3 Fiber Optic Loopback Module / Cable
Zion Product Information
Zion Code: ZCM1116HXA1
Zion Description: 8F MPO OM3 Fiber Optic Loopback Module / Cable

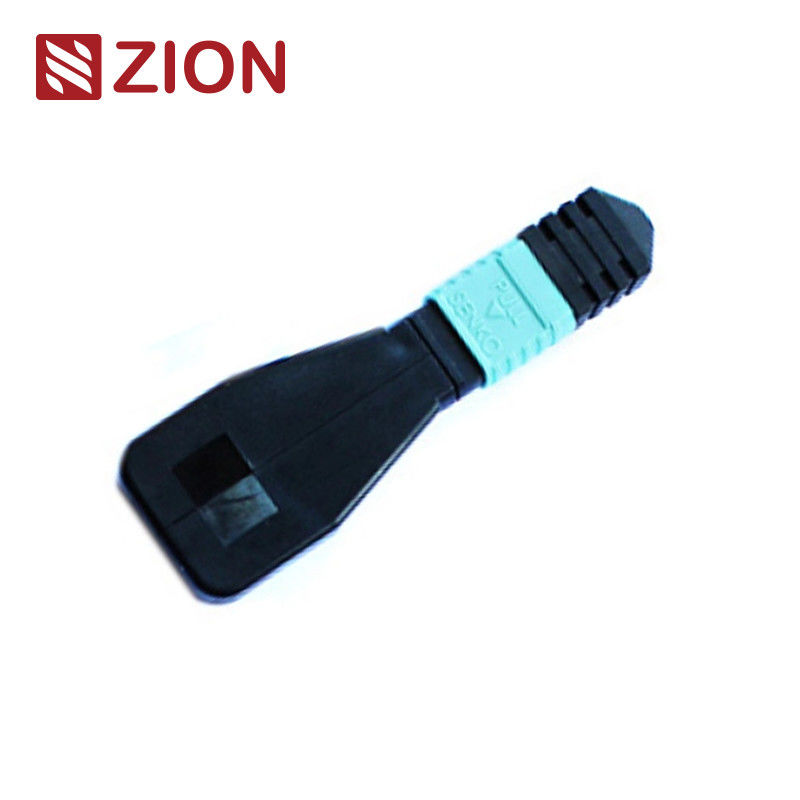

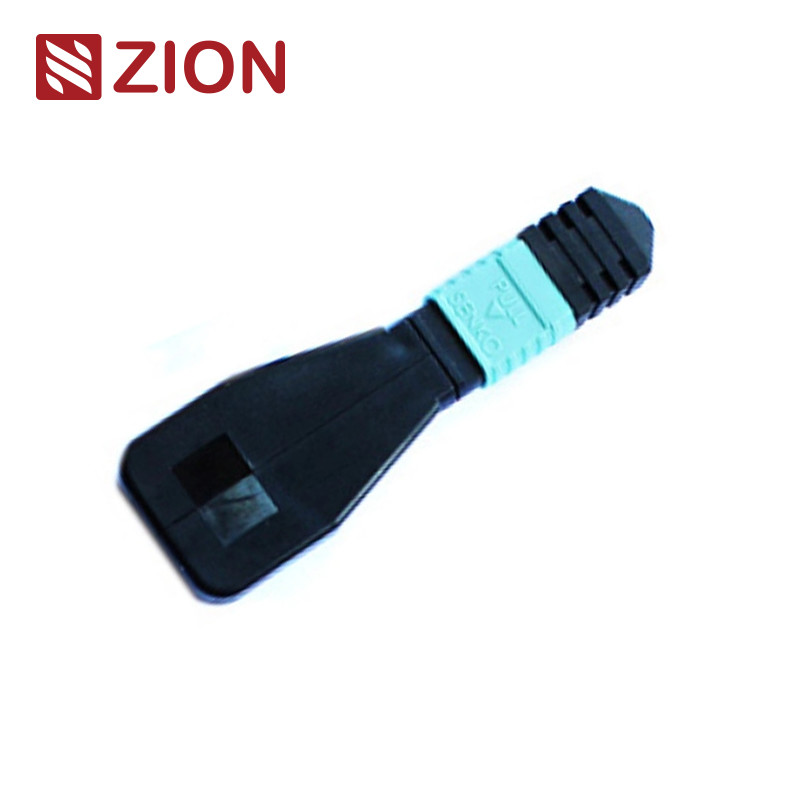

The MPO loopback contains MPO back ring jumping lines in the LOOPBACK configuration, with both ends of the fiber terminated into an MPO connector to create a complete light path within the same connector. This enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals, various potential phenomena can be identified, allowing effective testing and evaluation of individual components or interfaces within fiber optic networks.
Optical fiber loopbacks are available in multiple configurations, accommodating 8-core, 12-core, and 24-core MPO connectors with various fiber configurations to adapt to different test port requirements. The 8F MPO Fiber Loopback Module verifies and tests transceivers featuring MPO interfaces, specifically 40GBASE-SR4/CSR4 QSFP+ devices.
MPO Loopback modules provide looped signals to test transmit and receiving functions. They are widely used within testing environments, especially in parallel optics 40G and 100G networks. Loopbacks are designed to link Transceiver (TX) and Receiver (RX) positions of MPO transceiver interfaces. MPO loopbacks facilitate and accelerate insertion loss (IL) testing of optical network segments when connected to MPO trunks and patch leads.
Connector Industrial Standards
MPO Singlemode Reference: IEC 61754-7
MPO Singlemode Housing Details: SM APC: Green connectors + black boot (Standard Loss MPO)
SM APC: Yellow connectors + black boot (Super low loss MPO)
MPO Multimode Reference: IEC 61754-7
MPO Multimode Housing Details: OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MPO)
OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super low loss MPO)
OM3 & OM4 PC: Heather Violet connectors + black boot (Standard loss MPO)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Optical Specifications
| Fiber Type |
Multimode |
| Fiber Diameter |
50/125um, 62.5/125um |
| Insertion Loss |
MM < 1.0dB |
| Return Loss |
MM > 25dB |
| Insert-pull Test |
500 times, IL < 0.5dB |
| Operation Temperature |
-40℃ to +80℃ |
Fiber Optic Loopback Testing
A loopback test involves sending a signal from a communication device and looping it back to the same device to verify proper functionality or troubleshoot defective network nodes. For fiber optic loopback testing, optical loopbacks verify the operational reliability of devices. Using fiber optic loopback cables or modules for data transmission, the signal emitted by the device is looped from the transmit (Tx) end of an active component back to the receive (Rx) end of the same component.
Applications
12F MPO-LC/SC/FC/ST Straight harness cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center applications. These are optimized for 10/40/100G high-density data center environments.
All OMC MPO Connectors are sourced from Senko/Nissin/Sumitomo. MPO Fiber Patch Cords are high-density cable assemblies used in three primary areas:
- Data Center applications with high-density environments
- Fiber to the building installations
- Internal connector applications within fiber equipment
Naming Rules & Order Confirmation
Polarity (Channel Alignment)
Transceiver Selection Guide
When selecting a loopback for specific transceivers, consider connector type, polish type, and cable type compatibility. The following tables provide selection guidance for commonly used transceiver modules.
Conclusion
This guide discusses specific fiber loopback choices for the most commonly used fiber optic transceivers. For transceiver modules not specifically mentioned, suitable loopbacks can be selected by understanding their interface type, physical contact requirements, and cable type specifications.
Zion Communication Hot MPO Fiber Optic Loopback Products
7236013 ZCM1111HXA: 8F MPO SM Fiber Optic Loopback Module / Cable
7236014 ZCM1121HXA: 12F MPO SM Fiber Optic Loopback Module / Cable
7236015 ZCM1141HXA: 24F MPO SM Fiber Optic Loopback Module / Cable
7236016 ZCM1116HXA: 8F MPO OM3 Fiber Optic Loopback Module / Cable
7236017 ZCM1126HXA: 12F MPO OM3 Fiber Optic Loopback Module / Cable
7236018 ZCM1146HXA: 24F MPO OM3 Fiber Optic Loopback Module / Cable
7236019 ZCM1117HXA: 8F MPO OM4 Fiber Optic Loopback Module / Cable
7236020 ZCM1127HXA: 12F MPO OM4 Fiber Optic Loopback Module / Cable
7236021 ZCM1147HXA: 24F MPO OM4 Fiber Optic Loopback Module / Cable
7236022 ZCM2111HXA: 8F MTP SM Fiber Optic Loopback Module / Cable
7236023 ZCM2121HXA: 12F MTP SM Fiber Optic Loopback Module / Cable
7236024 ZCM2141HXA: 24F MTP SM Fiber Optic Loopback Module / Cable
7236025 ZCM2116HXA: 8F MTP OM3 Fiber Optic Loopback Module / Cable
7236026 ZCM2126HXA: 12F MTP OM3 Fiber Optic Loopback Module / Cable
7236027 ZCM2146HXA: 24F MTP OM3 Fiber Optic Loopback Module / Cable
7236028 ZCM2117HXA: 8F MTP OM4 Fiber Optic Loopback Module / Cable
7236029 ZCM2127HXA: 12F MTP OM4 Fiber Optic Loopback Module / Cable
7236030 ZCM2147HXA: 24F MTP OM4 Fiber Optic Loopback Module / Cable
Packaging
These fiber optic cables are packaged in easily handled, well-protected packaging labeled and marked by OMC as standard. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. The specific carton used depends on the quantity of goods ordered. Custom packaging options are available.
OEM/ODM Services
Customization options include:
- Cable color, printing text, material of cable jacket, connector color
- OEM Label, Identification ring, cable labels, boxes, shipping marks
- Different quality levels to meet specific requirements
