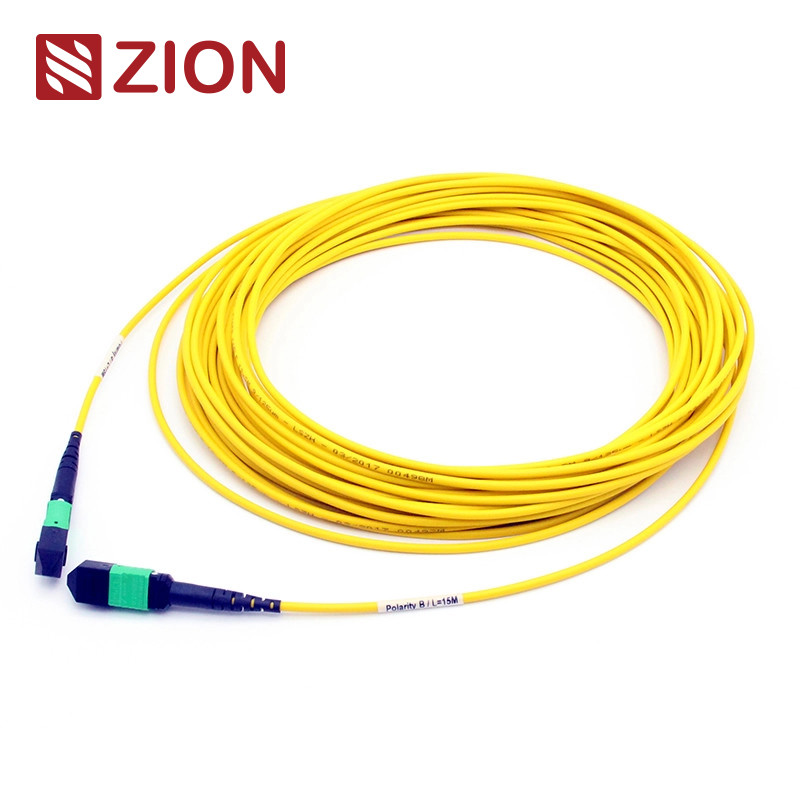

24 Fibers MTP Patch Cord Female To Female Singlemode 3.0mm LSZH
MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters
Zion Code and Description
Zion Code: ZCM2152HIA1X
Zion Description: MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters
The MPO connector is a multi-fiber push-on connector type designed for high-density fiber pre-connection systems. These connectors are primarily used in data center environments, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MTP connector types are classified according to IEC 61754-7 regulations based on core numbers, gender (Male/Female), and polarity (PC or APC).
This MTP-MTP 3.0mm LSZH Fiber Patch Cord features MTP connectors on both ends and is available with 12, 24, 48, 60, 72, 96, or 144 fibers. It supports speeds up to 10/40/100Gbps data center solutions and is ideal for interconnecting cassettes, panels, or ruggedized MTP fan-outs. The patch cord facilitates rapid deployment of high-density backbone cabling in data centers and other high-fiber environments.
The 24F MTP-MTP Fiber Patch Cord is specifically designed for high-density data center applications and supports 100G QSFP28 SR4 optics direct connections.
Connectors Industrial Standard
MPO Singlemode Reference: EIA/TIA-604-5
MPO Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP); SM APC: Yellow connectors+black boot (Super low loss MTP)
MPO Multimode Reference: EIA/TIA-604-5
MPO Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP); OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP); OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Optical Specifications
Insertion Loss (MPO)(IEC 61300-3-34) Singlemode (APC 8-degree polished): Standard loss: ≤0.75dB(max), ≤0.50dB(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss(MPO)(IEC 61300-3-34) Multimode (PC Flat polish): Standard loss: ≤0.6dB(max), ≤0.50(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6) Single mode (APC 8-degree polished): ≤0.3dB
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6) Multimode (PC Flat polish): ≤0.3dB
Return Loss (MPO) Singlemode (APC 8-degree polished): ≥60dB(8degree polishing)
Return Loss (MPO) Multimode (PC Flat polish): ≥25dB
Return loss(LC/SC/FC/ST): APC≥60dB; UPC≥50dB
Return loss(LC/SC/FC/ST): ≥35dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500 times, IL＜0.5dB
Tensile strength: >70N
Plug-in times: >600
Operating Temperature Singlemode (APC): -40°C to +85°C
Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
Application
This 24F MTP-MTP patch cord is optimized for 10/40/100G high-density data center applications. It is designed for 100G QSFP28 SR4 optics direct connections and high-density data center environments.
All of OMC's MPO Connectors are sourced from Senko/Nissin/Sumitomo. MPO Fiber Patch Cables are high-density cable assemblies used in three primary areas:
- Data Center applications with high-density environments
- Fiber-to-the-building installations
- Internal connector applications in fiber equipment
Naming Rules & Order Confirmation Information
Push Pull Tab For Senko MTP
MTP-MTP 24F Trunk Cable Drawing
| Overall Length(L)(m) |
Length of Tolerance(cm) |
0
| +5/-0 |
|
1
| +10/-0 |
|
10
| +15/-0 |
|
40
| '+0.5% x L/-0 |
|
Three Connection Methods Help Keep the Right MTP/MTP Polarity
Base-24 Polarity Solution
To accommodate increased bandwidth demands, 24-fiber MTP/MPO cables are introduced to facilitate migration to 100G networks. These cables double the density of 12-fiber cabling in the same footprint, reducing fiber count, minimizing cable pathways, and improving airflow. The polarity maintenance of base-24 MTP/MPO cabling is more complex, and OMC recommends Type A (key-up to key-down) MTP/MPO trunk cables. With our Type A and Type AF cassettes, A-to-A patch cables are no longer required.
Zion Communication's Hot Trunk Cable
7236001 ZCM1122HIA1: MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
7236002 ZCM1152HIA1: MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters
7236003 ZCM1127HLA1: MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
7236004 ZCM1157HLA1: MPO Female To MPO Female OM3 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters
7236005 ZCM1128HMA1: MPO Female To MPO Female OM4 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
7236006 ZCM1158HMA1: MPO Female To MPO Female OM4 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters
7236007 ZCM2122HIA1: MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters
7236008 ZCM2152HIA1: MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters
7236009 ZCM2127HLA1: MTP Female To MTP Female OM3 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters
7236010 ZCM2157HLA1: MTP Female To MTP Female OM3 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters
7236011 ZCM2128HMA1: MTP Female To MTP Female OM4 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters
7236012 ZCM2158HMA1: MTP Female To MTP Female OM4 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters
Packaging
This fiber optic cable package is designed for easy handling and optimal protection. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on order quantity. Custom packaging options are available.
OEM/ODM Service
- Cable color, printing word, material of cable jacket, connector's color
- OEM Label, Identify ring, cable's label, box, shipping marks
- Different quality levels available
