| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Durability: | <0.3dB Typical Change, 200 Matings | Interchangeability: | ≤0.2dB |
|---|---|---|---|
| Tensile Strength: | >70N | Plug -in Times: | >600 |
| Operating Temperature (℃）: | -40 To + 85°C | ||
| High Light: | Custom Meters MTP Fiber Patch Cord,LSZH MTP Fiber Optic Patch Cord,12 Fibers MTP Fiber Optic Patch Cord |
||
12F MPO(MTP)-MPO(MTP) Fiber Patch Cord is designed for 40G QSFP+ SR4
40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center
| Zion Code | Zion Description | |||||||

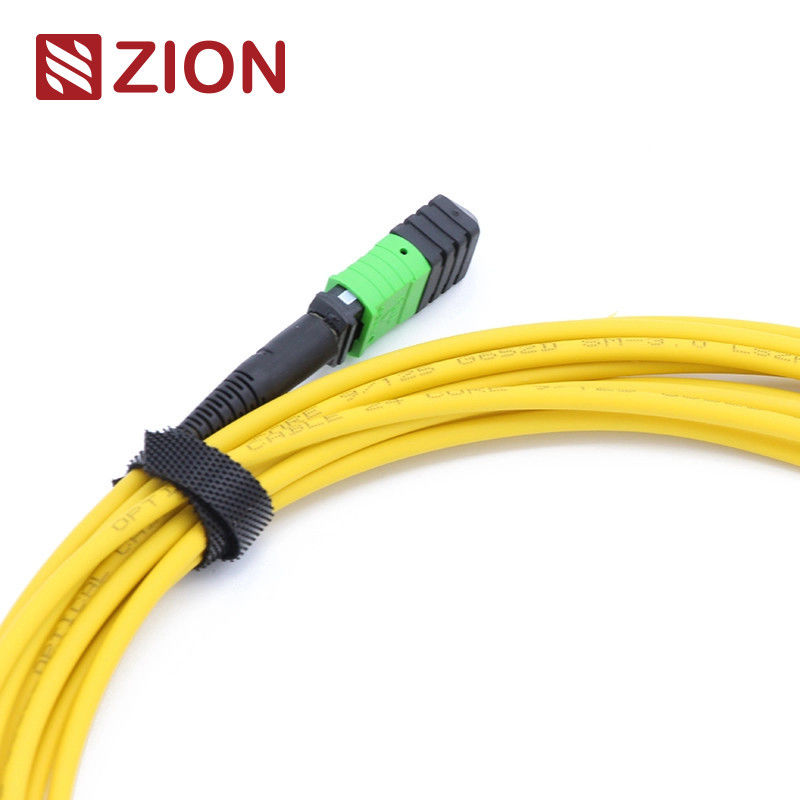

| ZCM2122HIA1X | MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters | |||||||
| The MTP connector is a type of fiber connecter. MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+. | ||||||||
| MTP connector types are distinguished according to the IEC 61754-7 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC). | ||||||||
| MTP-MTP 3.0mm LSZH Fiber Patch Cord. MTP Fiber Patch Cord cable is terminated with MTP connector on both ends. MTP Fiber Patch Cord connect MTP modules together as a permanent link. The Fiber Patch Cord are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the crossconnect side of the patch panel. | ||||||||
| The 12F MTP-MTP Fiber Patch Cord is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center. | ||||||||
Connectors’ Industrial Standard:
| Connector | Reference | Housing Details | ||||||
| MTP Singlemode | EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MTP) SM APC: Yellow connectors+black boot (Super low loss MTP) |
||||||
| MTP Multimode | EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP) |
||||||
| Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C | ||||||||
| 10G Fiber Channel Compliant | ||||||||
| 40G and 100G IEEE 802.3 |
Optical Specifications:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) | ||||||
| nsertion loss (MTP) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.50(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
||||||
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) |
≤0.3dB | ≤0.3dB | ||||||
| Return loss(MTP) | ≥60dB(8degree polishing) | ≥25dB | ||||||
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB | ||||||
| Durability | <0.3dBtypical change, 200 matings | |||||||
| Interchangeability | ≤0.2dB | |||||||
| Tensile strength | >70N | |||||||
| Plug -in times | >600 | |||||||
| Operating Temperature (℃) | ·-40 to + 85°C | |||||||
| Features: | ||||||||
| Low insertion loss, high return loss | ||||||||
| MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies | ||||||||
| Economical solution for mass-termination of fiber | ||||||||
| Designed for low loss and standard loss SM and MM applications | ||||||||
| Ruggedized round cable, oval cable and bare ribbon options available | ||||||||
| Color coded housings available to differentiate fiber type, polish type and/or connector grade | ||||||||
| Good in repeatability and exchangeability |
| Application: | ||||||||
| All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP Patch Cord is a kind of high density cable assemblies which is generally use in three areas. | ||||||||
| The Data Center application with high dense degree environment | ||||||||
| The optical fiber to the building | ||||||||
| The internal connector application in fiber equipment. |
Naming Rules&Order Confirmation Information:
Push Pull Tab For Senko MTP
MTP-MTP 12F Trunk cable drawing.
| Overall Length(L)(m) | length of tolerance(cm) | |||||||
| 0<L<1 | +5/-0 | |||||||
| 1<L<10 | +10/-0 | |||||||
| 10<L<40 | +15/-0 | |||||||
| 40<L | ‘+0.5% x L/-0 | |||||||
Three Connection Methods Help Keep the Right MTP/MTP Polarity
1. Polarity A connection
| Polarity A MTP cables use a key up, key down design. Therefore, as shown in the figure below, the position 1 of one connector is corresponding to the position 1 of another connector. There is no polarity flip. Therefore, when we use polarity A MTP cable for connection, we must use A-B duplex patch cables on one end and A-A duplex patch cables on the other end. Since in this link, Rx1 must connect to Tx1. If we don’t use A-A duplex patch cable, according to the design principle of polarity A MTP cable, fiber 1 may transmit to fiber 1, that is to say Rx1 may transmit to Rx1, which may cause errors. |
2. Polarity B connection
| Polarity B MTP cables use a key up, key up design. Therefore, as shown in the figure below, the position 1 of one connector is corresponding to the position 12 of another connector. Therefore, when we use polarity B MTP cable for connection, we should use a A-B duplex patch cables on both ends. Since the key up to key up design help to flip the polarity, which makes fiber 1 transmit to fiber 12, that is the Rx1 transmits to Tx1. |
3. Polarity C connection
| Like the polarity A MTP cables, polarity C MTP cables also use a key up, key down design. However, within in the cable, there is a fiber cross design, which makes the position 1 of one connector is corresponding to the position 2 of another connector. As shown in the figure below, when we use polarity C MTP cable for connection, we should use a A-B duplex patch cables on both ends. Since the cross fiber design help to flip the polarity, which makes fiber 1 transmit to fiber 2, that is the Rx1 transmits to Tx1. |
Note: The Polarity type is in the following naming rules-Polarity A；Polarity B；Polarity C
Zion Communication's Hot TRUNK CABLE
| Zion Code | Zion Description | |||||||
| 7236001 | ZCM1122HIA1X | MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters | ||||||
| 7236002 | ZCM1152HIA1X | MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters | ||||||
| 7236003 | ZCM1127HLA1X | MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters | ||||||
| 7236004 | ZCM1157HLA1X | MPO Female To MPO Female OM3 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters | ||||||
| 7236005 | ZCM1128HMA1X | MPO Female To MPO Female OM4 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters | ||||||
| 7236006 | ZCM1158HMA1X | MPO Female To MPO Female OM4 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters | ||||||
| 7236007 | ZCM2122HIA1X | MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters | ||||||
| 7236008 | ZCM2152HIA1X | MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters | ||||||
| 7236009 | ZCM2127HLA1X | MTP Female To MTP Female OM3 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters | ||||||
| 7236010 | ZCM2157HLA1X | MTP Female To MTP Female OM3 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters | ||||||
| 7236011 | ZCM2128HMA1X | MTP Female To MTP Female OM4 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters | ||||||
| 7236012 | ZCM2158HMA1X | MTP Female To MTP Female OM4 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters | ||||||
Packaging
| This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized. | ||||||||
OEM/ODM service for you
| 1. Cable color, printing word, material of cable jacket, connector’s color | ||||||||
| 2. OEM Label, Identify ring, cable’s label,box, shipping marks | ||||||||
| 3. Different quality Level. |
