OM4 12 Fibers MPO Patch Cord with LSZH Jacket for High-Density Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dB Typical Change, 200 Matings	Interchangeability:	≤0.2dB
Tensile Strength:	>70N	Plug -in Times:	≤ 500
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	OM4 MPO Patch Cord , 12 Fibers MPO Fiber Optic Cable , LSZH MPO Trunk Cable

Product Description

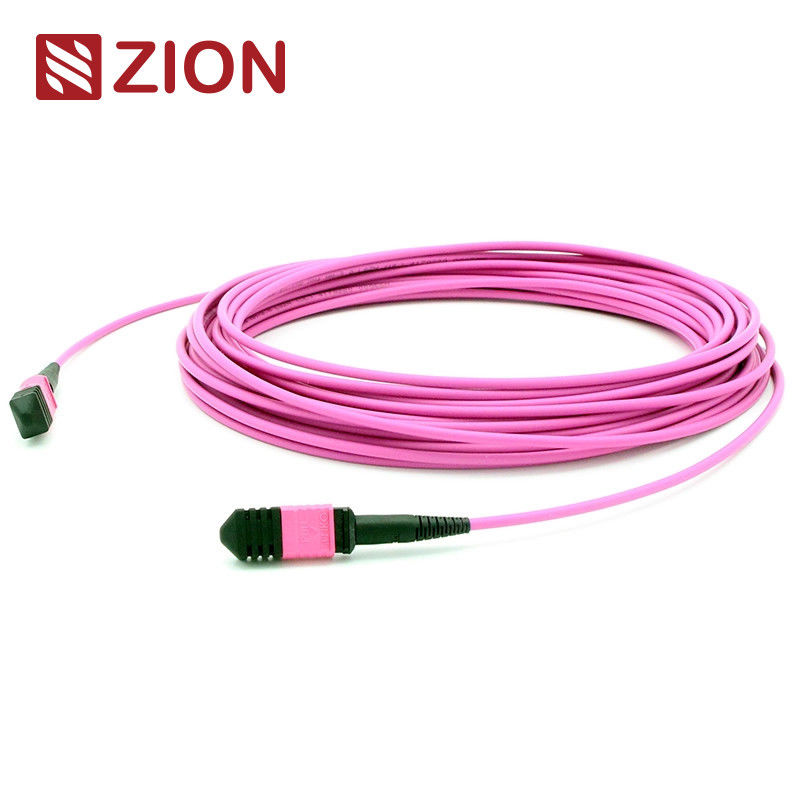

12 Fibers MPO Female To MPO Female OM4 3.0mm LSZH MPO Patch Cord

High-density MPO patch cord featuring OM4 multimode fibers with MPO connectors at both ends, designed for reliable high-performance connections in data center and fiber optic applications.

Product Information

Zion Code: ZCM1128HMA1X

Overview

The MPO (Multi-Fiber Push On) connector is a high-density, multi-core fiber connector commonly used in data centers, building fiber connections, and internal optical equipment connections for devices such as optical transceivers (40G, 100G, QSFP+). This patch cord supports up to 10G/40G/100G data rates and is ideal for rapid deployment in high-density environments.

Standards & Compliance

Standards: IEC 61754-7, IEC 61755, Telcordia GR-1435-CORE, TIA-568-C, and JIS C5982
Applications: IEEE 802.3 (40G, 100G) and 10G Fiber Channel compliant

Key Features

Low Insertion Loss, High Return Loss for reliable connections
Multi-Fiber Connectivity in 4, 8, 12, and 24 fiber assemblies
Ruggedized Design supporting both round and oval cable types
Flexible design for mass-termination and easy replacement
Color-Coded Aqua housing for OM4 multimode fibers

Optical Performance

Insertion Loss (MPO): Standard ≤0.6 dB (max), ≤0.5 dB (typical); Super Low ≤0.35 dB (max), ≤0.2 dB (typical)
Return Loss: ≥25 dB for MPO connectors
Durability: ≤0.3 dB change after 200 matings
Operating Temperature: -40°C to +85°C

Applications

Data Centers: High-density cabling solutions
Fiber-to-the-Building: Efficient backbone connections
Internal Fiber Equipment: Interconnect cassettes, patch panels, and ruggedized fan-outs

Product Specifications

Push Pull Tab For Senko MPO

MPO-MPO 12F Fiber Patch Cord Drawing

Length Tolerance Specifications

Overall Length (L) in meters	Length Tolerance in cm
0 < L < 1	+5/-0
1 < L < 10	+10/-0
10 < L < 40	+15/-0
40 < L	+0.5% x L/-0

MPO Polarity Connection Methods

Polarity A Connection

Polarity A MPO cables use a key up, key down design where position 1 of one connector corresponds to position 1 of another connector. Requires A-B duplex patch cables on one end and A-A duplex patch cables on the other end.

Polarity B Connection

Polarity B MTP cables use a key up, key up design where position 1 of one connector corresponds to position 12 of another connector. Requires A-B duplex patch cables on both ends.

Polarity C Connection

Polarity C MPO cables use a key up, key down design with internal fiber cross, making position 1 of one connector correspond to position 2 of another connector. Requires A-B duplex patch cables on both ends.

Note: Polarity type is specified in the naming rules - Polarity A, Polarity B, or Polarity C.

Related Products

Image	Product Description	Category
	MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MPO Female To MPO Female OM3 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MPO Female To MPO Female OM4 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MPO Female To MPO Female OM4 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MTP Female To MTP Female OM3 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking
	MTP Female To MTP Female OM3 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters	MPO-MTP Patch Cord, MTP/MPO, Optical Components, Optical Networking

Packaging

This fiber optic cable package is well-protected and labeled by OMC as default. Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Carton selection depends on quantity. Custom packaging available.

OEM/ODM Services

Cable color, printing, and jacket material customization
Connector color options
OEM Label, Identify ring, cable labels, box design, and shipping marks
Different quality levels available
