MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters
Zion Code: ZCM1152HIA1X
Description:

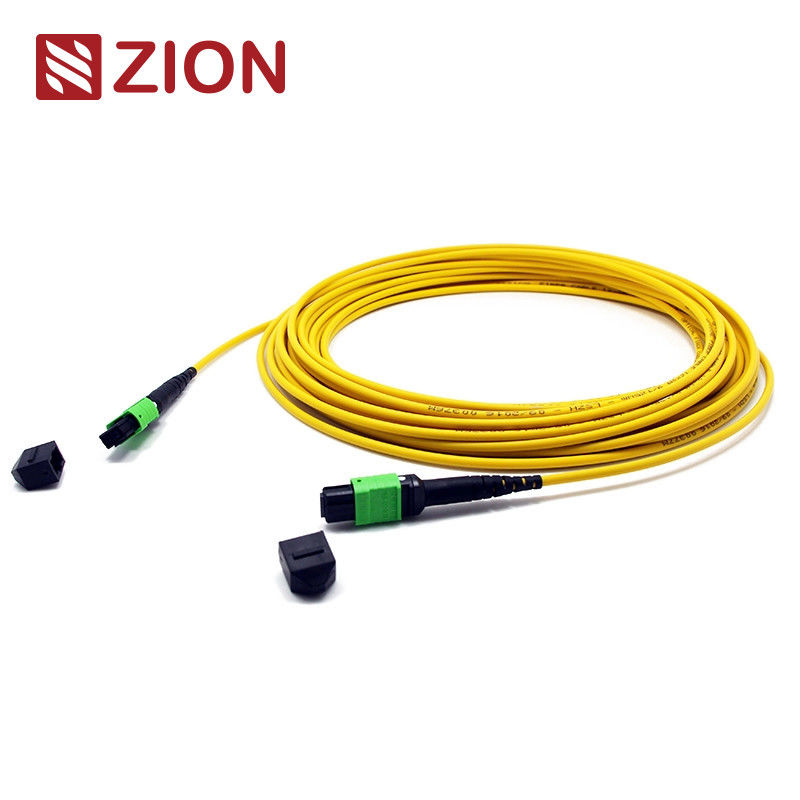

The ZCM1152HIA1X is an MPO Female to MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord, designed for custom-length applications in high-density environments such as data centers, optical fiber to building deployments, and internal optical equipment connections.
Key Features
- Connector Type: MPO Female to MPO Female.
- Fiber Type: Singlemode (SM) with 24 fibers in a 3.0mm Low-Smoke Zero Halogen (LSZH) jacket.
- Data Rate Support: Optimized for 10G/40G/100G applications.
- Application: Designed to interconnect MPO modules or facilitate backbone cabling in high-density environments, such as data centers.
- Flexibility: Enables rapid deployment, flexible cable management, and easy connector style changes by replacing cassettes instead of entire trunk cables.
Industrial Standards Compliance
- MPO Singlemode:
- Standard Loss MPO: Green connectors + black boot (SM APC).
- Super Low Loss MPO: Yellow connectors + black boot (SM APC).
- MPO Multimode:
- OM1 & OM2 PC: Beige connectors + black boot.
- OM3 & OM4 PC: Aqua or Heather Violet connectors + black boot.
- Complies with:
- IEC Standards: IEC 61754-7, IEC 61755.
- Telcordia GR-1435-CORE, JIS C5982.
- TIA-604-5 (FOCIS5), TIA-568-C.
- IEEE 802.3 (40G and 100G applications).
Optical Specifications
Insertion Loss (MPO) Singlemode (APC): ≤0.75dB (Std.), ≤0.35dB (Low Loss)
Insertion Loss (MPO) Multimode (PC): ≤0.60dB (Std.), ≤0.35dB (Low Loss)
Return Loss (MPO) Singlemode (APC): ≥60dB (APC 8-degree polishing)
Return Loss (MPO) Multimode (PC): ≥25dB
Durability Singlemode (APC): <0.3dB typical change (200 matings)
Tensile Strength Singlemode (APC): >70N
Operating Temperature Singlemode (APC): -40°C to +85°C
Special Features
- Low Insertion Loss: Ensures minimal signal degradation.
- High Return Loss: Reduces reflections for improved performance.
- MT-Based Multi-Fiber Connector: Supports up to 144 fiber terminations.
- Durable Design: Supports ≥500 plug-ins with stable performance.
- Ruggedized Cable Options: Available in round, oval, or bare ribbon configurations.
- Color Coding: Differentiates fiber type, polish type, and connector grade.
Applications
High-density backbone cabling for 40G QSFP+ SR4, 40G QSFP+ CSR4, and 100G QSFP28 SR4 optics direct connections.
Interconnect MPO cassettes, panels, or ruggedized MPO fan-outs.
- Optical Fiber to the Building:
Supports large-scale optical fiber deployments for high-speed communication.
- Internal Fiber Equipment Connections:
Ideal for internal connectivity within optical devices or networking hardware
Naming Rules&Order Confirmation Information:
Push Pull Tab For Senko MPO
MPO-MPO 12F Fiber Patch Cord drawing.
Overall Length(L)(m): length of tolerance(cm)
0<L<1: +5/-0
1<L<10: +10/-0
10<L<40: +15/-0
40<L: ‘+0.5% x L/-0
Three Connection Methods Help Keep the Right MTP/MPO Polarity
Base-24 Polarity Solution
To catch up with the increased demand for higher bandwidth, 24-fiber MTP/MPO cable is introduced to facilitate
migration to 100G network. It doubles the density of 12-fiber cabling in the same footprint, which reduces the fiber
count,allows for fewer cable pathway, and improving airflow. The polarity maintenance of base-24 MTP/MPO cabling,
however, is more complicated. OMC recommends the Type A (key-up to key-down) MTP/MPO trunk cable. With our
Type Aand Type AF cassette, no need for A-to-A patch cable any more. The connectivity method is illustrated in the
following picture.
Zion Communication's Hot TRUNK CABLE
- 7236001: ZCM1122HIA1X - MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters.
- 7236002: ZCM1152HIA1X - MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters.
- 7236003: ZCM1127HLA1X - MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters.
- 7236004: ZCM1157HLA1X - MPO Female To MPO Female OM3 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters.
- 7236005: ZCM1128HMA1X - MPO Female To MPO Female OM4 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters.
- 7236006: ZCM1158HMA1X - MPO Female To MPO Female OM4 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters.
- 7236007: ZCM2122HIA1X - MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters.
- 7236008: ZCM2152HIA1X - MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters.
- 7236009: ZCM2127HLA1X - MTP Female To MTP Female OM3 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters.
- 7236010: ZCM2157HLA1X - MTP Female To MTP Female OM3 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters.
- 7236011: ZCM2128HMA1X - MTP Female To MTP Female OM4 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters.
- 7236012: ZCM2158HMA1X - MTP Female To MTP Female OM4 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters.
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .
Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.
