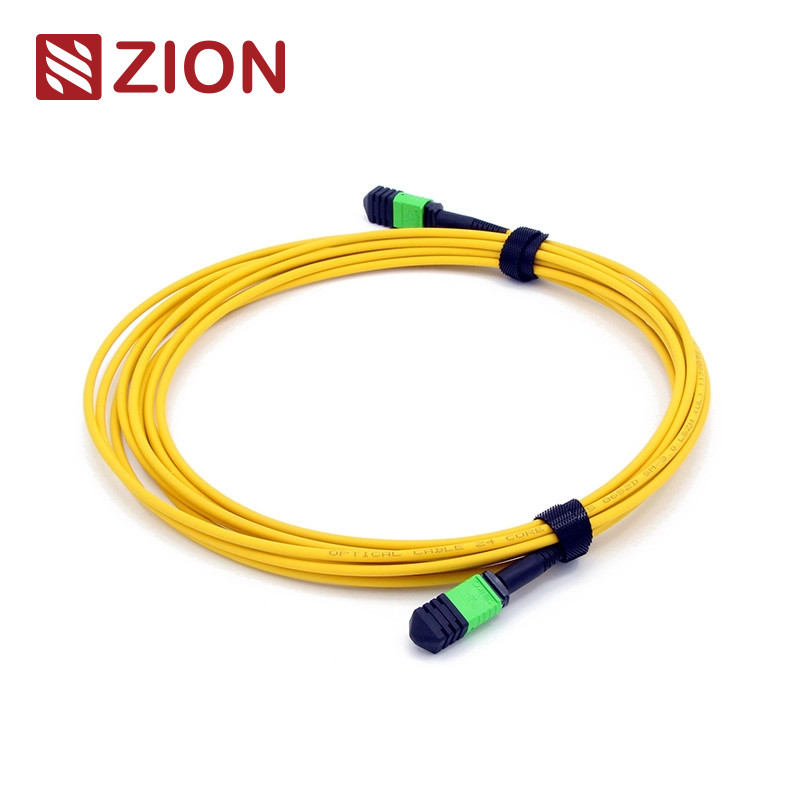

12 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord
The MPO-MPO 12F Fiber Patch Cord is a high-performance, high-density fiber optic solution engineered for modern data center environments. This patch cord delivers exceptional durability, low insertion loss, and high return loss for reliable high-speed data transmission.
Key Features
- Connector Type: MPO on both ends, compliant with IEC 61754-7
- Fiber Count: 12 fibers; also available in 24, 48, 72, 96, and 144 fibers
- Cable Jacket: Ruggedized 3.0mm LSZH for safety and environmental compliance
- Polish Options:
- Single Mode (SM) APC: ≤0.35dB (Super Low Loss), ≥60dB return loss
- Multi-Mode (MM) PC: ≤0.6dB insertion loss, ≥35dB return loss
- Durability: Withstands up to 200 matings with minimal performance changes
- Operating Temperature: -40°C to +85°C for various environmental conditions
- Color-coded housings for easy identification of fiber type, polish, and connector grade
Applications
- Data Centers: Ideal for high-density backbone cabling supporting 10G, 40G, and 100G Ethernet (e.g., 40G QSFP+ SR4, 100G QSFP28 SR4)
- Fiber-to-the-Building (FTTB): For connecting optical networks within buildings
- Optical Equipment Connectivity: Seamlessly integrates with transceivers, cassettes, and patch panels
Standards and Compliance
Meets IEC 61754-7, IEC 61755, and Telcordia GR-1435-CORE standards. Compatible with TIA-568-C structured cabling systems and supports IEEE 802.3 requirements for 40G and 100G Ethernet.
Why Choose MPO-MPO Patch Cords?
- Simplified deployment with mass-termination connectors
- Economical for high-density installations with scalability
- Rapid adaptability for changes in connector types via modular cassettes
Naming Rules & Order Confirmation Information
Push Pull Tab For Senko MPO
MPO-MPO 12F Fiber Patch Cord Drawing
| Overall Length (L)(m) |
Length Tolerance (cm) |
| 0 < L < 1 |
+5/-0 |
| 1 < L < 10 |
+10/-0 |
| 10 < L < 40 |
+15/-0 |
| 40 < L |
+0.5% x L/-0 |
Three Connection Methods for MTP/MPO Polarity
Polarity A Connection
Polarity A MPO cables use a key up, key down design. Position 1 of one connector corresponds to position 1 of another connector with no polarity flip. When using polarity A MTP cables, A-B duplex patch cables are required on one end and A-A duplex patch cables on the other end to ensure proper signal transmission.
Polarity B Connection
Polarity B MTP cables use a key up, key up design. Position 1 of one connector corresponds to position 12 of another connector. This design flips polarity, allowing fiber 1 to transmit to fiber 12 (Rx1 to Tx1).
Polarity C Connection
Polarity C MPO cables use a key up, key down design with internal fiber cross configuration. Position 1 of one connector corresponds to position 2 of another connector, flipping polarity for proper signal transmission.
Note: The polarity type is specified in the following naming rules: Polarity A, Polarity B, Polarity C.
Zion Communication's MPO Fiber Patch Cord Products
7236001: MPO Female to MPO Female SM 3.0mm LSZH 12 Fibers Fiber Optic Patch Cord
High-performance 12-Fiber MPO Female patch cord for single-mode applications. Featuring a 3.0mm LSZH jacket, this patch cord is ideal for high-density data center environments and supports 10G, 40G, and 100G Ethernet connections.
7236002: MPO Female to MPO Female SM 3.0mm LSZH 24 Fibers Fiber Optic Patch Cord
This 24-Fiber MPO Female patch cord is designed for single-mode networks requiring high-speed data transmission in a compact form.
7236003: MPO Female to MPO Female OM3 3.0mm LSZH 12 Fibers Fiber Optic Patch Cord
A 12-Fiber MPO Female multimode patch cord designed for OM3 networks, ensuring optimal performance for 40G/100G Ethernet.
7236004: MPO Female to MPO Female OM3 3.0mm LSZH 24 Fibers Fiber Optic Patch Cord
This 24-Fiber MPO Female OM3 patch cord provides high-density connectivity with reliable performance for multimode networks.
7236005: MPO Female to MPO Female OM4 3.0mm LSZH 12 Fibers Fiber Optic Patch Cord
Experience low-loss, high-density connectivity with this 12-Fiber MPO Female OM4 patch cord designed for modern data centers.
7236006: MPO Female to MPO Female OM4 3.0mm LSZH 24 Fibers Fiber Optic Patch Cord
This 24-Fiber OM4 patch cord is engineered for high-speed, high-density multimode applications.
7236007: MTP Female to MTP Female SM 3.0mm LSZH 12 Fibers Fiber Optic Patch Cord
A 12-Fiber MTP Female single-mode patch cord featuring a 3.0mm LSZH jacket for scalable high-speed connectivity.
7236008: MTP Female to MTP Female SM 3.0mm LSZH 24 Fibers Fiber Optic Patch Cord
This 24-Fiber MTP Female patch cord is ideal for single-mode applications requiring high-density connections.
7236009: MTP Female to MTP Female OM3 3.0mm LSZH 12 Fibers Fiber Optic Patch Cord
A reliable 12-Fiber MTP Female OM3 patch cord designed for multimode applications with low-loss performance.
7236010: MTP Female to MTP Female OM3 3.0mm LSZH 24 Fibers Fiber Optic Patch Cord
This 24-Fiber MTP Female OM3 patch cord supports high-density multimode applications for 40G and 100G Ethernet.
7236011: MTP Female to MTP Female OM4 3.0mm LSZH 12 Fibers Fiber Optic Patch Cord
For ultra-fast multimode networks, this 12-Fiber MTP Female OM4 patch cord provides high-density, low-loss connectivity.
7236012: MTP Female to MTP Female OM4 3.0mm LSZH 24 Fibers Fiber Optic Patch Cord
A 24-Fiber MTP Female OM4 patch cord optimized for multimode applications in high-density environments.
Packaging
This easily handled and well-protected fiber optic cable package is labeled and marked by OMC as default. Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Carton selection depends on order quantity. Custom packaging is available.
OEM/ODM Services
- Cable color, printing text, material of cable jacket, connector color
- OEM Label, identification ring, cable label, box, shipping marks
- Different quality levels available
