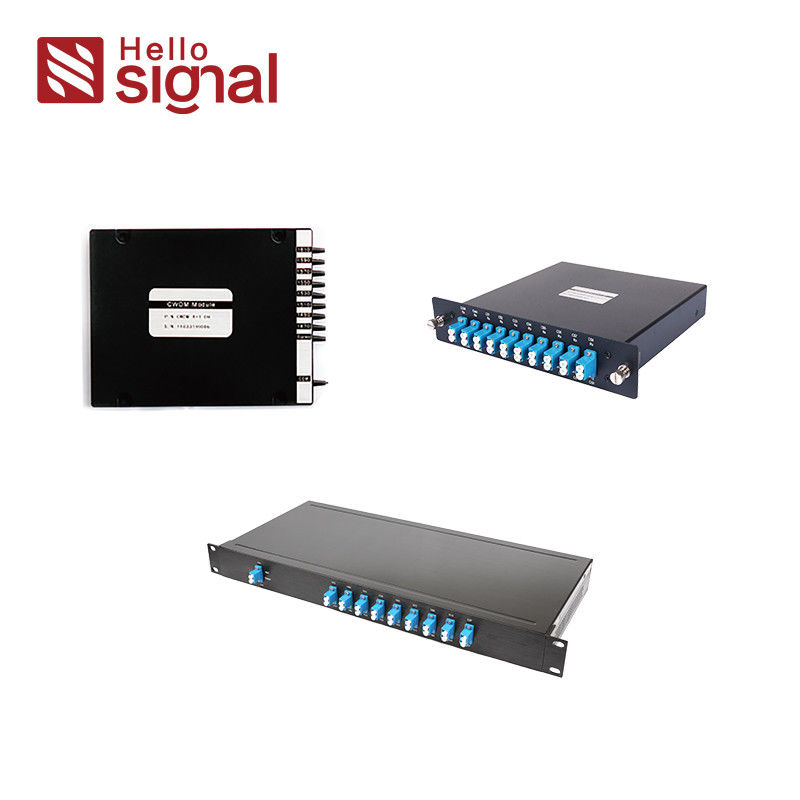

100G, 200G DWDM Module(4,8,16 Channels)

100G, 200G DWDM Module(4,8,16 Channels)
100G, 200G DWDM Module(4,8,16 Channels)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Center Wavelength (nm): ITU Grid Channel Spacing (GHz): 100 /200
Directivity (dB): ≥45 Return Loss (dB): ≥45
Maximum Power Handling (mW): 300

Product Description



DWDM

  • ITU channel spacing
  • Low insertion loss
  • Wide pass band
  • High channel isolation
  • High stability and reliability
  • Epoxy free on optical path
Inquire Now      100G, 200G DWDM Module(4,8,16 Channels) 0





4/8/16 Channels 100G/200G DWDM Module



Features Applications
· Low insertion loss · Channel add/drop
· Wide pass band · ·DWDM network
· High channel isolation · Wavelength routing
· High stability and reliability · Fiber optical amplifier
· Epoxy free on optical path · CATV fiberoptic system



Performance Specifications

Parameter 4 Channels 8 Channels 16 Channels
Mux Demux Mux Demux Mux Demux
Center Wavelength (nm) ITU Grid
Channel Spacing (GHz) 100 /200
Channel Passband (@-0.5dB bandwidth) (nm) ≥0.22(100G)/ ≥0.5(200G)
lnsertion Loss (dB) ≤1.8 ≤3.0 LoW <3.5 Standard<5.0
Channel Ripple (dB) ≤0.5
lsolation (dB) Adjacent ≥30
Non-adjacent ≥40
lnsertion Loss Temperature Sensitivity (dB) ≤0.5
Wavelength Temperature Shifting(nm/℃) ≤0.001
Polarization Dependent Loss (dB) ≤0.2
Polarization Mode Dispersion (ps) ≤0.1
Directivity (dB) ≥45
Return Loss (dB) ≥45
Maximum Power Handling (mW) 300
Operating Temperature (℃) -10~+70
Storage Temperature ( ℃) -40~+85
Package Dimension (mm) L100 x W80 xH10 L120 x W80 x H18
19”1U Rackmount

Above specifications are for devices without connector.
Specifications may change without notice.



Ordering Information

CWDM □ □□ □ □ □ □
  Channel Spacing Pass Channel Package Fiber Diameter Fiber Length Connector
  C=20nm 27=1270nm 1=Steel Tube 0=250μm 1=1m O=None
    …… 2=ABS Box Module 1=900μm 2=2m 1=FC/APC
    47=1470nm 3=Specify 2=2.0mm S=Specify 2=FC/UPC
    49=1490nm   3=3.0mm   3=SCI/APC
    ……       4=SC/UPC
    61=1610nm       5=LC/APC
            6=LC/UPC
            7=ST
            s=Specify
