| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE,CPR, RoHS |
| Model Number: | JB |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Bare Copper, Solid | Insulation: | PVC T12(Y12) |
|---|---|---|---|
| Identification:: | Colored DIN VDE 0815 | Separator: | Polyester Foil |
| Drain Wire: | Tinned Copper, Solid | Shield: | Aluminum/PET Foil |
| High Light: | IEC 60332-1-2 Fire Rated Power Cable,Bare Copper Conductor Fire Safe Cable,PVC Jacket Fire Rated Flexible Cable |
||
| JB-Y(St)Y | J-Y(St)Y | |||||||
Technical Data and Standards |
|||||||
| Conductor: | Bare Copper, Solid | ||||||
| Conductor standard: | EN 60228 CI.1 | ||||||
| Insulation: | PVC T12(Y12) | ||||||
| Insulation Standard: | DIN VDE 0207 | ||||||
| Identification: | Colored DIN VDE 0815 | ||||||
| Separator: | Polyester Foil | ||||||
| Drain Wire | Tinned Copper, Solid | ||||||
| Shield: | Aluminum/PET Foil | ||||||
| Out Jacket: | PVC TM2(YM2) | ||||||
| Fire behaviour | IEC 60332-1-2 | ||||||
|
※ J- Installation Cable | B-Fire alarm | Y-PVC insulation | (St)-Electrostatic Screen | Y-PVC Jacket
|
|||||||
| COMPLIANCE (Reference Standard and Certificates) | |||||||
| · Conductor: EN 60228 CI.1 | |||||||
| · Insulation: EN 50363-3 | Jacket: EN50363-4-1 | |||||||
| · Fire behaviour: IEC 60332-1-2 | |||||||
|
|
|||||||
| Application Support | |||||||
| · These cables are designed for signal transmission in fire detection systems. | |||||||
| · For fixed installation on and under plaster,in dry and damp rooms but also in the open air for fixed installation on outer walls of buildings. |
|||||||
| Technical Data of conductor | |||||||
| Diameter(mm) | 0,80 | 1,00 | 1,13 | 1,50 | |||
| Section(mm²) | 0,50 | 0,80 | 1,00 | 1,80 | |||
| Cond. Resistance (ohm/km) | 34,50 | 22,00 | 17,20 | 9,80 | |||
| Cond. Loop Res.(ohm/km) | 69,00 | 44,00 | 34,40 | 19,60 | |||
| Electrical Characteristics | |||||||
| Peak Operating Voltage | 300 V | ||||||
| Operating Voltage Uo | 500 V | ||||||
| Test Voltage | 800 V | ||||||
| Insulation Resistance | ＞100M ohm/km | ||||||
| PHYSICAL PROPERTIES | |||||||
| Bend Radius(Min) | 10×OD of Jacket | ||||||
| Operating Temperature | -15 ℃ to 70 ℃ | ||||||
| Construction | |||||||
| Item | Inner Conductor | Insulation | Shield | Jacket | |||
| Cores | OD (mm) |
Section (mm²) |
OD (mm) |
Color | OD (mm) |
||
| JBYSY0102080 | 1×2 | 0,80 | 0,50 | 1,55 | R/B | PET Foil Drain Wire AL/PET Foil |
4,30 |
| JBYSY0104080 | 1×4 | 0,80 | 0,50 | 1,55 | R/B/W/Y | 5,10 | |
| JBYSY0202080 | 2×2 | 0,80 | 0,50 | 1,55 | R/B/W/Y | 6,50 | |
| JBYSY01020100 | 1×2 | 1,00 | 0,80 | 1,90 | R/B | 5,20 | |
| JBYSY0102113 | 1×2 | 1,13 | 1,00 | 45.0 | R/B | 5,60 | |
| JBYSY0102150 | 1×2 | 1,50 | 1,80 | 42.0 | R/B | 7,40 | |
| ※ R:RED B:BLACK W:WHITE Y:YELLOW | |||||||
| ※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm | |||||||
| Order Informations | |||||||
| Marking | HELLOSIGNAL JB-Y(ST)Y N×N×N Fire alarm Cable ...300M(or Per customer's request) | ||||||

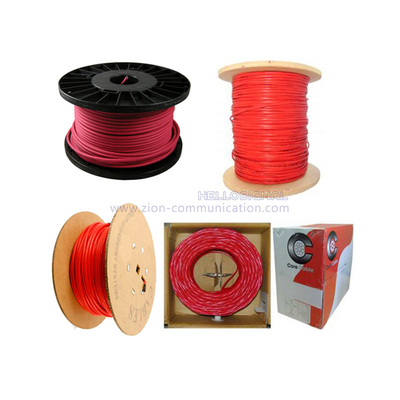

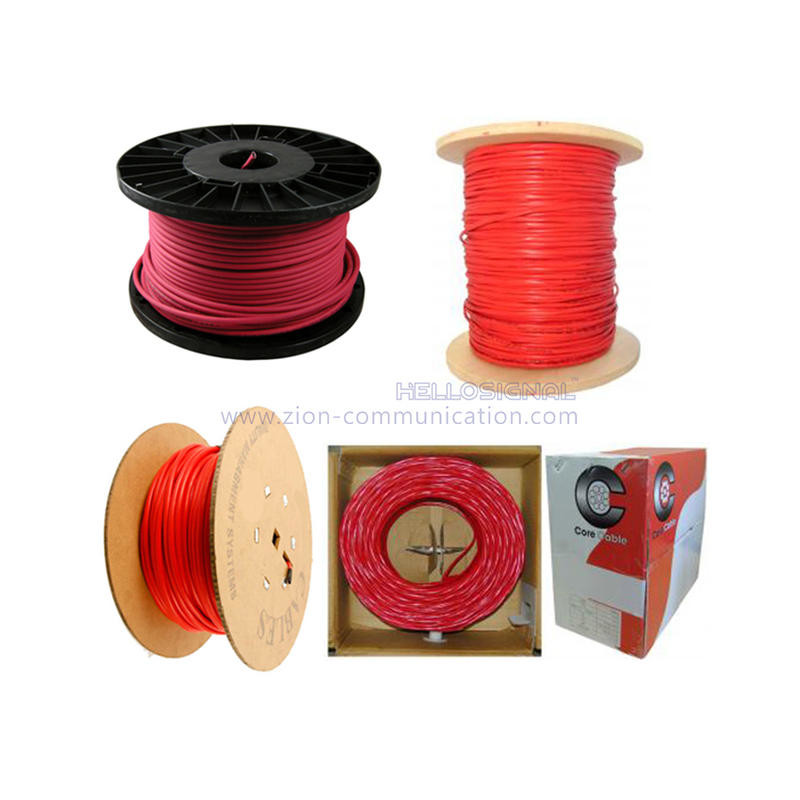

| Inner Package | 300m/Spool(or Per customer's request) | ||||||
| Outer Package | Carton, Pallet (or Per customer's request) | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||
