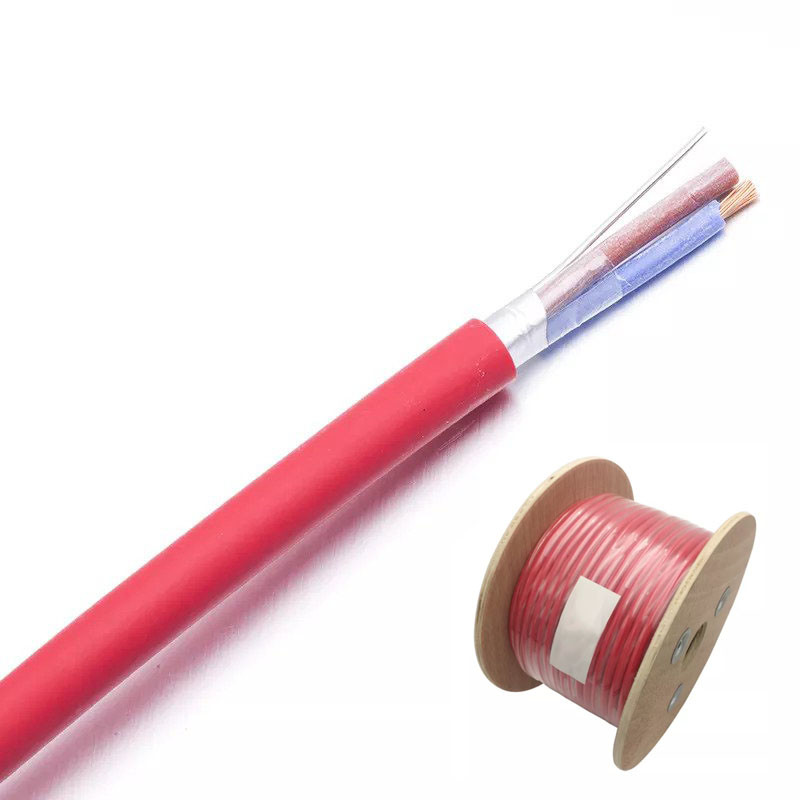

Name: PH30 2×6.0mm2 2 Core Fire Resistant Electrical Cable PH30 LSZH 2 Core Security
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: EN50200 PH30 Cable
Availability: InStock

PH30 2×6.0mm2 2 Core Fire Resistant Electrical Cable PH30 LSZH 2 Core Security

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL, CUL, LPCB
Model Number:	EN50200 PH30 Cable

Minimum Order Quantity:	20 KM
Packaging Details:	300M, 500M, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Plain Annealed Copper Wire	Insulation:	Fire Resistant Silicone Rubber
Shield1:	PET Foil	Drain Wire:	Solid Tinned Copper
Shield2:	Aluminum PET	Jacket:	FR-LSZH
Color:	Red Or White	Package:	300M, 500M, Wooden Reel, Carton
Highlight:	Fire Alarm Cable 2×6.0mm2 , LSZH 2 Core Fire Resistive Cable

Product Description

PH30 2×6.0mm² Fire Alarm Cables NO.7110405


CABLE CONSTRUCTION:
Conductor:	6.0mm(sqmm) Plain annealed copper wire, class 1,2 or 5 according to EN60228.

Insulation:	Fire resistant silicone rubber BS 6387 CWZ,EN 50200 PH30,IEC 60331

	Dia.over Dielectric:2x(0.0185"(4.7 mm))
Insulation Color:	Blue / Brown
Separator:	PET Foil
Drain Wire:	0.80 mm Solid tinned copper
Shield:	Aluminum PET (100% Coverage 20% overlapping)
Jacket:	FR-LSZH (Red or White)
	Dia.over Jacket: 0.452''±0.006''(11.5±0.15mm)
	HFFR EN 502902,BS7655 LTS1/LTS3
Print Legend:	HELLOSIGNAL Fire Alarm Cable PH30 6.0mm² 2 Cores Class N BC BS 50200:2006 NO.7110405 ××××M/FT


ELECTRICAL PROPERTIES(at20℃):
Min.Bend Radius:		8×Diameter
Min.Insulation resistance:		200 MΩ/km
Max.Working Temperature:		.-30℃~+90℃
Test voitage:		2000 V
Max.Operating voitage:		300 V / 600 V
Max.resistance of Cond:		Class1,2:2.88Ω/km		Class5:3.12Ω/km
Current Carrying Capacity:
Nominal Capacitance:

Cross Section :














Test Standards
Flame Tests	Insualtion Integrity		Smoke Density	Corrosive Gas Easurement
BS 4066 part 1 & 3	IEC 60331		BS 7622	BS EN 50267-2-2
EN 50266-2-4	BS 6387 CWZ		IEC/EN 61034	IEC 60754-2
IEC 60332-3-24	EN 50200 PH30		HD 606
IEC/EN 60332-1

Order Informations :
Package		100M/Wooden Spool,200M/Wooden Spool,500M/Wooden Spool
Delivery time		Normally 25 days after received the deposit.
Brand		HELLOSIGNAL^® OR OEM
