Detail Information

Conductor:	Plain Annealed Copper Wire	Insulation:	Fire Resistant Silicone Rubber
Shield1:	PET Foil	Drain Wire:	Solid Tinned Copper
Shield2:	Aluminum PET	Jacket:	FR-LSZH
Color:	Red Or White	Package:	300M, 500M, Wooden Reel, Carton
Highlight:	2core Fire Alarm Cable , Red Fire Alarm Cable 2×2.5mm2 , Fire Retardant Wire OEM

Product Description

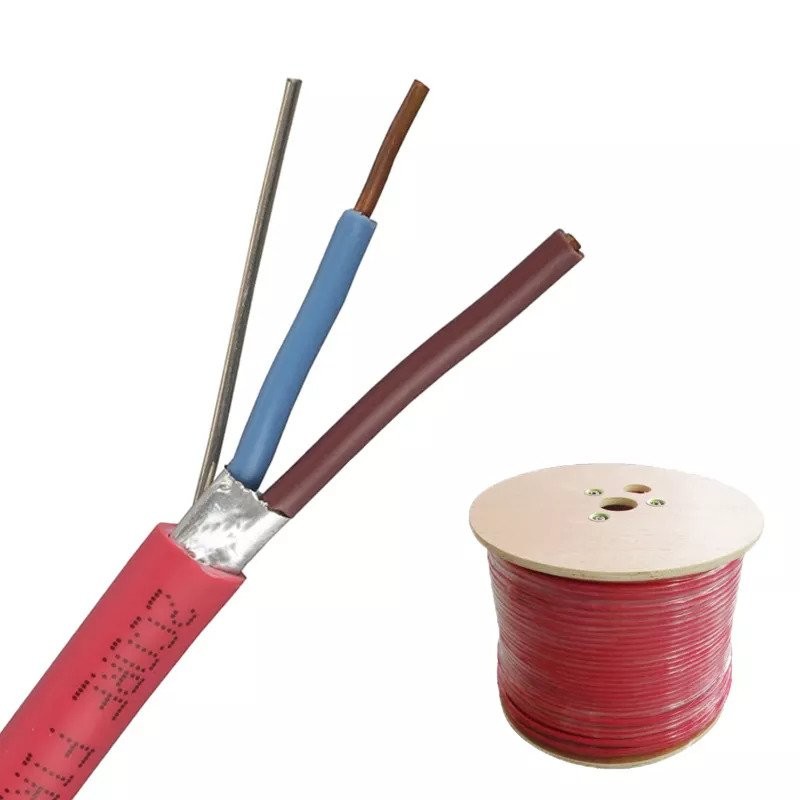

PH30 2×2.5mm² Fire Alarm Cable

Product Code: NO.7110403

Cable Construction

Conductor

2.5mm² plain annealed copper wire, class 1, 2 or 5 according to EN60228

Insulation

Fire resistant silicone rubber BS 6387 CWZ, EN 50200 PH30, IEC 60331
Diameter over Dielectric: 2×(3.2 mm)

Insulation Color

Blue / Brown

Separator

PET Foil

Drain Wire

0.80 mm solid tinned copper

Shield

Aluminum PET (100% Coverage 20% overlapping)

Jacket

FR-LSZH (Red or White)
Diameter over Jacket: 8.30±0.15mm
HFFR EN 502902, BS7655 LTS1/LTS3

Print Legend

HELLOSIGNAL Fire Alarm Cable PH30 2.5mm² 2 Cores Class N BC BS 50200:2006 NO.7110403 ××××M/FT

Electrical Properties

Minimum Bend Radius

8×Diameter

Minimum Insulation Resistance

200 MΩ/km

Working Temperature Range

-30℃ to +90℃

Test Voltage

2000 V

Maximum Operating Voltage

300 V / 600 V

Maximum Conductor Resistance

Class 1,2: 7.4Ω/km | Class 5: 8.0Ω/km

Cross Section

Order Information

Package Options

Inquired length on reel, pull box, plastic spool, wooden spool, pallet

Delivery Time

Normally 25 days after receiving deposit

Brand

HELLOSIGNAL® or OEM

Similar Cable Types

Code	Nominal Conductor Cross-Section (mm²)	Conductor Size (no./mm)	Drain Wire Size (no./mm)	Cable Diameter mm (±5%)
7110401	2×1.0	30/0.2	1/0.80	6.1
7110402	2×1.5	30/0.25	1/0.80	7.5
7110403	2×2.5	49/0.25	1/0.80	8.5
7110404	2×4.0	56/0.3	1/0.80	9.6
7110405	2×6.0	85/0.3	1/0.80	11.5
7110406	3×1.0	30/0.2	1/0.80	6.5
7110407	3×1.5	30/0.25	1/0.80	7.4
7110408	3×2.5	49/0.25	1/0.80	8.65
7110409	3×4.0	56/0.3	1/0.80	10.1
7110410	4×1.0	30/0.2	1/0.80	7.1
7110411	4×1.5	30/0.25	1/0.80	8.2
7110412	4×2.5	49/0.25	1/0.80	9.75
7110413	4×4.0	56/0.3	1/0.80	11.4
7110414	7×1.0	30/0.2	1/0.80	10.0
7110415	7×1.5	30/0.25	1/0.80	11.3
7110416	12×1.0	30/0.2	1/0.80	12.5
7110417	12×1.5	30/0.25	1/0.80	14.5
7110418	19×1.0	30/0.2	1/0.80	15.0
7110419	19×1.5	30/0.25	1/0.80	17.0

Tag:

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL, CUL, LPCB
Model Number:	EN50200 PH30 Cable

Minimum Order Quantity:	20 KM
Packaging Details:	300M, 500M, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month
