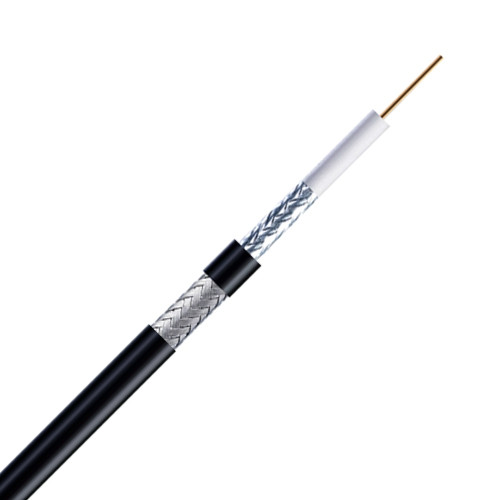

Name: 75 Ohm RG59 UK BC 47% AL PVC UK Standard Coaxial Cable for CCTV
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: RG59 Coaxial Cable
Availability: InStock

Detail Information

Conductor:	22 AWG BC	Insulation:	Solid PE
Shield:	Bare Copper Braid Wire 95% Coverage	Jacket:	PVC CM
Color:	Black, White	Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	75 Ohm Rg59 Cctv Cable , Cctv Siamese Cable RG59 , UK Standard RG59 Coaxial Cable

Product Description

RG59 UK BC 47% AL PVC 75 Ohm CCTV coaxial Cable NO.7100174



Construction Parameters:
Inner Conductor			0.028"/0.7m/22 AWG BC
Dielectric			0.106"/2.70±0.05mm Foamed Polyethylene
Shield			0.005"/0.12mm Aluminum(47%)
Jacket			0.230"/6.00±0.1mm PVC
Application			For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance			54 Ohms/KM at 20℃

Capacitance			52±1 pF/m 17±0.35 pF/ft
Impedance			75 ± 3 Ω
Return loss			between 5 and 1000MHz: > 22dB
Velocity of Propagation			0.66
Sparker Test (VAC)			3

Mechanical and Envrionmental Properties
Cable bend radius			10 times the cable diameter
Operating Temp Range			-20 ℃ to 60℃
Cable diamensions			0.230"/6.00±0.1mm PVC

Cross Section














Attenuation(20℃):
Frequency (MHZ)			Max Attenuation(dB/100ft)			Max Attenuation (dB/100m)
5			0.82			2.50
10			0.92			2.80
50			2.13			6.50
100			2.92			8.90
200			4.20			12.80
400			6.07			18.50
700			7.51			22.90
900			8.79			26.80
1000			9.25			28.20
Order Informations:
Marking			HELLOSIGNAL RG59 UK BC 47% AL PVC CCTV COAXIAL CABLE 7100174 ×××M/FT
Package			Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time			Normally 25 days after received the deposit.
Brand			HELLOSIGNAL®OR OEM

Similar Type:
	Cond.Type &Nom.D.C.R	Dielectric	Shielding& %Coverage	Jacket Type	Nom. Capacitance	Nom.Imp.Ω
RG59 B/U BC 95% BC PVC NO.7100167	23AWG/0.58mm BC 65.26 Ω/km	Soild PE	BC-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 B/U BC 95% CCA PVC NO.7100168	23AWG/0.58mm BC 65.26 Ω/km	Soild PE	CCA-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 B/U BC 95% BC PE NO.7100169	23AWG/0.58mm BC 65.26 Ω/km	Soild PE	BC-Braid 95%	PE	67±2 pF/m	75±3Ω
RG59 B/U BC 95% CCA PE NO.7100170	23AWG/0.58mm BC 65.26 Ω/km	Soild PE	CCA-Braid 95%	PE	52±2 pF/m	75±3Ω
RG59 Micro 95% CCA PVC NO.7100171	7×0.18mm (STR)BC 20.74 Ω/km	Soild PE	CCA-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 ST BC 95% CCA PVC NO.7100172	22AWG/0.64mm (SOL)BC 54 Ω/km	Soild PE	CCA-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 ST BC 85% CCA PVC NO.7100173	22AWG/0.64mm (SOL)BC 54 Ω/km	Soild PE	CCA-Braid 85%	PVC	67±2 pF/m	75±3Ω

Tag:

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month
