95% CCA Braid PVC Jacket RG59 Micro Coaxial Cable with 75 Ohm Impedance for CCTV

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	7×33 AWG BC	Insulation:	Solid PE
Shield:	Bare Copper Braid Wire 95% Coverage	Jacket:	PVC CM
Color:	Black, White	Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	7×33 AWG BC Coaxial Cable Rg59 , PVC CM CCTV Communication Cable

Product Description

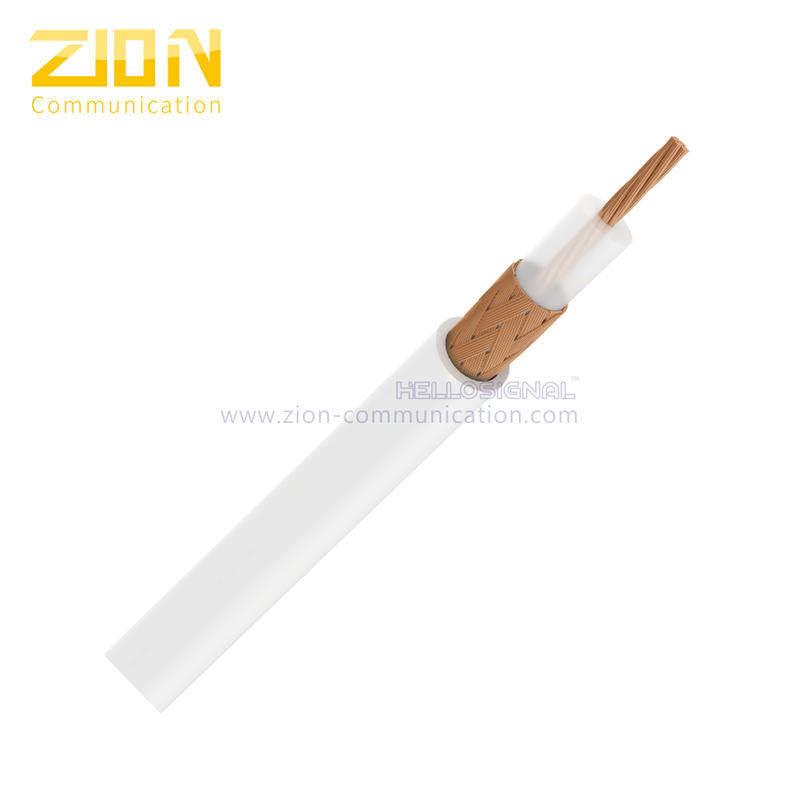

RG59 Micro 95% CCA PVC CCTV Coaxial Cable

75 Ohm CCTV coaxial cable designed for extended surveillance system installations

Product Number: NO.7100171

Similar Cable Types

Type & Number	Conductor Type & Resistance	Dielectric	Shielding & Coverage	Jacket Type	Capacitance	Impedance
RG59 B/U BC 95% BC PVC NO.7100167	23AWG /0.58mm BC 65.26 Ω/km	Solid PE	BC-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 B/U BC 95% CCA PVC NO.7100168	23AWG /0.58mm BC 65.26 Ω/km	Solid PE	CCA-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 B/U BC 95% BC PE NO.7100169	23AWG /0.58mm BC 65.26 Ω/km	Solid PE	BC-Braid 95%	PE	67±2 pF/m	75±3Ω
RG59 B/U BC 95% CCA PE NO.7100170	23AWG /0.58mm BC 65.26 Ω/km	Solid PE	CCA-Braid 95%	PE	52±2 pF/m	75±3Ω
RG59 ST BC 95% CCA PVC NO.7100172	22AWG/0.64mm (SOL)BC 54 Ω/km	Solid PE	CCA-Braid 95%	PVC	67±2 pF/m	75±3Ω
RG59 ST BC 85% CCA PVC NO.7100173	22AWG/0.64mm (SOL)BC 54 Ω/km	Solid PE	CCA-Braid 85%	PVC	67±2 pF/m	75±3Ω
RG59 UK BC 47% AL PVC NO.7100174	22AWG/0.70mm (SOL)BC 45 Ω/km	Foamed PE	Al-Braid 47%	PVC	52±1 pF/m	75±3Ω

Construction Parameters

Inner Conductor: 7×0.007"/7×0.18mm/7×33 AWG BC
Dielectric: 0.087"/2.2±0.05mm Solid PE
Shield: 0.12mm/34AWG Copper Clad Aluminum (95%)
Jacket: 0.160"/4.05±0.1mm PVC
Application: For Use in Longer CCTV Run Lengths

Electrical Characteristics

Inner Conductor Resistance: 20.74 Ohms/KM at 20℃
Capacitance: 52±2 pF/m
Impedance: 75 ± 3 Ω
Return Loss: between 5 and 1000MHz: > 22dB
Velocity of Propagation: 0.66
Sparker Test (VAC): 3

Mechanical and Environmental Properties

Cable Bend Radius: 10 times the cable diameter
Operating Temperature Range: -20℃ to 60℃
Cable Dimensions: 0.238"±0.006"/6.05±0.15mm PE

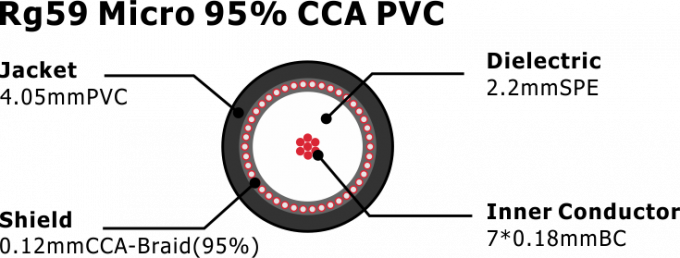

Cross Section

Attenuation Characteristics (20℃)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	1.43	4.30
50	5.08	15.23
100	7.26	21.77
200	10.44	31.33
550	18.04	54.12
750	20.14	60.43
865	22.37	67.11
1000	25.90	77.69

Order Information

Marking: HELLOSIGNAL RG59 Micro 95% CCA PVC CCTV COAXIAL CABLE 7100171 ×××M/FT
Package: Inquired Length on Reel, Pull Box, Plastic Spool, Wooden Spool, Pallet
Delivery Time: Normally 25 days after receiving deposit
Brand: HELLOSIGNAL® OR OEM
