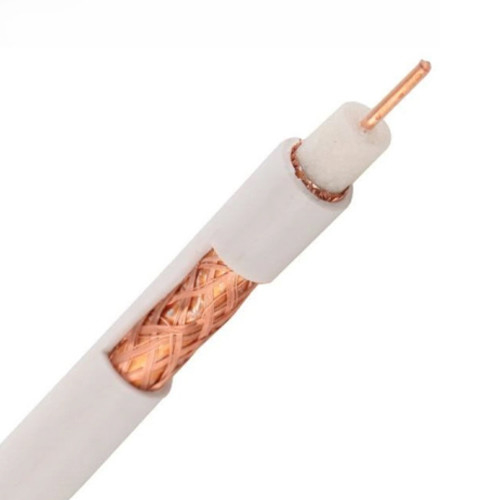

RG59 CCTV Coaxial Cable with 95% Bare Copper Braid Shield 20 AWG BC Conductor and PVC CMP Jacket for Long CCTV Runs

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	20 AWG BC	Insulation:	Foamed PE
Shield:	Bare Copper Braid Wire 95% Coverage	Jacket:	PVC CM
Color:	Black, White	Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	20 AWG BC RG59 Cctv Cable , Rg59 Cable For Security Cameras , Foamed PE Rg59 Coaxial Cable

Product Description

RG59 BC 95% CCA PVC CMP CCTV Coaxial Cable

Professional-grade 75 Ohm CCTV coaxial cable designed for extended surveillance system installations with superior signal integrity.

Product Specifications

Product Code: NO.7100166

Conductor: 20AWG Solid Bare Copper (BC)

Dielectric: Foamed PE

Shielding: 95% CCA Braid Coverage

Jacket: PVC CMP

Impedance: 75 ± 3 Ω

Construction Parameters

Inner Conductor: 0.032"/0.81mm/20 AWG BC
Dielectric: 0.135"/3.43mm Foamed FEP
Shield: 0.12mm Bare Copper braid wire 95% coverage
Jacket: 0.193"±0.006"/4.90±0.15mm PVC CMP
Jacket Thickness: 0.032"/0.81mm

Electrical Characteristics

Inner Conductor Resistance: Max. at 20℃: < 21.2 Ω/km (6.96 Ω/kft)
Capacitance: 52 ±3 pF/m (17±0.3 pF/ft)
Impedance: 75 ± 3 Ω
Return Loss: between 5 and 1000MHz: > 22dB
Velocity of Propagation: 0.85
Sparker Test (VAC): 4

Attenuation Performance (20℃)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
1	0.30	0.98
10	0.95	3.11
100	2.95	9.67
200	4.50	14.75
400	6.80	22.30
700	9.67	31.70
900	10.60	34.75
1000	11.47	37.61

Mechanical & Environmental Properties

Cable Bend Radius: 10 times the cable diameter
Operating Temperature Range: -20℃ to 60℃
Cable Dimensions: 0.193"±0.006"/4.90±0.15mm

Cross Section View

Packing Options

We offer comprehensive packaging solutions including reel, plastic spool, wooden spool, pull box, colorful carton, pallet and more. Our design team provides optimal packaging solutions for size, durability, and professional appearance.

Order Information

Marking: HELLOSIGNAL RG59 BC 95% BC PVC CCTV COAXIAL CABLE 7100166 ×××M/FT
Package: Custom lengths available on reel, pull box, plastic spool, wooden spool, pallet
Delivery Time: Typically 25 days after deposit receipt
Brand: HELLOSIGNAL® or OEM available

Model	Conductor Type & DCR	Shielding	Shielding Coverage	Jacket Type	Capacitance	Impedance
NO.7100161	20AWG(SOL)BC 33.4 Ω/km	Foamed PE	BC-Braid 95%	PVC CM	52±3pF/m	75±3Ω
NO.7100162	20AWG(SOL)BC 33.4 Ω/km	Foamed PE	BC-Braid 95%	PVC CMR	52±3pF/m	75±3Ω
NO.7100163	20AWG(SOL)BC 33.4 Ω/km	Foamed PE	BC-Braid 95%	PVC CMP	52±3pF/m	75±3Ω
NO.7100164	20AWG(SOL)BC 33.4 Ω/km	Foamed PE	CCA-Braid 95%	PVC CM	52±3pF/m	75±3Ω
NO.7100165	20AWG(SOL)BC 33.4 Ω/km	Foamed PE	CCA-Braid 95%	PVC CMR	52±3pF/m	75±3Ω
