75 Ohm Impedance RG59 Siamese Cable with 2x0.75mm2 Power Cores and 95% BC Braid Shield for CCTV

Basic Information

Place of Origin:	China
Brand Name:	hellosignal
Certification:	UL, CE, RoHS
Model Number:	CCTV SURVEILLANCE CABLE

Minimum Order Quantity:	30 KM
Packaging Details:	500FT, 1000FT Wooden Reel or Spool in Box
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Bare Copper	Dielectric:	Solid Polyethylene
Shield:	BC-Braid(95%)	Power Wire Conductor:	BC
Power Wire Diameter Of Insulation:	PVC(Red,Black)	Jacket:	PVC/PE/LSZH
Highlight:	75 Ohm Impedance CCTV Coaxial Cable , 2x0.75mm2 Power Cores RG59 Siamese Cable , 95% BC Braid Shield Figure 8 Cable

Product Description

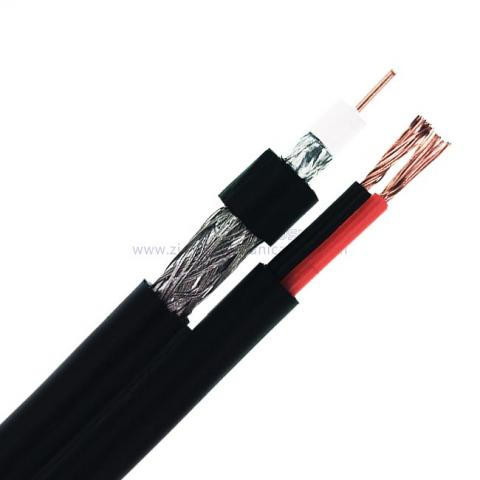

RG59 CCS with 2C x0.75 Figure 8 CCTV Coaxial Cable

RG59CCS+2x0.75, Figure 8 - 75 Ohm CCTV Coaxial Cable with Power Cores

Product Number: NO.7102044

Construction Parameters

Inner Conductor: 0.643mm CCS

Dielectric: 3.71mm Foamed Polyethylene

Shield 1: AL Foil

Shield 2: 0.12mm x 32 AL wire

Jacket: 6.0mm PVC/PE/LSZH

Power Wire Conductor: 2x (16*0.25mm CCA)

Power Wire Insulation Diameter: 2.0mm PVC (Red, Black)

Jacket: 5.0mm PVC/PE/LSZH

Electrical Characteristics

Inner Conductor Resistance: 252.83 Ohms/KM at 20℃

Capacitance: 62±2 pF/m

Impedance: 75 ± 3 Ω

Return Loss: between 5 and 1000MHz: > 22dB

Velocity of Propagation: 0.66

Sparker Test (VAC): 3

Mechanical and Environmental Properties

Cable Bend Radius: 10 times the cable diameter

Operating Temperature Range: -20℃ to 60℃

Cable Dimensions: 6.0×5.05mm

Application

Designed for use in longer CCTV run lengths, providing reliable signal transmission and power delivery.

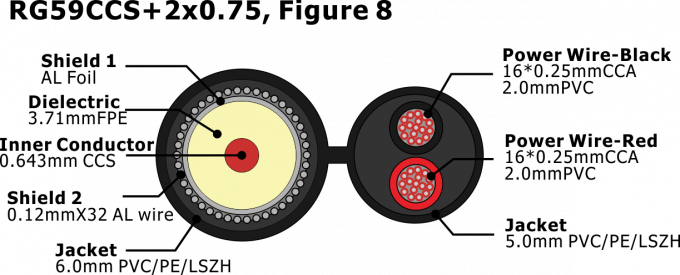

Cross Section

Attenuation Characteristics (20℃)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.66	2.16
50	2.07	6.78
100	2.92	9.58
300	5.06	16.58
450	6.19	20.31
865	8.58	28.15
1000	9.23	30.26
1750	12.20	40.03
2150	13.53	44.37
2500	14.59	47.84
3000	15.98	52.41

Order Information

Marking: HELLOSIGNAL RG59CCS+2x0.75, Figure 8 CCTV COAXIAL CABLE 7102044 ×××M/FT

Package: Inquired Length on Reel, Pull Box, Plastic Spool, Wooden Spool, Pallet

Delivery Time: Normally 25 days after receiving deposit

Brand: HELLOSIGNAL® or OEM
