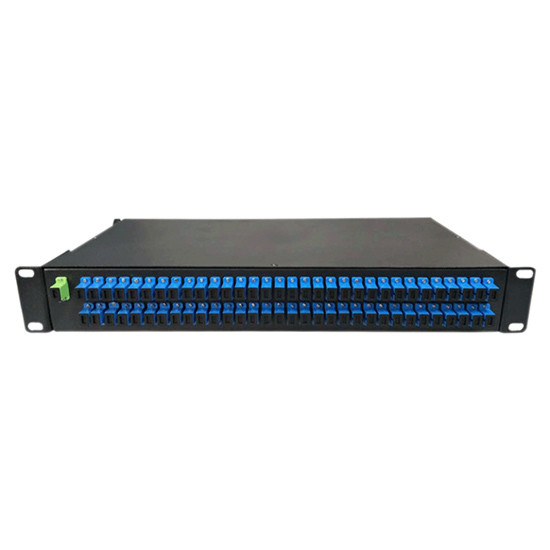

Name: 1×64 Configuration Rack Mounted ODF Type Optical Splitter PLC Fiber Coupler with SC Fiber Adapters
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: PLC Splitter
Availability: InStock

Detail Information

Operating Wavelength (nm):

1260~1650nm

Fiber Length:

Operating Temperature (℃):

-40 ～ 85

Connector Type:

SC/APC,SC/UPC,LC FC ST

Highlight:

fiber optic splitter

plc optical splitter

Product Description

Optical Splitter 1×64 Rack Mounted ODF Type

Single Mode PLC Fiber Coupler with SC Fiber Adapters (7233216)

Product Overview

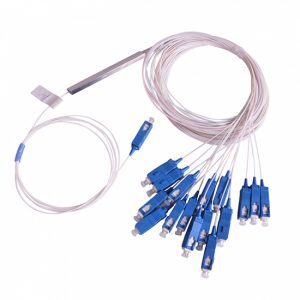

High-performance fiber optic splitter available in 1×4, 1×8, 1×16, and 1×32 configurations with SC, LC, FC, ST/APC UPC connectors in both FBT and PLC technologies.

Applications

FTTH (Fiber to the Home) networks
LAN (Local Area Networks)
PON & Optical CATV systems
Local ring networks
Optical fiber communication systems
Optical fiber test equipment
Optical fiber sensors

Technical Specifications

Parameter	Specification
Configuration Type	1×64
Operating Wavelength	1260~1650nm
Fiber Length	1m
Directivity	≥55 dB
Package Style	19″ Rack Mounted ODF
Fiber Type	Singlemode G657A1 or G652D
Fiber Diameter	0.9mm, 2.0mm, 3.0mm
Polarization Dependent Loss	≤0.4 dB
Wavelength Dependent Loss	≤0.8 dB
Typical Insertion Loss	≤19.7 dB
Insertion Loss	≤21.2 dB
Loss Uniformity	≤2.5 dB
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Package Dimensions	485×75×195 mm
Connector Type	SC/APC, SC/UPC, LC, FC, ST
Brand	HELLOSIGNAL® OR OEM
Delivery Time	25 days after deposit
Minimum Order Quantity	20 pieces

Product Introduction

The PLC Splitter 1×64 Blockless Mini Steel Tube Type Fiber Optic PLC Splitter features single-mode 900μm SC/APC connectors. Planar lightwave circuit (PLC) splitters are optical power management devices fabricated using silica optical waveguide technology, offering small size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity. Widely used in PON networks for optical signal power splitting, these products meet GR-1209-CORE and GR-1221-CORE requirements.

Performance Specifications

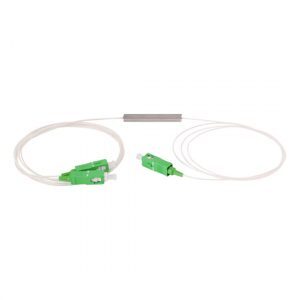

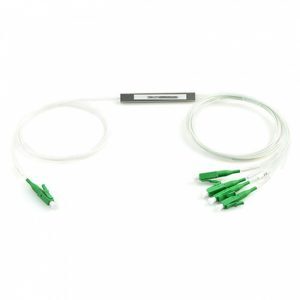

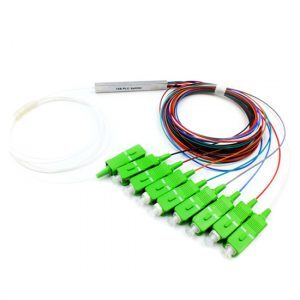

Splitter Type	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Insertion Loss (P/S Grade)	3.8/4.0 dB	7.2/7.4 dB	10.3/10.7 dB	13.5/13.7 dB	16.5/16.9 dB	20.5/21.0 dB	23.8/24.2 dB
Loss Uniformity	<0.4 dB	<0.6 dB	<0.8 dB	<1.0 dB	<1.5 dB	<2.0 dB	<2.5 dB
PDL	<0.2 dB	<0.2 dB	<0.2 dB	<0.3 dB	<0.3 dB	<0.4 dB	<0.4 dB
Return Loss	>55 dB	>55 dB	>55 dB	>55 dB	>55 dB	>55 dB	>55 dB
Directivity	>55 dB	>55 dB	>55 dB	>55 dB	>55 dB	>55 dB	>55 dB
Wavelength Dependent Loss	<0.5 dB	<0.5 dB	<0.5 dB	<0.5 dB	<1.0 dB	<1.0 dB	<1.0 dB

Note: Above specifications are for devices without connectors. Add an additional 0.2dB loss per connector.

Configuration Options

Port	Package	Fiber Diameter	Fiber Length	Connector
0102 = 1×2 0104 = 1×4 0108 = 1×8 0116 = 1×16 0132 = 1×32 0164 = 1×64 1128 = 1×128	1=Bare 2=Blockless 3=ABS Box 4=Insert Box 5=Pallet Type 6=Rackmount Z=Customized	0=250μm 1=900μm 2=2.0mm 3=3.0mm	0=0.5m 1=1.0m 2=1.5m 3=2.0m 4=3.0m 5=4.0m Z=Customized	0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST Z=Customized

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM
Model Number:	PLC Splitter

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit
