| Place of Origin: | China |
|---|---|
| Brand Name: | Hello Signal |
| Certification: | IEC 60825-1:2007 |
| Model Number: | SFP |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC/Plastic Bag |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Form Factor: | SFP | Max Data Rate: | 1.25 Gbps |
|---|---|---|---|
| Wavelength: | 1550nm | Max Cable Distance1: | 120KM On SMF |
| Connector Type: | Duplex LC | Transimitter Type: | DFB |
| Fiber Cable Type: | SMF | Operating Temp.: | 0°C To 70°C (32°F To 158°F) |
| High Light: | Fiber Optic Transceiver 1.25G SFP,Fiber Optic Transceiver 1.25 Gbps SFP,120KM 1.25 Gbps SFP |
||

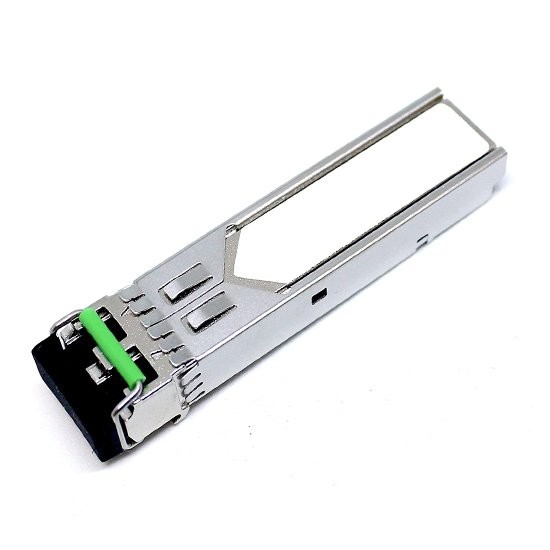

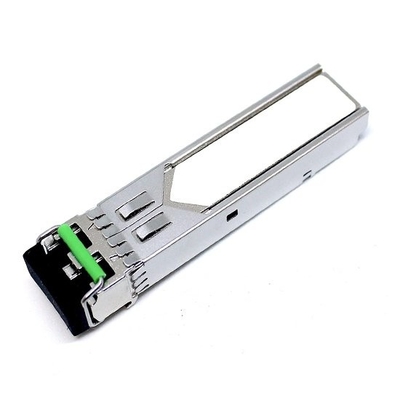

1.25G SFP ZX 1550nm 120KM LC SMF Fiber Optic Transceiver
| Zion Code | Zion Description |
| 7214070 | 1.25G SFP ZX 1550nm 120KM LC SMF Fiber Optic Transceiver |
1.25G SFP ZX 1550nm 120KM LC SMF Fiber Optic Transceiver Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the APD .The module data link up to 120KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
| Form Factor | SFP | Vendor Name | Zion Communication | |||||
| Wavelength | 1550nm | |||||||
| Max Cable Distance | 120KM on SMF | Connector type | Duplex LC | |||||
| Fiber cable Type | SMF | Max Data Rate | 1.25 Gbps | |||||
| Transimitter Type | DFB | Receiver Type | APD | |||||
| Transmit Power | 0~5 dBm | Receiver sensitivity | ＜- 34 dBm | |||||
| DDM | Supported | Operating Temp. | 0°C to 70°C (32°F to 158°F) | |||||
| Zion Code | Zion Description | |||||||
| 7214010 | 1.25G SFP SX 850nm 550M LC MMF Fiber Optic Transceiver | |||||||
| 7214020 | 1.25G SFP LX 1310nm 10KM LC SMF Fiber Optic Transceiver | |||||||
| 7214030 | 1.25G SFP LX/LH 1310nm 20KM LC SMF Fiber Optic Transceiver | |||||||
| 7214040 | 1.25G SFP EX 1310nm 40KM LC SMF Fiber Optic Transceiver | |||||||
| 7214050 | 1.25G SFP EX 1550nm 40KM LC SMF Fiber Optic Transceiver | |||||||
| 7214060 | 1.25G SFP ZX 1550nm 80KM LC SMF Fiber Optic Transceiver | |||||||
| 7214070 | 1.25G SFP ZX 1550nm 120KM LC SMF Fiber Optic Transceiver | |||||||
| 7214080 | 1.25G SFP ZX 1550nm 160KM LC SMF Fiber Optic Transceiver | |||||||
| 7214110 | 1.25G BIDI SFP TX1310/RX1550nm(TX1550/RX1310nm) 10KM LC SMF Fiber Optic Transceiver | |||||||
| 7214120 | 1.25G BIDI SFP TX1310/RX1550nm(TX1550/RX1310nm) 20KM LC SMF Fiber Optic Transceiver | |||||||
| 7214130 | 1.25G BIDI SFP TX1310/RX1550nm(TX1550/RX1310nm) 40KM LC SMF Fiber Optic Transceiver | |||||||
| 7214140 | 1.25G BIDI SFP TX1490/RX1550nm(TX1550/RX1490nm) 80KM LC SMF Fiber Optic Transceiver | |||||||
| 7214150 | 1.25G BIDI SFP TX1490/RX1550nm(TX1550/RX1490nm) 120KM LC SMF Fiber Optic Transceiver | |||||||
| 7214210 | 1.25G CWDM SFP 20KM LC SMF Fiber Optic Transceiver | |||||||
| 7214220 | 1.25G CWDM SFP 40KM LC SMF Fiber Optic Transceiver | |||||||
| 7214230 | 1.25G CWDM SFP 80KM LC SMF Fiber Optic Transceiver | |||||||
| 7214240 | 1.25G CWDM SFP 120KM LC SMF Fiber Optic Transceiver | |||||||
| 7214250 | 1.25G CWDM SFP 160KM LC SMF Fiber Optic Transceiver | |||||||
| 7214310 | 1.25G DWDM SFP 40KM LC SMF Fiber Optic Transceiver | |||||||
| 7214320 | 1.25G DWDM SFP 80KM LC SMF Fiber Optic Transceiver | |||||||
| 7214330 | 1.25G DWDM SFP 120KM LC SMF Fiber Optic Transceiver | |||||||
