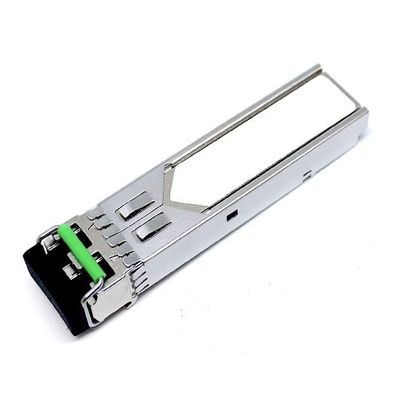

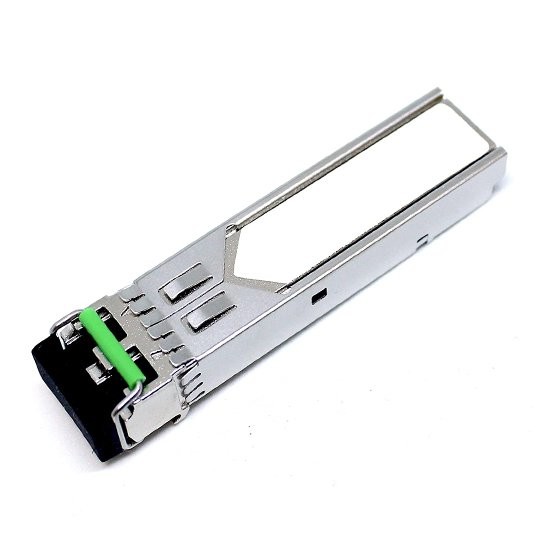

1.25 Gbps SFP Fiber Optic Transceiver with 1550nm Wavelength for 120KM Transmission on SMF

High-performance 1.25G SFP ZX transceiver operating at 1550nm wavelength with 120KM transmission distance over single-mode fiber.

1.25G SFP ZX 1550nm 120KM LC SMF Fiber Optic Transceiver Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the APD. The module data link up to 120KM in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
