| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | EN50200 PH30 2×16AWG |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 300M, 500M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | 30/0.230mm Plain Annealed Copper Wire, | Insulation: | Fire Resistant Silicone Rubber According To BS 7655-E12 / E12 To BS EN 50363-1 |
|---|---|---|---|
| Shield: | PET Foil (Polyester Tape) | Jacket: | FR-LSZH |
| Color: | Red Or White | Package: | 300M, 500M, Wooden Reel, Carton |
| High Light: | 2x16AWG Fire Resistant Cable,Silicone Rubber Fire Resistant Cable,EN50200 Fire Resistant Cable |
||

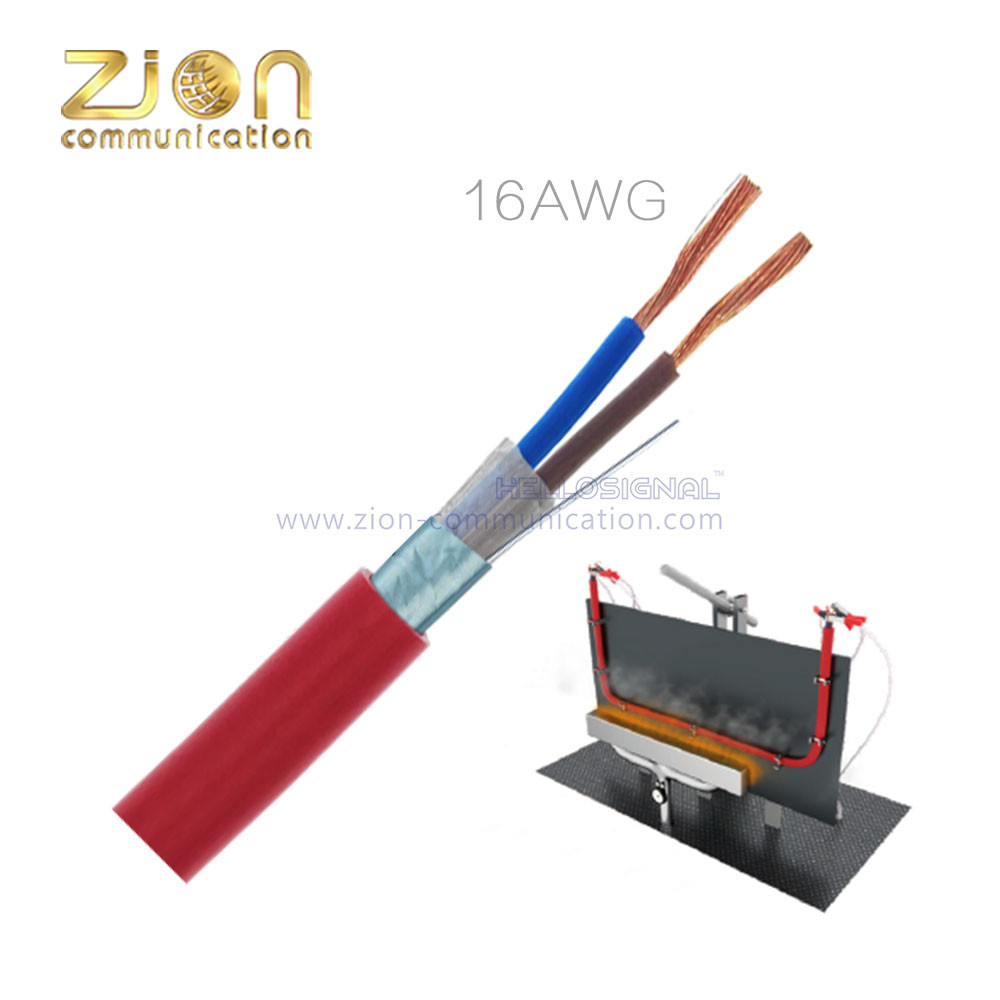

EN50200 PH30 2×16AWG Fire Resistant Cable Fire Resistant Silicone Rubber
| EN50200 PH30 2×16AWG (NO.7110402E) | ||||
| Cable Construction : | ||||
| Conductor: | 30/0.230mm Plain annealed copper wire, | |||
| Insulation: | Fire resistant silicone rubber according to BS 7655-E12 / E12 to BS EN 50363-1 |
|||
| Dia.over Dielectric: 2x2.4 mm | ||||
| Insulation Color: | Blue / Brown | |||
| Separator: | PET Foil (Polyester tape) | |||
| Drain Wire: | 0.40 mm Solid tinned copper | |||
| Shield: | Aluminum Polyester Tape (100% Coverage 20% overlapping) |
|||
| Jacket: | FR-LSZH (Red or White) | |||
| Dia.over Jacket: 6.70±0.2mm | ||||
| HFFR EN 50290-2,BS7655 LTS1/LTS3 | ||||
| Print Legend: | HELLOSIGNAL Fire Alarm Cable PH30 16AWG 2 Cores Class N BC BS 50200 NO.7110402E ××××M/FT |
|||
| Electrical properties (at20℃): | ||||
| Min.Bend Radius: | 8×Diameter | |||
| Min.Insulation resistance: | 200 MΩ/km | |||
| Max.Working Temperature: | -30℃~+90℃ | |||
| Test voitage: | 2000 V | |||
| Max.Operating voitage: | 300 V /600 V (Including ＜60 V) | |||
| Max.resistance of Cond: | 14.1Ω/km | |||
| Current Carrying Capacity: | ||||
| Mainly Test Standards: | ||||
| Fire resistant: | EN50200 (30min) | IEC 60331-1/2 (30min) | |||
| Acid Gas emission: | EN 60754-1 | IEC 60754-1 | |||
| Smoke Density: | EN 61034-2 | IEC 61034-2 | |||
| Order Informations: | ||||
| Package | 200M/Wooden Spool,500M/Wooden Spool | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
