| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | BS6387 Fire alarm Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 300M, 500M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Plain Annealed Copper Wire, Stranded Class 5 | Insulation: | Special Mix Silicon Rubber |
|---|---|---|---|
| Shield: | Aluminum/ PETP Tape Over 0.4mm Tinned Copper Drain Wire | Jacket: | Thermoplastic Low Smoke, Halogen Free |
| Color: | Red | Package: | 300M, 500M, Wooden Reel, Carton |
| High Light: | BS6387 Standard Fire Alarm Cable,Stranded Class 5Fire Alarm Cable |
||

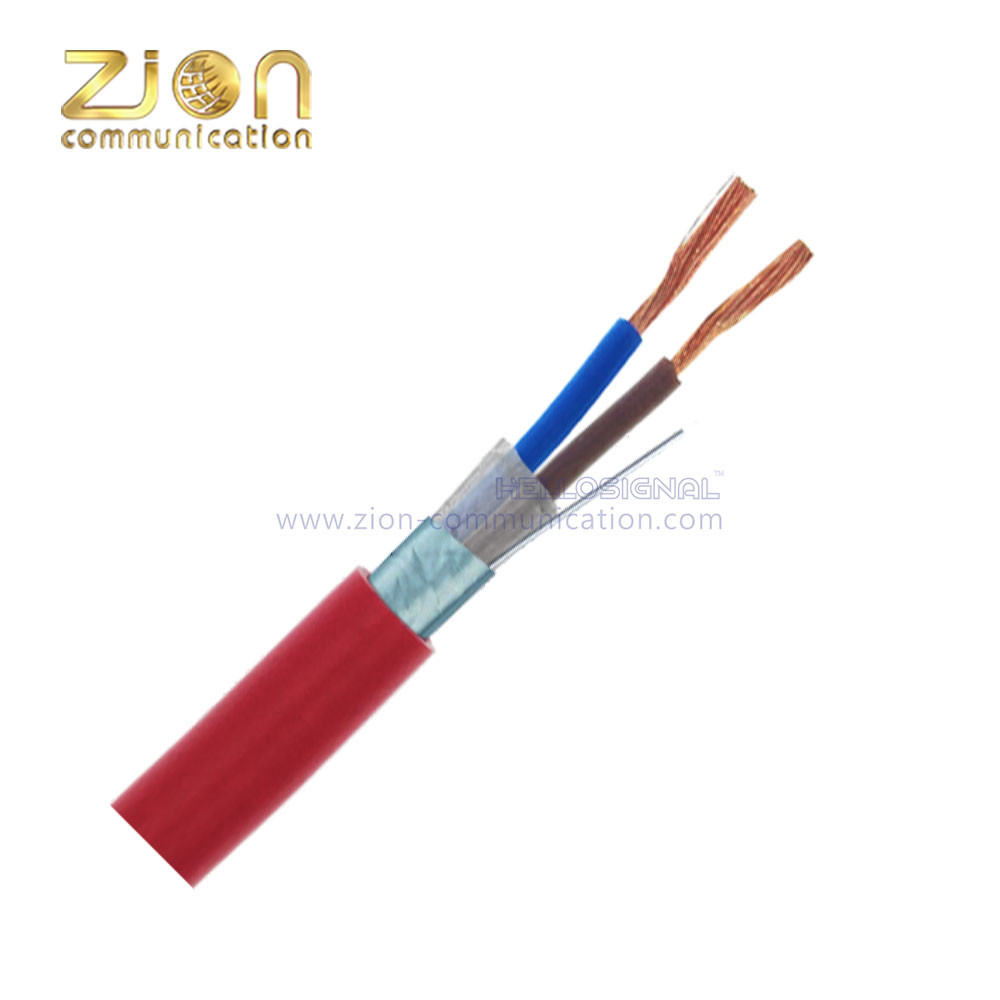

BS6387 Standard Fire alarm Cable Stranded Class 5 AWG Thermoplastic Low Smoke, Halogen Free
| BS6387 Fire alarm Cable AWG | |||||
| Cable Construction : | |||||
| Conductor: | |||||
| Plain annealed copper wire, Stranded Class 5 | |||||
| Insulation: | |||||
| Special mix silicon rubber | |||||
| Shield: | |||||
| Aluminum/ PETP tape over 0.4mm tinned copper drain wire | |||||
| Jacket: | |||||
| Thermoplastic Low Smoke, Halogen Free | |||||
| Color: Red | |||||
| Standard Reference: | |||||
| - BS 6387:2013 Cat. C-W-Z - IEC 60754-1:2014 - BS EN 61034-2:2005 - EN 50200:2015 (Class PH30/PH120) |
|||||
| Electrical Properties : | |||||
| Working Temperature range | -30° C up to +60°C | ||||
| During Installation: | -5° C up to +50°C | ||||
| Insulation Resistance @ 20°C: | > 200 MOhm*Km | ||||
| Test Voltage Core-Core: | 2000 V | ||||
| Test Voltage Core-Screen: | 2000 V | ||||
| Mutual Capacitance: | < 150 nF/km | ||||
| Inductance: | < 1 mH/km | ||||
| Operating Voltage: | 300/500 V | ||||
| Max.resistance of Cond: | |||||
| 18AWG Copper | 23.9Ω/km | ||||
| 16AWG Copper | 14.1Ω/km | ||||
| 14AWG Copper | 8.62 Ω/km | ||||
| ZION CODE |
NAME | CONDUCTOR NOM.DIA: |
DIELECTRIC DIAMETER [MM] |
OUTER DIAMETER [mm] |
|
| 7113201E | ZC0210-BS6387 | 30×0.175mm | 2.0mm | 5.9±0.2mm LSZH | |
| 7113202E | ZC0215-BS6387 | 30×0.230mm | 2.4mm | 6.7±0.2mm LSZH | |
| 7113203E | ZC0225-BS6387 | 49×0.230mm | 3.0mm | 7.8±0.2mm LSZH | |
| 7113207E | ZC0315-BS6387 | 30×0.230mm | 2.4mm | 6.9±0.2mm LSZH | |
