| Conductor: | 24AWG Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | 0.91±0.05 Mm HDPE | Colors: | Blue-White/Blue,Orange-White/Orange |
| Shielded: | PET Foil | Rip Cord: | Cotton Or Fibre |
| Out Jacket: | 5.1±0.2 Mm PE | Messenger: | 1.2mm Or 7×0.4mm GSW |
| Highlight: | CAT 5E Steel Messenger Cable,Communication Steel Messenger Cable |
||

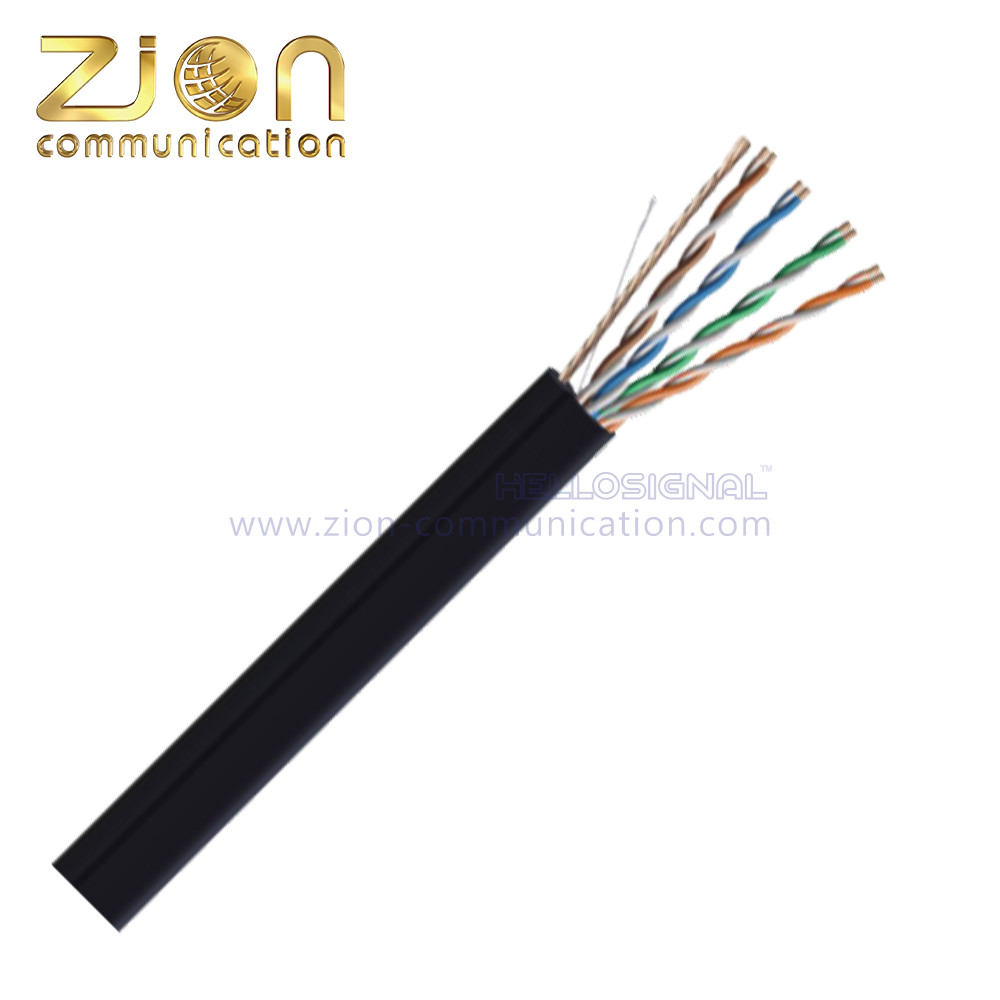

Communication Cables U/UTP CAT 5E BC PE Twisted Pair Steel Messenger Cable
| U/UTP CAT 5E PE with Messenger (NO. 7112131) | |||||||||
| |
|||||||||
| COMPLIANCE (Reference Standard and Certificates) | |||||||||
| · ISO/IEC 11801-1 Ed.1.0 | |||||||||
| · ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | |||||||||
| · UL444,UL1581,UL1666,IEC60332-1,EN50399 | |||||||||
| Application Support | |||||||||
| · 1000BASE-T , 100BASE-T , 10BASE-T | |||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | |||||||||
| Construction | Electrical Characteristics | ||||||||
| Conductor: | 24AWG Solid Bare Copper | DC Resistance | ＜9.38 Ohms/100m @20℃ | ||||||
| Pairs: | 4 Pairs | DC Resistance unbalance | 5% @ 20℃ | ||||||
| Insulation: | 0.91±0.05 mm HDPE | Mutual Capacitance | 5.6 nF/100m | ||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | ||||||
| Green-White/Green,Brown-White/Brown | 100 - 350 MHz : 100±22 Ohms | ||||||||
| Shiled: | PET Foil | Max Frequency | 100MHz | ||||||
| Rip Cord: | Cotton or Fibre | Capacitance Unbalance | 330 pF/100m | ||||||
| Out Jacket: | 5.1±0.2 mm PE | NVP(传输速率) | 67% | ||||||
| Messenger: | 1.2mm or 7×0.4mm GSW | Delay Skew | ≤ 45ns/100m | ||||||
| ※ Conductor from 0.48mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.48mm | |||||||||
| ※ GSW= Galvanized steel wire | |||||||||
| Performance Characteristics | |||||||||
| Frequency | RL (Min.) |
Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) |
PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) | |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m | |
| 1 | 20.0 | 2.2 | 570.0 | 45.0 | 65.0 | 62.0 | 61.0 | 61.0 | |
| 4 | 23.0 | 4.2 | 552.0 | 45.0 | 56.0 | 53.0 | 48.0 | 48.0 | |
| 10 | 25.0 | 6.5 | 545.0 | 45.0 | 50.0 | 47.0 | 41.0 | 41.0 | |
| 16 | 25.0 | 8.4 | 543.0 | 45.0 | 47.0 | 44.0 | 36.0 | 36.0 | |
| 20 | 25.0 | 9.3 | 542.0 | 45.0 | 45.0 | 42.0 | 34.0 | 34.0 | |
| 31.25 | 23.6 | 11.6 | 540.0 | 45.0 | 42.0 | 39.0 | 31.0 | 31.0 | |
| 62.5 | 21.5 | 17.0 | 539.0 | 45.0 | 38.0 | 35.0 | 25.0 | 25.0 | |
| 100 | 20.1 | 22.0 | 538.0 | 45.0 | 35.0 | 32.0 | 21.0 | 21.0 | |
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | |||||||||
| Order Informations | |||||||||
| Marking | HELLOSIGNAL NO.7112131 U/UTP CAT5E 4PR 24AWG PE with Messenger ...305M(1000FT) (or Per customer's request) | ||||||||
