| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | PH120 F/UTP CAT 5E |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 305M, 1000FT, Pull Box, Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | 0.54±0.005mm Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation 1: | 1.07±0.05 Mm HDPE | Insulation 2: | 1.35±0.05 Mm Silicone |
| Colors: | Blue-White/Blue,Orange-White/Orange | Shielded 1: | Fibre Glass Tape |
| Drain Wire: | 0.80±0.005mm TC | Overall Shield: | Al/PET Foil,Foil Face Out |
| Out Jacket: | 7.4±0.2 Mm LSZH | ||
| High Light: | LSZH CAT5E Network Cable,CAT5E Network Cable OEM |
||

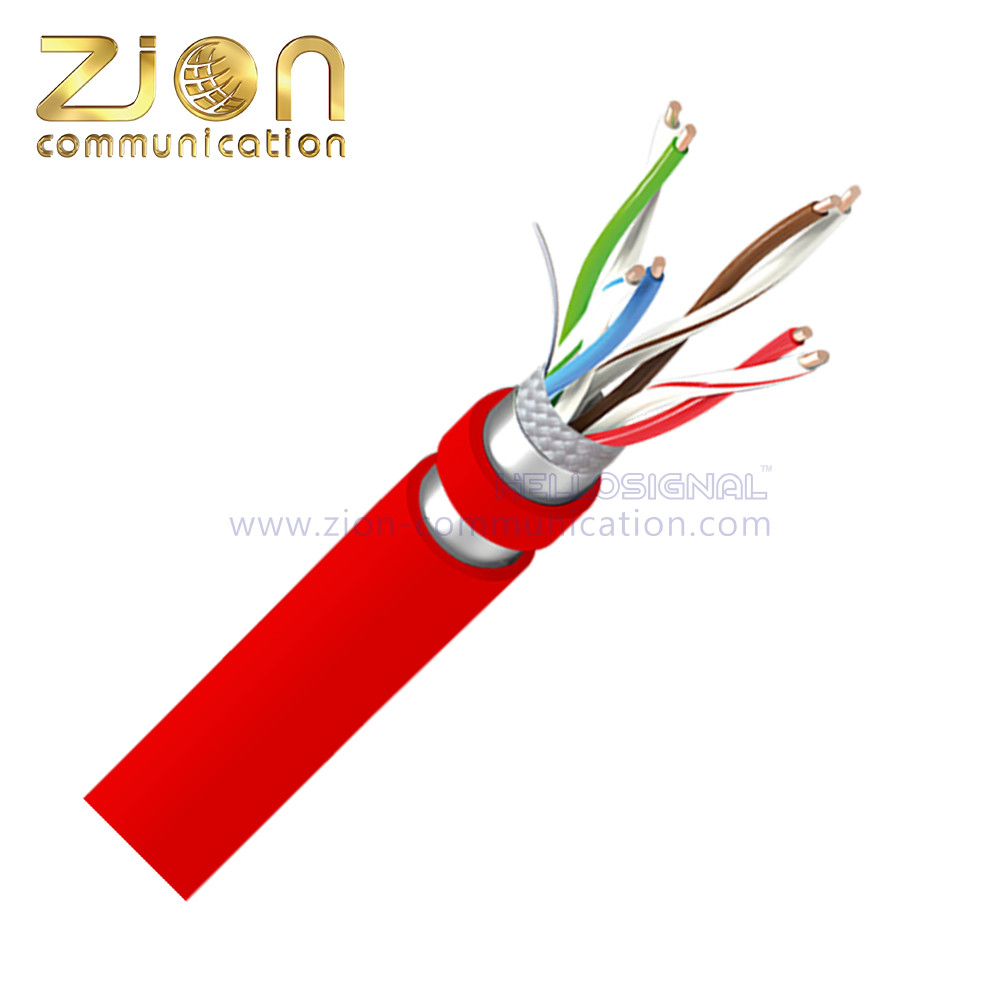

OEM Cat5e PH120 F/UTP Cable Lan Network Cable 4pairs LSZH 305M 1000FT
| PH120 F/UTP CAT 5E -Global Market (PH120F5E) | ||||||||||
| |
||||||||||
| COMPLIANCE (Reference Standard and Certificates) | ||||||||||
| · ISO/IEC 11801-1 Ed.1.0 | ||||||||||
| · ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | ||||||||||
| · UL444,UL1581,UL1666,IEC60332-1,EN50399 | ||||||||||
| Application Support | ||||||||||
| · 1000BASE-T , 100BASE-T , 10BASE-T | ||||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | ||||||||||
| Construction | Electrical Characteristics | |||||||||
| Conductor: | 0.54±0.005mm Solid Bare Copper | DC Resistance | ＜9.38 Ohms/100m @20℃ | |||||||
| Pairs: | 4 Pairs | DC Resistance unbalance | 5% @ 20℃ | |||||||
| Insulation 1: | 1.07±0.05 mm HDPE | Mutual Capacitance | 5.6 nF/100m | |||||||
| Insulation 2: | 1.35±0.05 mm Silicone | Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | 100 - 350 MHz : 100±22 Ohms | ||||||||
| Green-White/Green,Brown-White/Brown | Max Frequency | 100MHz | ||||||||
| Shielded 1: | Fibre Glass Tape | Capacitance Unbalance | 330 pF/100m | |||||||
| Drain Wire: | 0.80±0.005mm TC | NVP(传输速率) | 67% | |||||||
| Overall Shield: | Al/PET Foil,Foil face out | Delay Skew | ≤ 45ns/100m | |||||||
| Out Jacket: | 7.4±0.2 mm LSZH | |||||||||
| Performance Characteristics | ||||||||||
| Frequency | RL (Min.) |
Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) |
PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) | ||
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m | ||
| 1 | 20.0 | 2.2 | 570.0 | 45.0 | 65.0 | 62.0 | 61.0 | 61.0 | ||
| 4 | 23.0 | 4.2 | 552.0 | 45.0 | 56.0 | 53.0 | 48.0 | 48.0 | ||
| 10 | 25.0 | 6.5 | 545.0 | 45.0 | 50.0 | 47.0 | 41.0 | 41.0 | ||
| 16 | 25.0 | 8.4 | 543.0 | 45.0 | 47.0 | 44.0 | 36.0 | 36.0 | ||
| 20 | 25.0 | 9.3 | 542.0 | 45.0 | 45.0 | 42.0 | 34.0 | 34.0 | ||
| 31.25 | 23.6 | 11.6 | 540.0 | 45.0 | 42.0 | 39.0 | 31.0 | 31.0 | ||
| 62.5 | 21.5 | 17.0 | 539.0 | 45.0 | 38.0 | 35.0 | 25.0 | 25.0 | ||
| 100 | 20.1 | 22.0 | 538.0 | 45.0 | 35.0 | 32.0 | 21.0 | 21.0 | ||
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||||
| Order Informations | ||||||||||
| Marking | HELLOSIGNAL PH120 F/UTP CAT5E 4PR ...500M | |||||||||
